PFRA.090 - Schurter
PTC Resettable Fuse 0.9A(hold) 1.8A(trip) 60VDC 40A 1W 7.2s 0.14Ohm Radial 11.7 X 3.1mm Bulk
Technical Details
| Approvals | CSA, UL |
| Case/Package | Radial |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 40A |
| Diameter | 11.7mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 16.7mm |
| Hold Current | 900mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2001-03-01 |
| Lead Diameter | 510µm |
| Lead Free | Lead Free |
| Lead Pitch | 5.8mm |
| Length | 11.7mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 60V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 140mΩ |
| RoHS | Compliant |
| Termination | Radial |
| Time to Trip | 7.2s |
| Trip Current | 1.8A |
| Voltage Rating | 60V |
| Voltage Rating (DC) | 60V |
| Weight | 430.005567mg |
| Width | 3.1mm |
| Working Voltage | 60V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

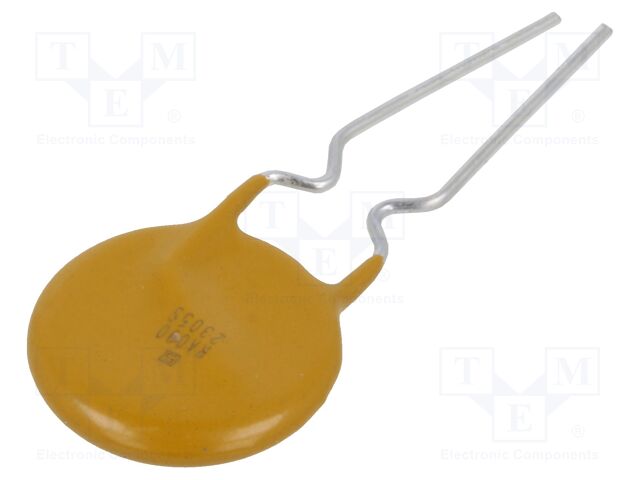

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Bourns | Production | ||
| Bourns | Obsolete | ||
| TE Connectivity / Raychem | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production |
