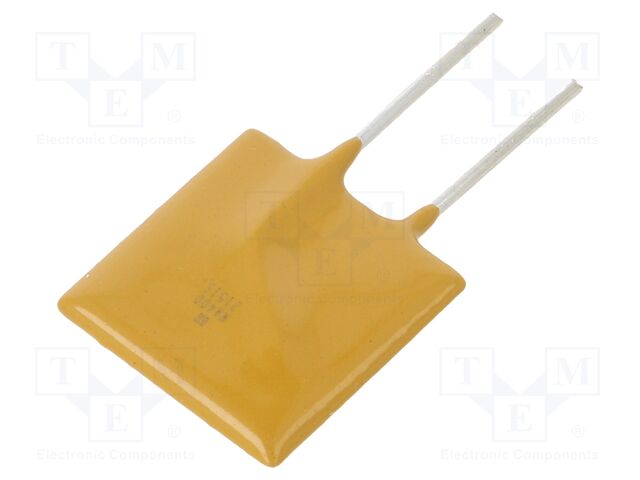

PFRA.400 - Schurter
PTC Resettable Fuse 4A(hold) 8A(trip) 30VDC 40A 2.5W 12.7s 0.01Ohm Radial 14.4 X 3 X 24.8mm Bulk Automotive
Technical Details
| Approvals | CSA, UL |
| Case/Package | Radial |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 40A |
| Diameter | 14.4mm |
| Height | 24.8mm |
| Hold Current | 4A |
| Lead Diameter | 810µm |
| Lead Free | Lead Free |
| Lead Pitch | 5.8mm |
| Length | 14.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 10mΩ |
| RoHS | Compliant |
| Termination | Radial |
| Time to Trip | 12.7s |
| Trip Current | 8A |
| Voltage Rating | 30V |
| Voltage Rating (DC) | 30V |
| Weight | 660.005248mg |
| Width | 3mm |
| Working Voltage | 30V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
