PFSM.100.2 - Schurter

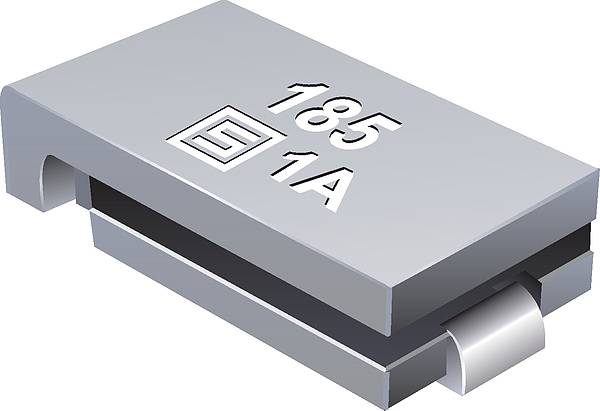

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 30VDC 80A 1.7W 0.5s 0.12Ohm SMD Solder Pad 7.98 X 5.44 X 3mm T/R Automotive
Technical Details
| Approvals | CSA, UL |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Connector Type | SMD/SMT |
| Contact Material | Brass |
| Current Rating | 40A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 3mm |
| Hold Current | 1.1A |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2002-12-01 |
| Lead Free | Lead Free |
| Length | 7.98mm |
| Lifecycle Status | Production |
| Max Current Rating | 80A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Power Dissipation | 1.7W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 120mΩ |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 3.18mm |
| Time to Trip | 500ms |
| Trip Current | 2.2A |
| Weight | 419.998185mg |
| Width | 5.44mm |
| Working Voltage | 30V |
