Circuit Protection  >  TVS Diodes

Semtech - RCLAMP0821P.TCT

RCLAMP0821P.TCT - Semtech

RCLAMP Series 25 V 0.3 pF Ultra-Low Capacitance 1-Line ESD Protection SLP-1006P2

 Datasheets

Technical Details

Breakdown Voltage 10V
Capacitance 300fF
China RoHS Compliant
Clamping Voltage 25V
Composition Zener
Country of Origin Mainland China
Direction Bidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2007-08-30
Lead Free Lead Free
Leakage Current 1µA
Lifecycle Status Production
Max Breakdown Voltage 10V
Max Operating Temperature 125°C
Max Reverse Leakage Current 1µA
Min Breakdown Voltage 10V
Min Operating Temperature -55°C
Mount Surface Mount
Number of Bidirectional Channels 1
Number of Channels 1
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Packaging Tape & Reel (TR)
Peak Pulse Current 4A
Peak Pulse Power 100W
Polarity Bidirectional
Power Line Protection No
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 10V
Reverse Standoff Voltage 8V
RoHS Compliant
Schedule B 8536300000, 8541100050, 8541100050|8541100050, 8541100050|8541100050|8541100050
Test Current 1mA

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

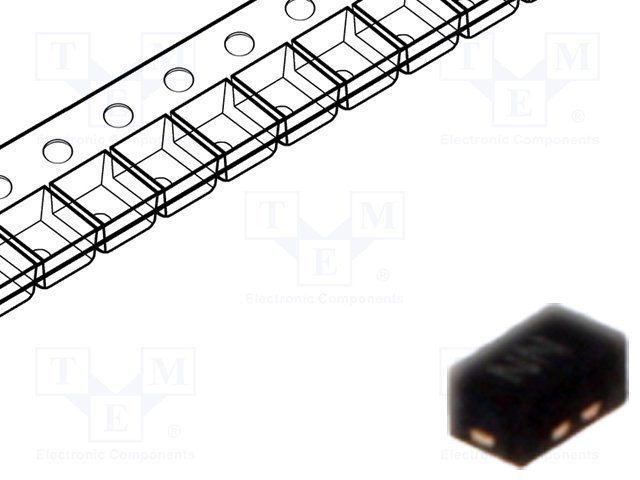

Semtech RCLAMP0821P.TCT | TME

TME

Datasheets

 Rochester Electronics
 Verical
 Arrow Electronics

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Semtech
RCLAMP0521PATCT
Production
Semtech
RCLAMP1521P.TCT
Production
Littelfuse
SP1007-01WTG
Obsolete
onsemi
CM1242-33CP
Obsolete
Littelfuse
XGD10402KR
Production
Littelfuse
XGD10603NR
Production
Littelfuse
XGD10603MR
Production
Infineon
ESD105B102ELSE6327XTSA1
Obsolete
Diodes Inc.
D5V0L1B2LP-7B
Production
Semtech
UCLAMP0511PQTCT
Production

See more alternatives See less alternatives
