SDC15.TCT - Semtech
SDC Series 21.2 V 120 pF Uni-Directional Surface Mount TVS Diode Array - SOT-23
Technical Details
| Breakdown Voltage | 15V |
| Capacitance | 120pF |
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 21.2V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Depth | 1.3mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Cathode |
| ESD Protection | Yes |
| Height | 950µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1995-01-01 |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 16.4V |
| Max Operating Temperature | 125°C |
| Max Reverse Leakage Current | 100nA |
| Min Breakdown Voltage | 14.3V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Peak Pulse Current | 10A |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 100nA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Power Rating | 300W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 14.3V |
| Reverse Standoff Voltage | 12.8V |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Test Current | 1mA |
| Voltage Rating (DC) | 12V |
| Width | 1.3mm |
| Working Voltage | 12.8V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

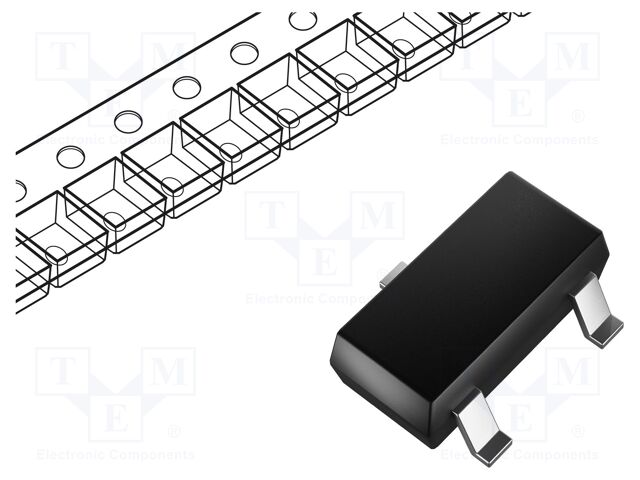

Images
