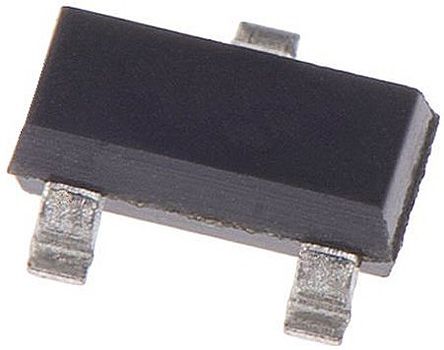

SM12.TCT - Semtech
SM Series 19 V 120 pF Uni-Directional/Bi-Directional SMT TVS Diode Array SOT-23
Technical Details
| Breakdown Voltage | 13.3V |
| Capacitance | 150pF |
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 19V |
| Composition | Zener |
| Depth | 1.3mm |
| Direction | Bidirectional |
| Element Configuration | Common Anode |
| ESD Protection | Yes |
| Height | 950µm |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 13.3V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 300W |
| Max Reverse Leakage Current | 1µA |
| Min Breakdown Voltage | 13.3V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 2 |
| Operating Supply Voltage | 12V |
| Packaging | Cut Tape |
| Peak Pulse Current | 12A |
| Peak Pulse Power | 300W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 300W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 13.3V |
| Reverse Standoff Voltage | 12V |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 12V |
| Width | 1.3mm |
| Working Voltage | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

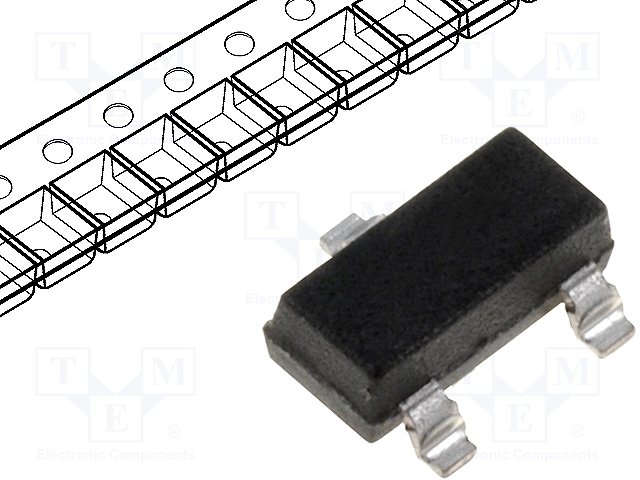

TME
