Circuit Protection > TVS Diodes

SR05.TCT - Semtech

SR Series 20 V 6 pF SMT RailClamp® Low Capacitance TVS Diode Array - SOT-143

Technical Details

Breakdown Voltage	6V
Capacitance	6pF
Case/Package	SOT-143
China RoHS	Compliant
Clamping Voltage	20V
Depth	1.4mm
Direction	Unidirectional
Element Configuration	Dual
ESD Protection	Yes
Height	1.22mm
Lead Free	Lead Free
Leakage Current	5µA
Length	3.04mm
Lifecycle Status	Production
Max Breakdown Voltage	6V
Max Junction Temperature (Tj)	125°C
Max Operating Temperature	125°C
Max Power Dissipation	500W
Max Reverse Leakage Current	5µA
Min Breakdown Voltage	6V
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Bidirectional Channels	2
Number of Channels	2
Number of Elements	1
Number of Pins	4
Number of Terminals	4
Operating Supply Voltage	5V
Packaging	Cut Tape
Peak Pulse Current	25A
Peak Pulse Power	500W
Polarity	Unidirectional
Power Line Protection	Yes
Power Rating	500W
Radiation Hardening	No
REACH SVHC	Yes
Reverse Breakdown Voltage	6V
Reverse Standoff Voltage	5V
RoHS	Compliant
Schedule B	8542390000
Test Current	1mA
Voltage Rating (DC)	5V
Width	1.4mm
Working Voltage	5V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Semtech SR05.TCT | TME

TME

Datasheets

Lifecycle Status Indicator

Production

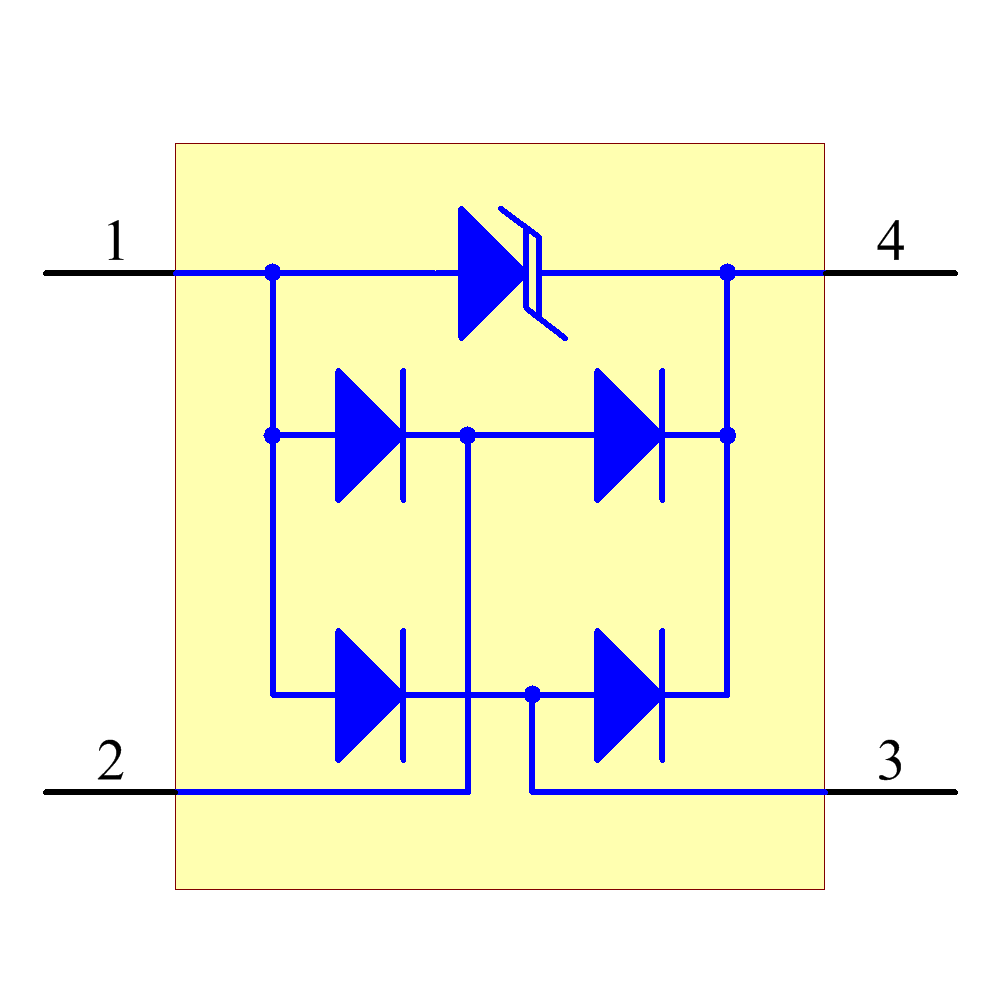

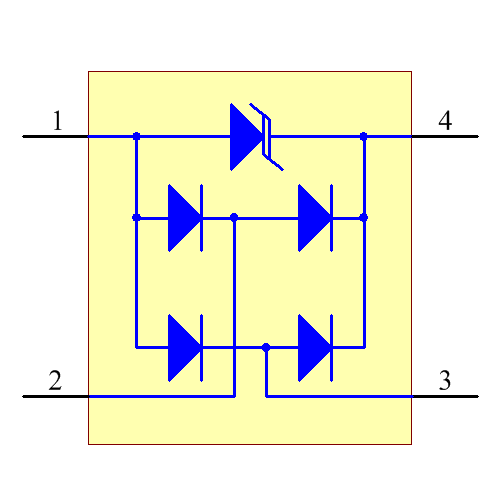

Symbol

SR05.TCT Symbol - Semtech

SR05.TCT Symbol - Semtech

SR05.TCT Symbol - Semtech

SR05.TCT Symbol - Semtech

‹ ›

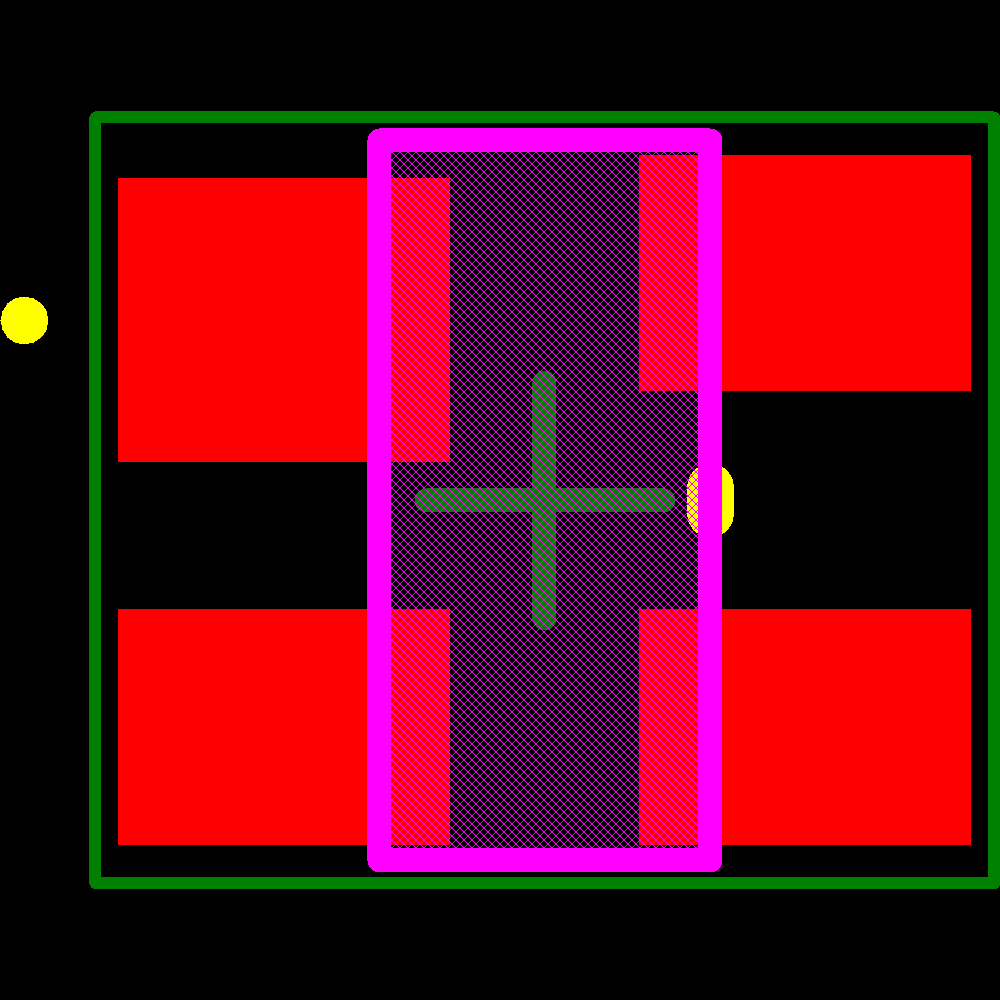

Footprint
