SR2.8.TCT - Semtech
SR Series 8.5 V 5 pF SMT RailClamp® Low Capacitance TVS Diode Array - SOT-143
Technical Details
| Breakdown Voltage | 3V |
| Capacitance | 5pF |
| Case/Package | SOT-143 |
| China RoHS | Compliant |
| Clamping Voltage | 8.5V |
| Depth | 1.4mm |
| Direction | Unidirectional |
| Element Configuration | Dual |
| ESD Protection | Yes |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 3.04mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 200W |
| Max Reverse Leakage Current | 1µA |
| Min Breakdown Voltage | 3V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Operating Supply Voltage | 2.8V |
| Packaging | Cut Tape |
| Peak Pulse Current | 14A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 2.8V |
| Reverse Standoff Voltage | 2.8V |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Test Current | 50mA |
| Width | 1.4mm |
| Working Voltage | 2.8V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

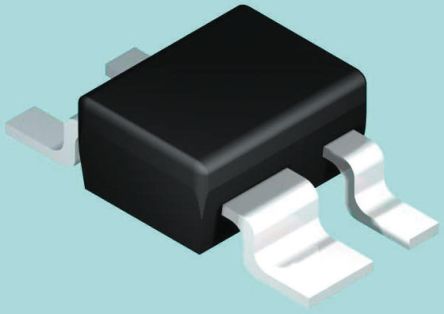

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Semtech | Obsolete | ||
| Comchip | Obsolete | ||
| Diodes Inc. | Production | ||
| Protek Devices | Production | ||
| Littelfuse | Production | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| Semtech | Production | ||
| Alpha & Omega Semiconductor | Obsolete | ||
| Alpha & Omega Semiconductor | Obsolete |
