Circuit Protection > TVS Diodes

SRV05-4.TCT - Semtech

SRV Series 17.5 V 3 pF SMT RailClamp® Low Capacitance TVS Diode Array SOT-23-6

Technical Details

Breakdown Voltage	6V
Capacitance	5pF
Case/Package	SOT-23
China RoHS	Compliant
Clamping Voltage	12.5V
Country of Origin	Mainland China
Current	5A
Depth	1.6mm
Direction	Unidirectional
Export Control Classification Number (ECCN) Code	EAR99
ESD Protection	Yes
Height	1.15mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Introduction Date	2002-08-22
Lead Free	Lead Free
Leakage Current	5µA
Length	2.9mm
Lifecycle Status	Production
Max Breakdown Voltage	6V
Max Operating Temperature	125°C
Max Power Dissipation	300W
Max Reverse Leakage Current	5µA
Min Breakdown Voltage	6V
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Bidirectional Channels	4
Number of Channels	4
Number of Elements	1
Number of Pins	6
Number of Terminals	6
Operating Supply Voltage	5V
Packaging	Cut Tape
Peak Pulse Current	12A
Peak Pulse Power	300W
Polarity	Unidirectional
Power Line Protection	Yes
Power Rating	300W
Radiation Hardening	No
REACH SVHC	Yes
Reverse Breakdown Voltage	6V
Reverse Standoff Voltage	5V
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Test Current	1mA
Voltage	5V
Voltage Rating (DC)	5V
Width	1.6mm
Working Voltage	5V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Semtech SRV05-4.TCT | RS

RS

Datasheets

Lifecycle Status Indicator

Production

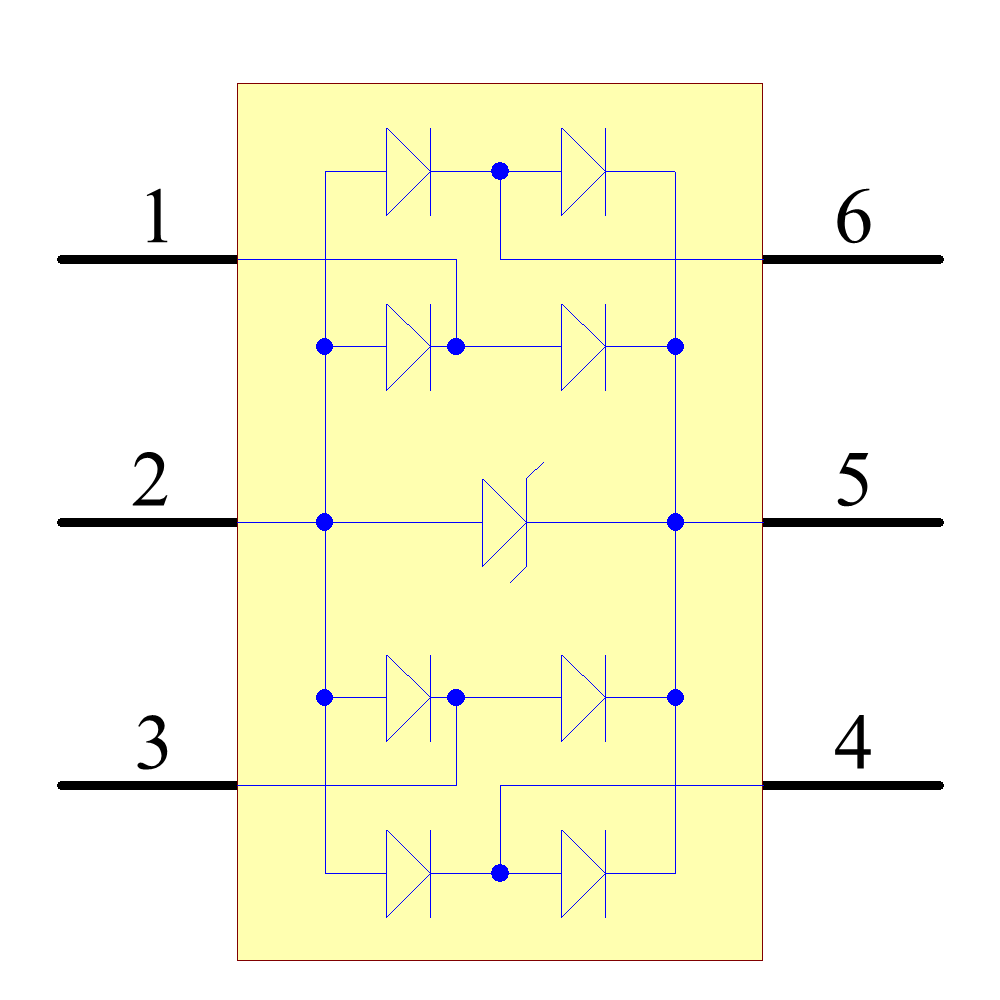

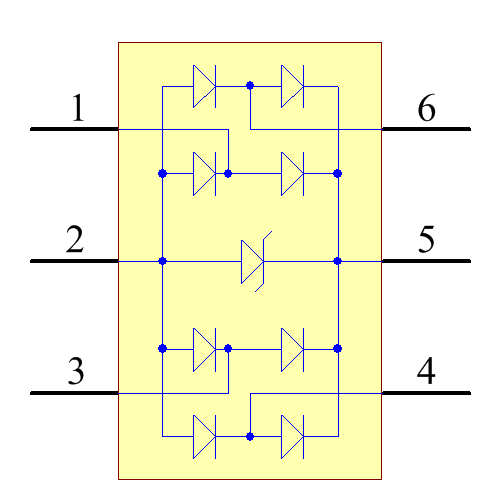

Symbol
