UCLAMP0501P.TCT - Semtech
ESD suppressor /TVS diode VRWM=5V VBR(Min)=6V VC=12.5V IPP=16A SLP1006P2
Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 160pF |
| China RoHS | Compliant |
| Clamping Voltage | 12.5V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Depth | 600µm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-08-03 |
| Lead Free | Lead Free |
| Leakage Current | 5µA |
| Length | 1mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 6V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 200W |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 16A |
| Peak Pulse Power | 200W |
| Peak Reverse Current | 5µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8541100050, 8541100050|8541100050, 8541100050|8541100050|8541100050, 8541100050|8541100050|8541100050|8541100050 |
| Test Current | 1mA |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

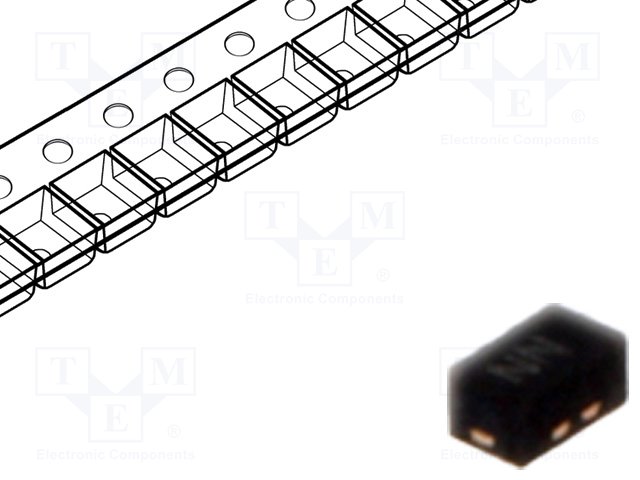

Images
