UCLAMP3301D.TCT - Semtech
TVS DIODE 3.3VWM 9.5VC SOD323 / ESD Suppressor Diode TVS Uni-Dir 3.3V 2-Pin SOD-323 T/R
Technical Details
| Capacitance | 50pF |
| China RoHS | Compliant |
| Clamping Voltage | 9.5V |
| Composition | Zener |
| Depth | 1.28mm |
| Direction | Unidirectional |
| Element Configuration | Single |
| Height | 1.17mm |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 1.64mm |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 100W |
| Min Breakdown Voltage | 3.5V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Packaging | Cut Tape |
| Peak Pulse Current | 10A |
| Peak Pulse Power | 100W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 200W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Voltage Rating (DC) | 3.3V |
| Width | 1.37mm |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

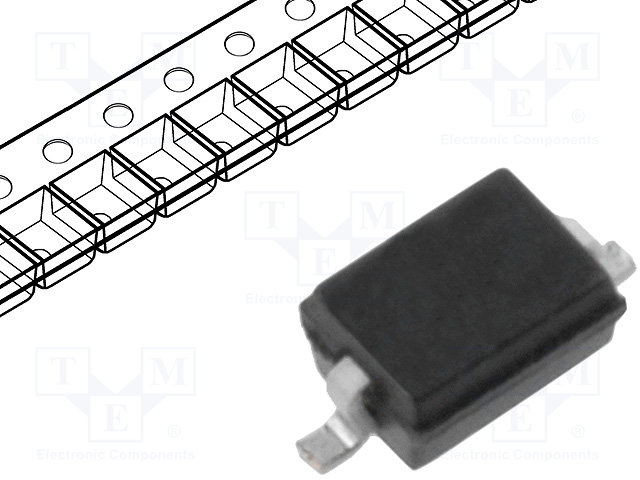

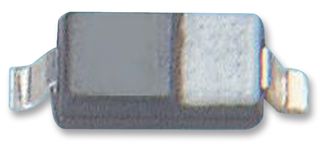

Images
