A2425-10 - Sensata /Crydom
TRIGGER OUTPUT SSR 8541.40.95.00 AC RoHS Compliant Solid State Relay 80C 90V 22.9mm 0.004A
Technical Details
| Approvals | CE, CSA, UL, VDE |
| Current Rating | 25A |
| Data Polarity | AC |
| Depth | 19.8mm |
| Forward Current | 10mA |
| Height | 22.9mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.95.00 |
| Input Current | 4mA |
| Introduction Date | 1998-03-26 |
| Isolation Voltage | 4000Vrms |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Load Current | 25A |
| Max Length | 58.4mm |
| Max Operating Temperature | 80°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Max Voltage Rating (AC) | 280V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 24V |
| Min Supply Voltage (AC) | 24V |
| Mount | Chassis Mount, Panel, Screw |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Operating Supply Voltage | 280V |
| Output Current | 25A |
| REACH SVHC | Yes |
| Relay Type | Relay |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | SPST |
| Turn-On Delay Time | 10ms |
| Voltage Rating (AC) | 280V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

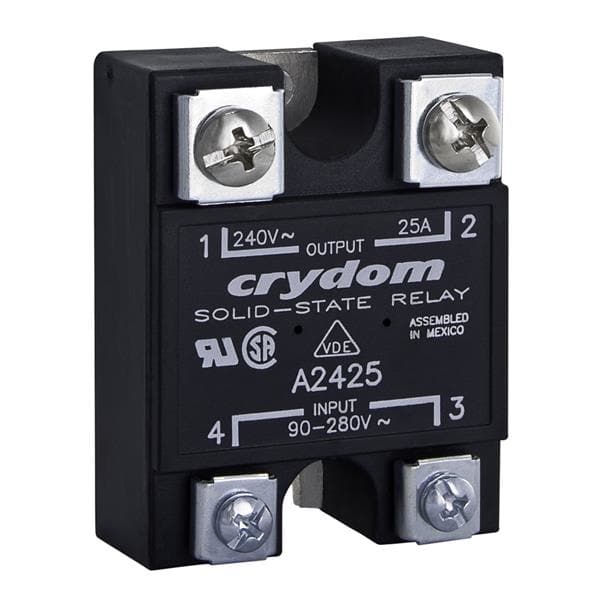

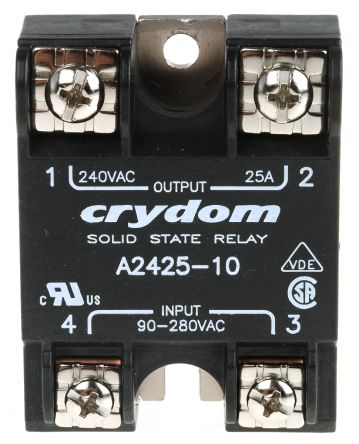

Images
