A2425E - Sensata /Crydom
TRIGGER OUTPUT SSR 8541.40.95.00 Tin (Sn) AC Solid State Relay 80C 18V 33mm 0.024A
Technical Details
| Data Polarity | AC |
| Forward Current | 20mA |
| Height | 22.9mm |
| Input Current | 4mA |
| Isolation Voltage | 4000Vrms |
| Lead Free | Lead Free |
| Load Current | 25A |
| Max Length | 58.4mm |
| Max Operating Temperature | 80°C |
| Max Output Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Max Voltage Rating (AC) | 280V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage (AC) | 24V |
| Mount | Chassis Mount, Panel, Screw |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Operating Supply Voltage | 280V |
| Output Current | 25A |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Relay |
| RoHS | Compliant |
| Schedule B | 8536490080, 8536490080|8536490080, 8536490080|8536490080|8536490080, 8536490080|8536490080|8536490080|8536490080 |
| Termination | Screw |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

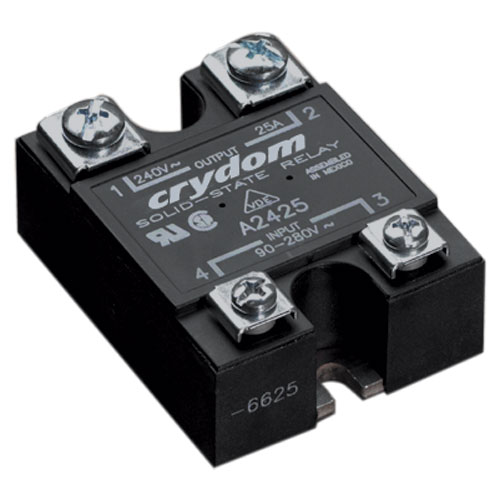

Images
