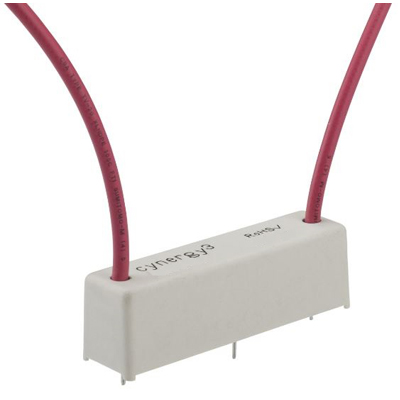

DAR72410F - Sensata /Cynergy3
Relay, Reed Switch, SPNO, Rhodium Cntcts, 24VDC, 10kV Isol., PCB Mnt/Coil Conn./FL HV
Technical Details
| Coil Current | 30.7mA |
| Coil Resistance | 780Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 3A |
| Contact Resistance | 50mΩ |
| Current Rating | 3A |
| Depth | 15.8mm |
| Height | 18.5mm |
| Length | 60mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | PCB, Through Hole |
| Number of Pins | 4 |
| Number of Poles | 1 |
| Operate Time | 3ms |
| Relay Type | Reed |
| Release Time | 2ms |
| RoHS | Compliant |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
