Technical Details
| Coil Current | 25.9mA |
| Coil Resistance | 925Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 2A |
| Contact Resistance | 250Ω |
| Current Rating | 3A |
| Height | 18.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Operate Time | 2ms |
| REACH SVHC | No |
| Relay Type | Reed |
| Release Time | 3ms |
| RoHS | Compliant |
| Switching Current | 2A |
| Switching Voltage | 7kV |
| Termination | PC Pin |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

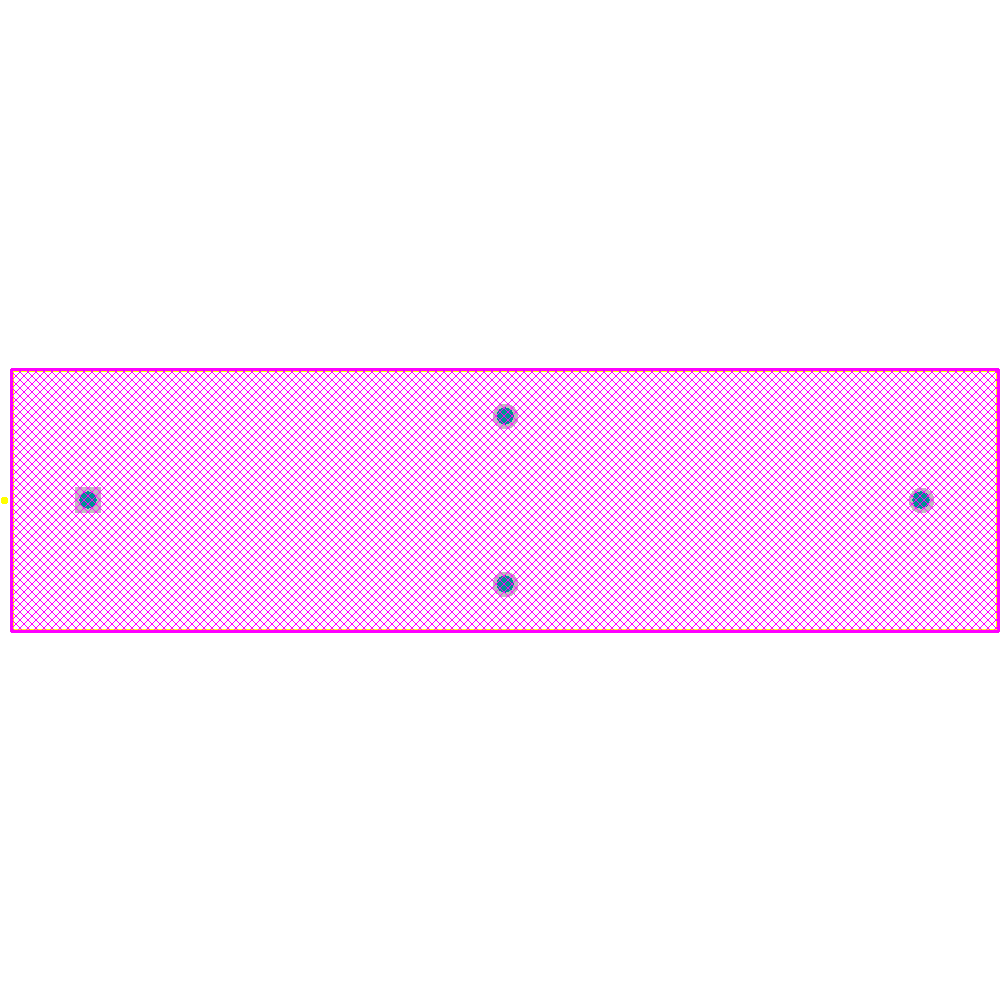

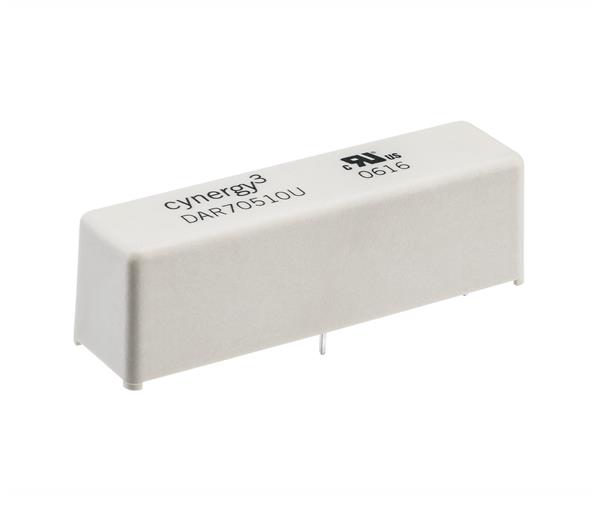

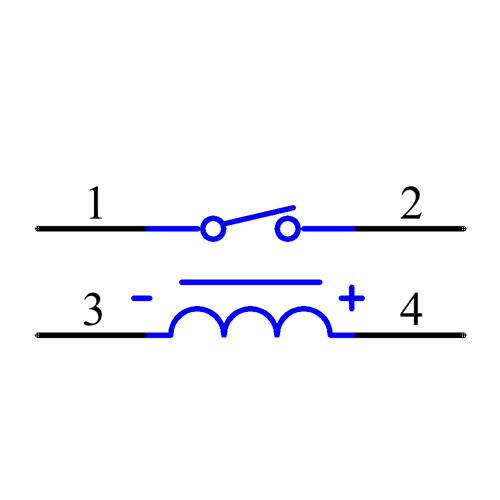

Images
Sager Electronics
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Interstate Connecting Components |
US: 1
|
$ | 91.2353 | 78.8644 | 78.8644 | 78.8644 | 78.8644 | 78.8644 | ||
