Technical Details
| Collector Emitter Breakdown Voltage | 35V |
| Collector Emitter Voltage (VCEO) | 35V |
| Contact Plating | Copper, Tin |
| Dark Current | 100nA |
| Fall Time | 50µs |
| Forward Current | 30mA |
| Height | 3.1mm |
| Input Current | 20mA |
| Introduction Date | 2006-03-29 |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Lifecycle Status | Production |
| Max Collector Current | 400µA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Operating Supply Current | 20mA |
| Output Configuration | Phototransistor |
| Output Type | Phototransistor |
| Output Voltage | 35V |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Response Time | 50µs |
| Reverse Breakdown Voltage | 6V |
| Rise Time | 50µs |
| RoHS | Compliant |
| Sensing Distance | 1.0922mm |
| Wavelength | 930nm |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

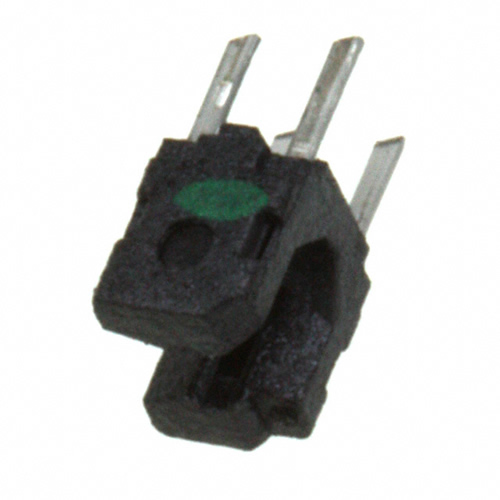

Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 9885
|
$ | 0.604 | 0.604 | 0.4435 | 0.4227 | 0.3651 | 0.3339 | ||
| Mouser |
US: 5909
|
$ | 0.50 | 0.42 | 0.42 | 0.40 | 0.345 | 0.282 | ||
