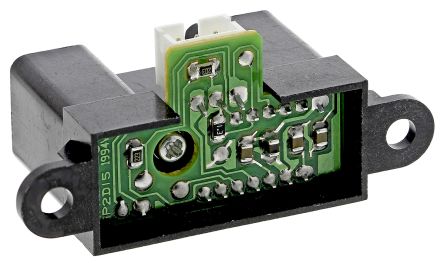

GP2Y0D02YK0F - Sharp
Diffuse Photoelectric Sensor, 700mm Min, 900mm Max, 0.60-5.20V, Rectangular, Panel Mount
Technical Details
| Current Rating | 50mA |
| Forward Current | 50mA |
| Height | 21.6mm |
| Introduction Date | 2000-09-17 |
| Lead Free | Lead Free |
| Length | 29.5mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 60°C |
| Max Supply Voltage | 5.5V |
| Max Supply Voltage (DC) | 5.5V |
| Min Operating Temperature | -10°C |
| Min Supply Voltage | 4.5V |
| Min Supply Voltage (DC) | 4.5V |
| Mount | Surface Mount |
| Number of Pins | 3 |
| Operating Supply Current | 50mA |
| Output Current | 33mA |
| Output Type | Digital |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Response Time | 39ms |
| RoHS | Compliant |
| Sensing Distance | 900mm |
| Sensing Method | Optical |
| Voltage Rating (AC) | 7V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
