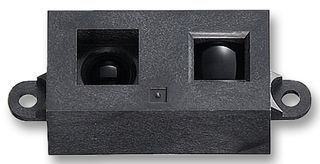

GP2Y3A003K0F - Sharp
Diffuse Photoelectric Sensor, 400mm Min, 3000mm Max, 2-2.60V, Rectangular, Panel Mount
Technical Details
| Current Rating | 30mA |
| Forward Current | 50mA |
| Height | 18mm |
| Introduction Date | 2005-04-28 |
| Lead Free | Lead Free |
| Lead Pitch | 60.5mm |
| Length | 53mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 60°C |
| Max Supply Voltage | 5.5V |
| Max Supply Voltage (DC) | 5.5V |
| Min Operating Temperature | -10°C |
| Min Supply Voltage | 4.5V |
| Min Supply Voltage (DC) | 4.5V |
| Mount | Screw |
| Number of Pins | 9 |
| Operating Supply Current | 50mA |
| Output Configuration | Analog |
| Output Type | ANALOG |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Response Time | 16.5µs |
| RoHS | Compliant |
| Sensing Distance | 3m |
| Viewing Angle | 25° |
| Wavelength | 870nm |
| Width | 53mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Unknown
