Technical Details
| Case/Package | SMD/SMT |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Current Transfer Ratio | 50% |
| Dark Current | 100nA |
| Fall Time | 18µs |
| Forward Current | 50mA |
| Forward Voltage | 1.4V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.80.00 |
| Introduction Date | 2005-08-18 |
| Isolation Voltage | 3750Vrms |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 170mW |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Current per Channel | 50mA |
| Output Voltage | 80V |
| Packaging | Cut Tape |
| Power Dissipation | 170mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Rise Time | 18µs |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

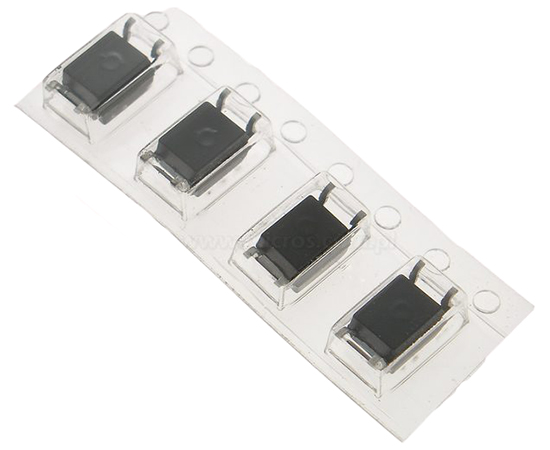

Images

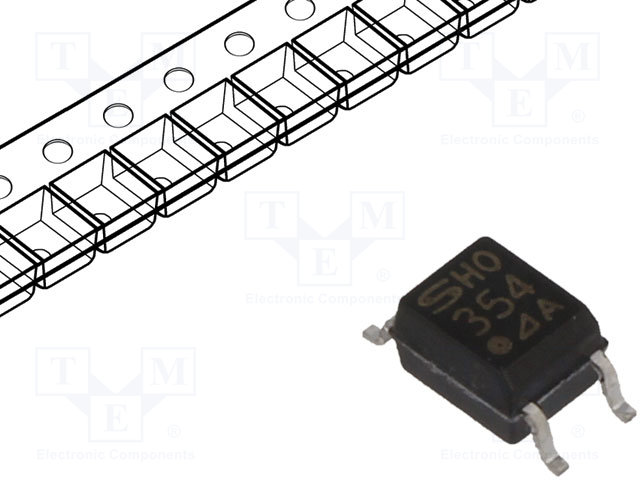

TME
