PC357N3TJ00F - Sharp
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R / OPTOISO 3.75KV TRANS 4-MINI-FLAT
Technical Details
| Approvals | UL |
| Case/Package | SOP |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Current Transfer Ratio | 200% |
| Dark Current | 100nA |
| Fall Time | 18µs |
| Forward Current | 50mA |
| Forward Voltage | 1.4V |
| Input Current | 20mA |
| Isolation Voltage | 3750Vrms |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Lifecycle Status | Obsolete |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 170mW |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Current per Channel | 50mA |
| Output Voltage | 80V |
| Power Dissipation | 170mW |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Reverse Breakdown Voltage | 6V |
| Rise Time | 18µs |
| RoHS | Compliant |
| Voltage | 6V |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Unknown

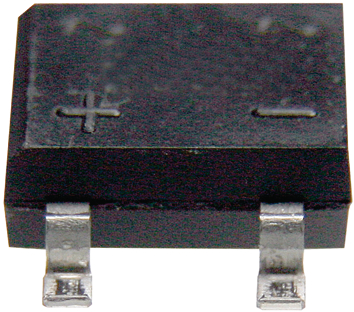

Images
