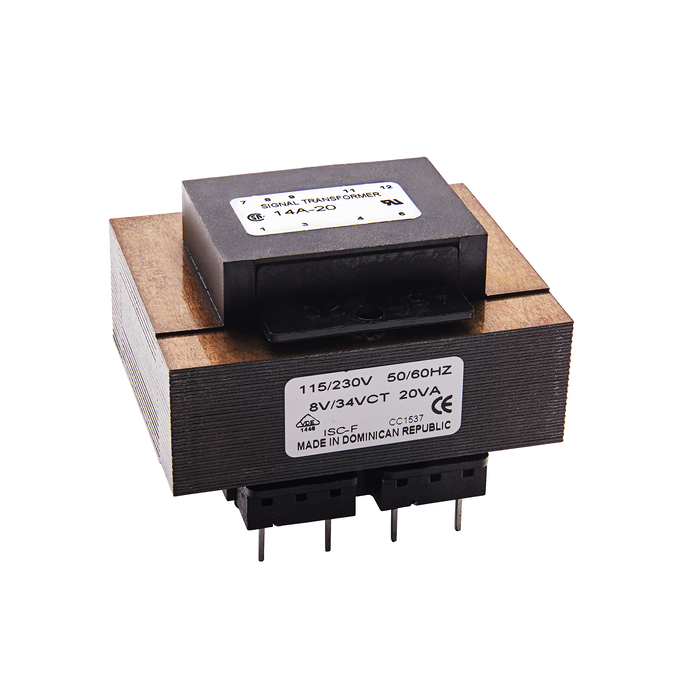

Signal Transformer - 14A-20-20

14A-20-20 - Signal Transformer

Split Bobbin Power Transformer, 20Va |SIGNAL TRANSFORMER 14A-20-20

 Datasheets

Technical Details

Approvals CSA, UL, VDE
Export Control Classification Number (ECCN) Code EAR99
Frequency 60Hz
Height 41.3mm
Height - Seated (Max) 41.3mm
Harmonized Tariff Schedule (HTS) Code 8504.31.40.35
Isolation Voltage 4000Vrms
Lead Free Lead Free
Length 57.2mm
Max Output Current 1A
Max Power Dissipation 20W
Mount Through Hole
Number of Contacts 8
Output Power 20W
Primary Winding(s) Dual
RoHS Compliant
Secondary Winding(s) Dual
Termination PC Pin
Weight 408g
Width 47.6mm

Compliance

   RoHS : Unconfirmed

Images

Signal Transformer 14A-20-20 | Sager Electronics

Sager Electronics

Datasheets

 Master Electronics
 Verical
 DigiKey

Lifecycle Status Indicator

   Unknown

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Hammond
183H20
Production

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Master Electronics
14A-20-20
US: 157
 $ 10.43 9.68 9.48 9.01 9.01
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
14A-20-20
US: 155
 $ 14.3167 12.8874 12.4812 12.4812 12.4812
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
595-1015-ND
DE: 165
 $ 16.5804 14.9445 13.8814 13.444 12.475 12.475
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
14A-20-20
US: 157
 $ 10.43 9.68 9.48 9.01 9.01
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sager Electronics
14A-20-20
US: 0
 $ 9.09 8.82 8.33 8.33
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
14A-20-20
US: 0
 $ 11.173 10.519
 Historical Pricing  Historical Stock Levels
Quantity
Location
