Passive Components > Transformers

14A-20-36 - Signal Transformer

Power Transformer 4000Vrms 20VA 8 Terminal PC Pin Thru-Hole

Technical Details

Approvals	CSA, UL, VDE
Export Control Classification Number (ECCN) Code	EAR99
Frequency	60Hz
Height	41.3mm
Height - Seated (Max)	41.3mm
Harmonized Tariff Schedule (HTS) Code	8504.31.40.35
Isolation Voltage	4000Vrms
Lead Free	Lead Free
Length	57.2mm
Max Output Current	1.12A
Max Power Dissipation	20W
Mount	Through Hole
Number of Contacts	8
Output Power	20W
Primary Winding(s)	Dual
RoHS	Compliant
Secondary Winding(s)	Dual
Termination	PC Pin
Weight	408g
Width	47.6mm

Compliance

RoHS : Unconfirmed

Images

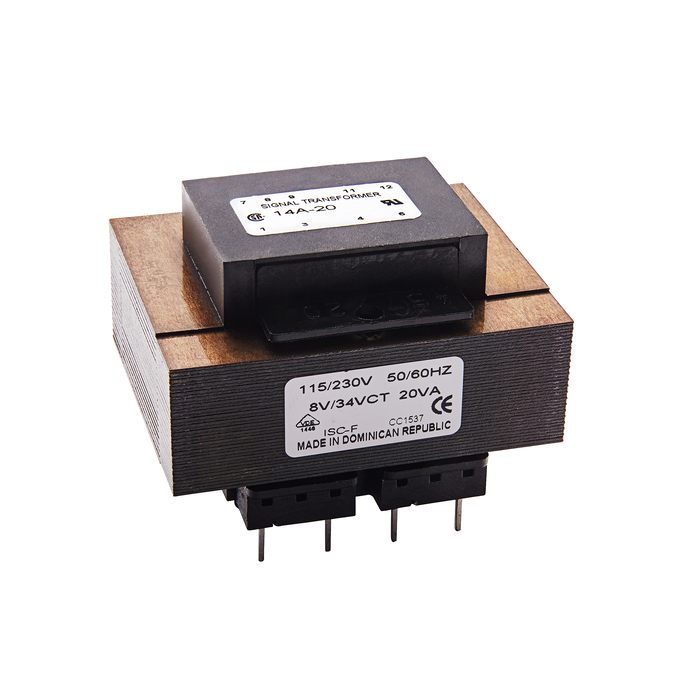

Signal Transformer 14A-20-36 | Sager Electronics

Sager Electronics

Datasheets

Sager Electronics

Master Electronics

Lifecycle Status Indicator

Unknown

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Hammond	183H36	Production

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Sager Electronics

US: 185

$

15.05

15.05

13.91

13.50

11.08

11.08

DigiKey

DE: 100

$

17.5173

15.7754

14.6521

14.19

13.1666

13.1666

Master Electronics

US: 22

$

11.84

10.99

10.75

9.57

9.57

Verical

US: 20

$

15.9133

15.9133

15.9133

15.9133

15.9133

Onlinecomponents.com

US: 22

$

11.84

10.99

10.75

9.57

9.57

Arrow Electronics

US: 0

$

12.806

12.426

11.817

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

NAC Semi

US: 4

$

15.29

15.29

15.29

15.29

15.29

15.29
