BGM113A256V2 - Silicon Lab
BGM113 Wireless Bluetooth Module, PCB, +3 dBm, 2.4 GHz, 256 kB flash, -40 to 85 C, Built-in Antenna
Technical Details
| Ambient Temperature Range High | 85°C |
| Bandwidth | 83.5MHz |
| Case/Package | Module |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Current - Receiving | 8.7mA |
| Current - Transmitting | 8.2mA |
| Data Rate | 1Mbps |
| Height | 2mm |
| Height - Seated (Max) | 2mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Interface | I2C, I2S, IrDA, SMBus, SPI, UART, USART |
| Introduction Date | 2016-03-25 |
| Length | 15.73mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Frequency | 2.4835GHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.8V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.85V |
| Nominal Supply Current | 200mA |
| Number of ADC Channels | 1 |
| Number of Circuits | 1 |
| Number of Digital IO | 14 |
| Number of GPIO | 14 |
| Number of Terminals | 36 |
| Operating Supply Voltage | 3.3V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 800µm |
| Width | 9.15mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

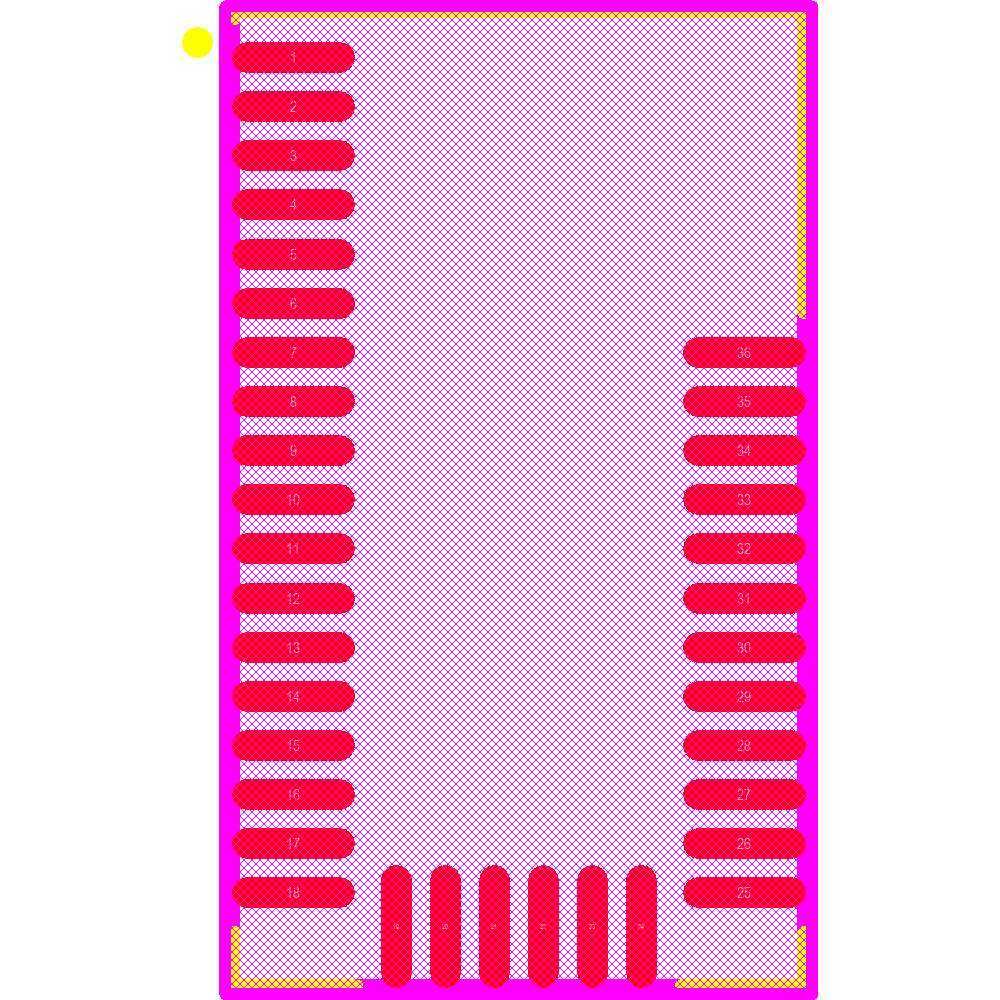

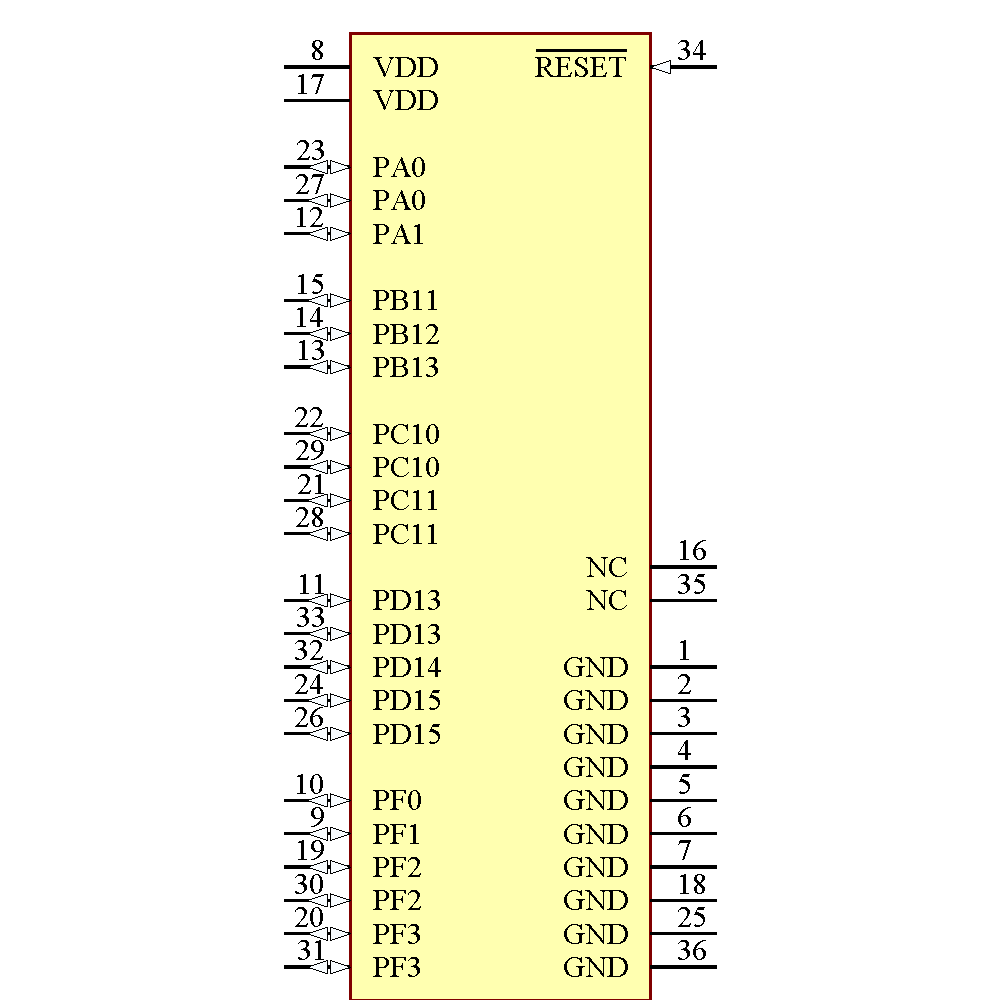

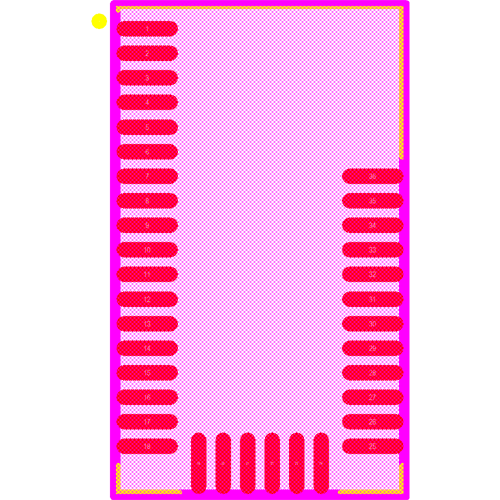

Images
