Technical Details
| Case/Package | QFN |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 25MHz |
| Height - Seated (Max) | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.00.15 |
| Interface | 2-Wire, I2C, SMBus, SPI, UART, USART |
| Introduction Date | 2007-08-13 |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 3 |
| Number of Digital IO | 17 |
| Number of I/Os | 17 |
| Number of Pins | 20 |
| Number of Programmable I/O | 17 |
| Number of Segments | 0 |
| Number of Terminals | 20 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 3V |
| Oscillator Type | Internal |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 768B |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85 |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

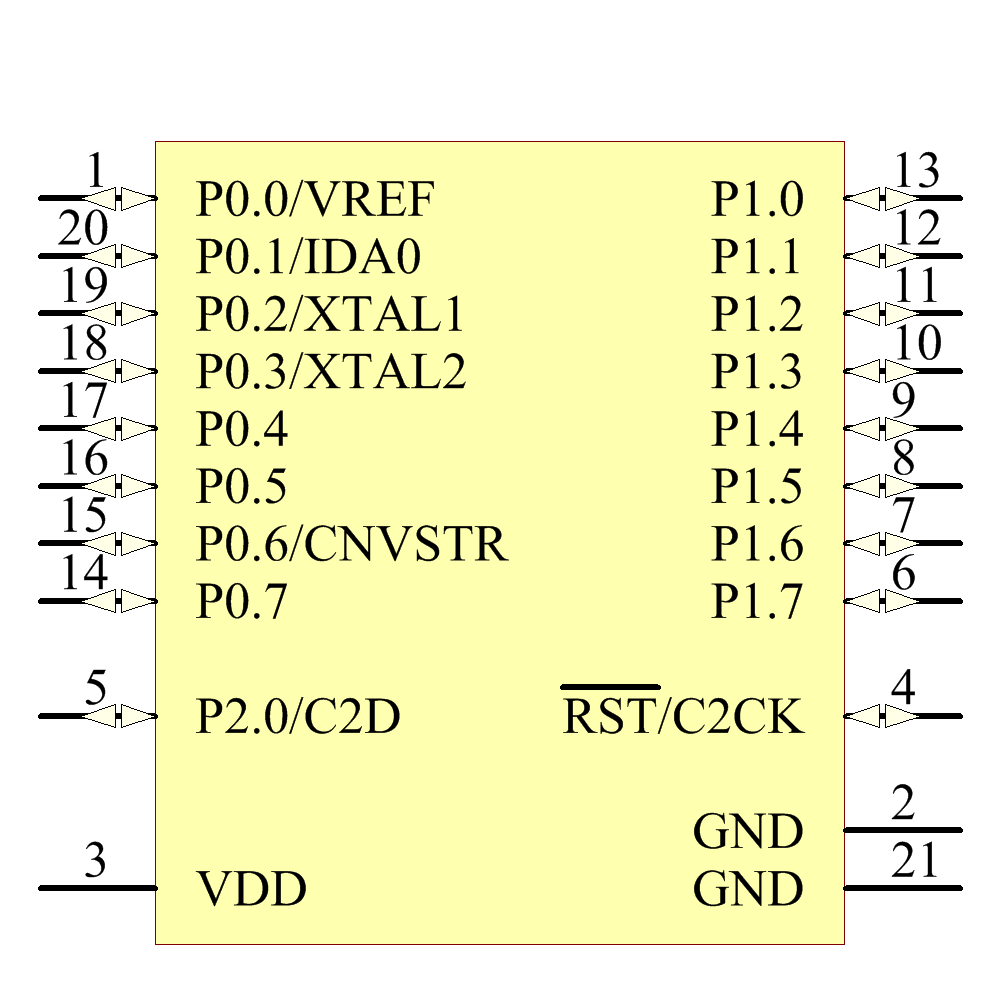

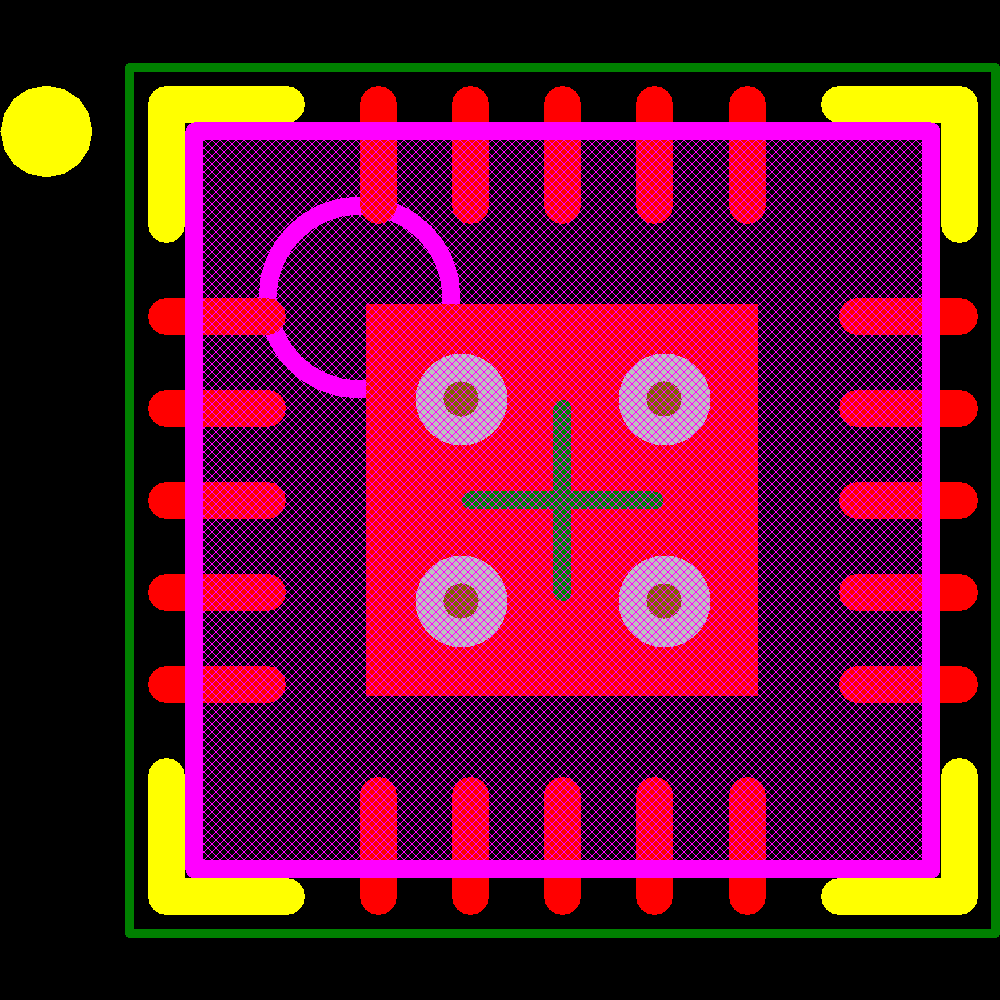

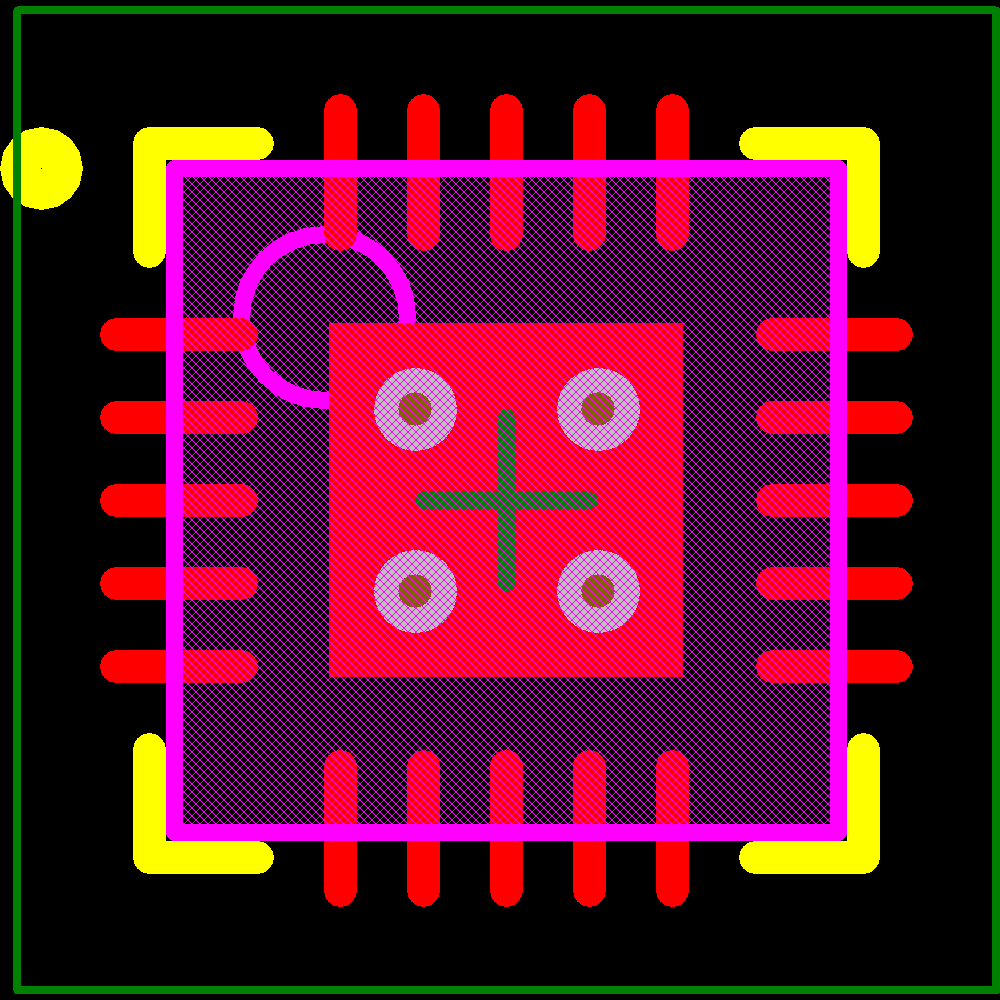

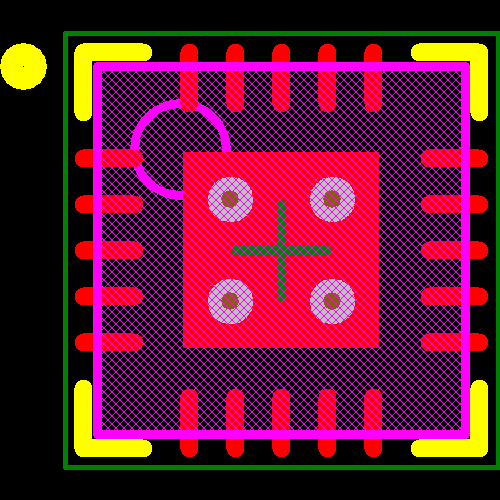

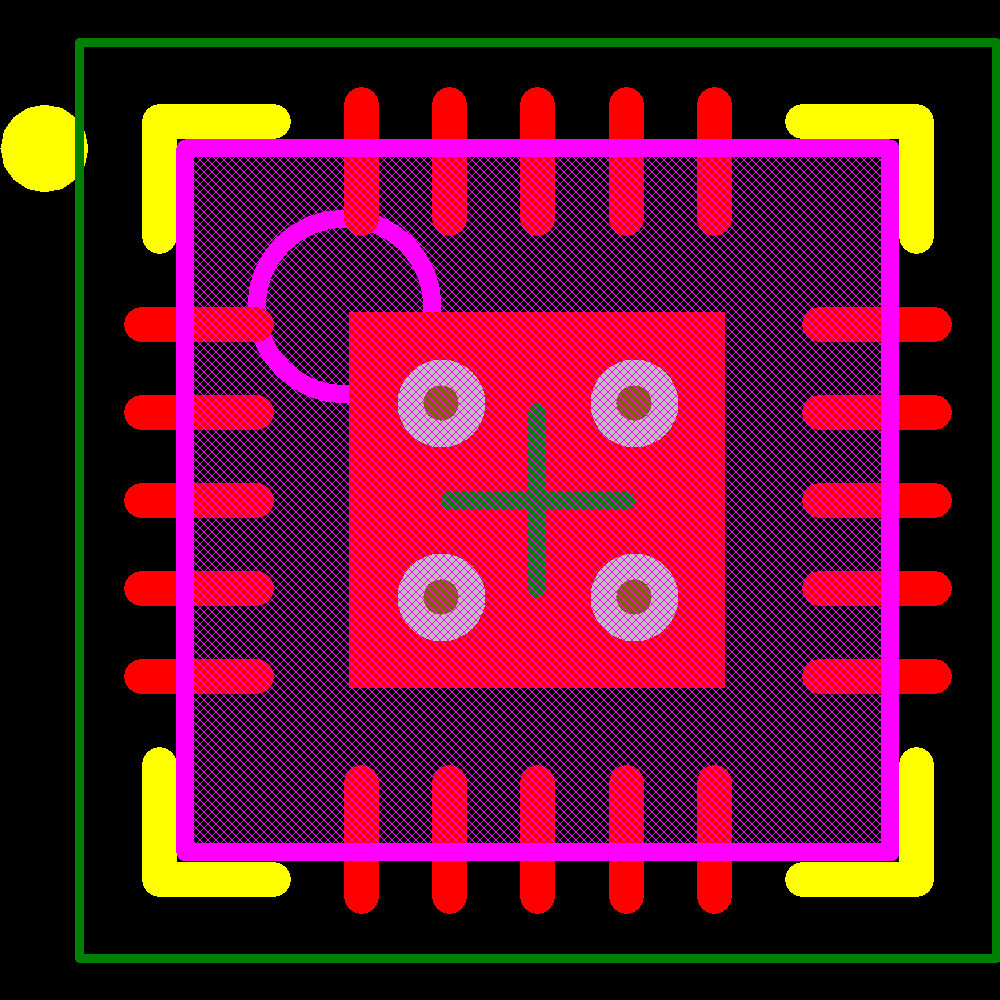

Images
