C8051F399-A-GM - Silicon Lab
MCU 8-bit C8051F39x 8051 CISC 4KB Flash 2.5V/3.3V 20-Pin QFN EP
Technical Details
| Case/Package | QFN |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| EEPROM Memory Size | 0B |
| Flash Memory Size | 4kB |
| Frequency | 50MHz |
| Height | 850µm |
| Height - Seated (Max) | 900µm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.00.15 |
| Interface | SPI, UART |
| Introduction Date | 2012-08-13 |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Frequency | 50MHz |
| Max Operating Temperature | 105°C |
| Max Supply Current | 7.8mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 4kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of Digital IO | 17 |
| Number of I2C Channels | 3 |
| Number of I/Os | 1 |
| Number of Interrupts | 2 |
| Number of Pins | 20 |
| Number of Programmable I/O | 17 |
| Number of PWM Channels | 3 |
| Number of Segments | 0 |
| Number of SPI Channels | 1 |
| Number of Terminals | 20 |
| Number of Timers/Counters | 6 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 3V |
| Oscillator Type | Internal |
| Peripherals | POR, WDT |
| RAM Size | 1kB |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 500µm |
| Watchdog Timer | Yes |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

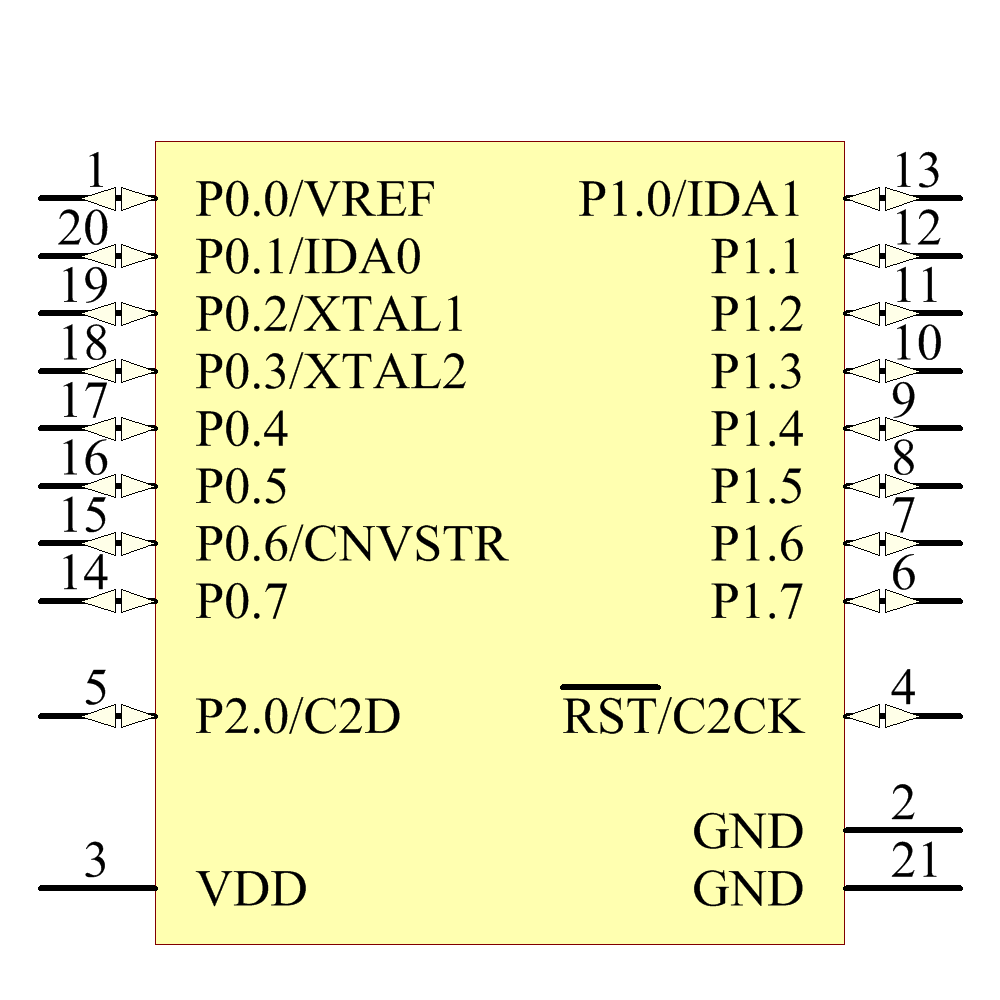

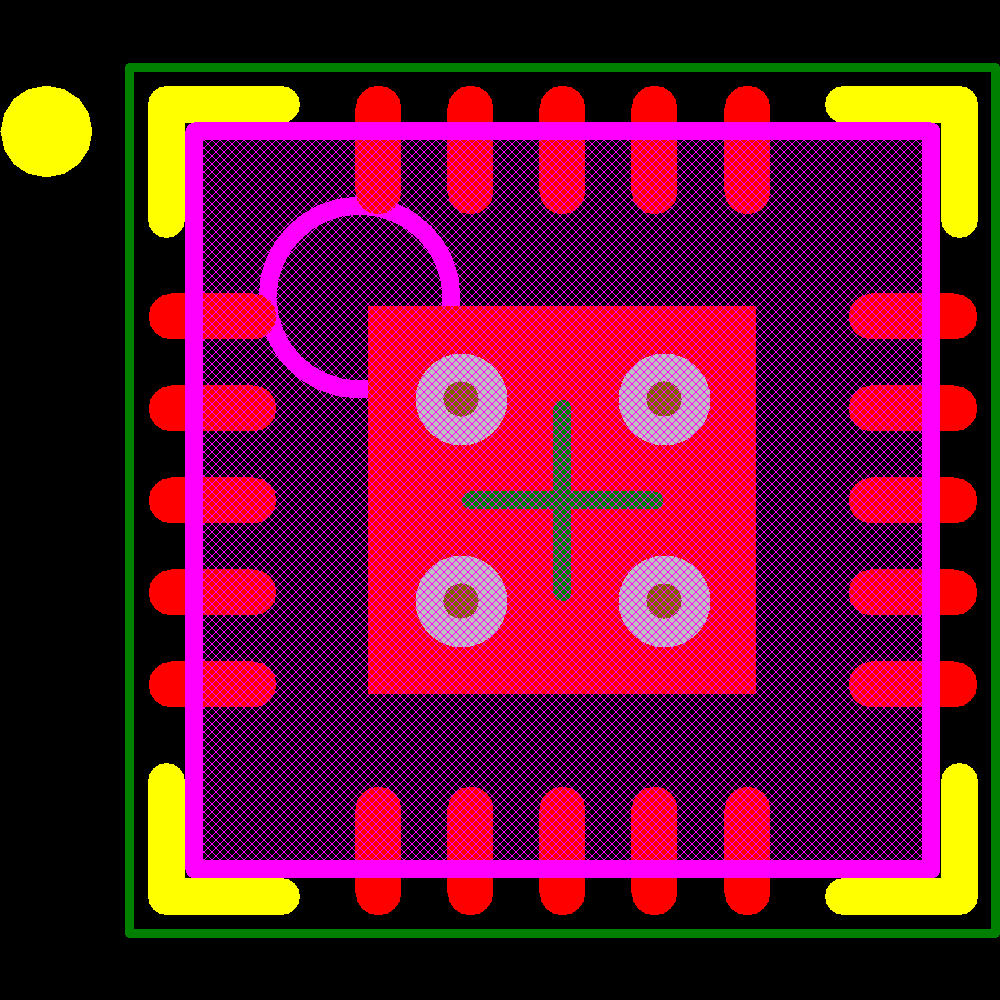

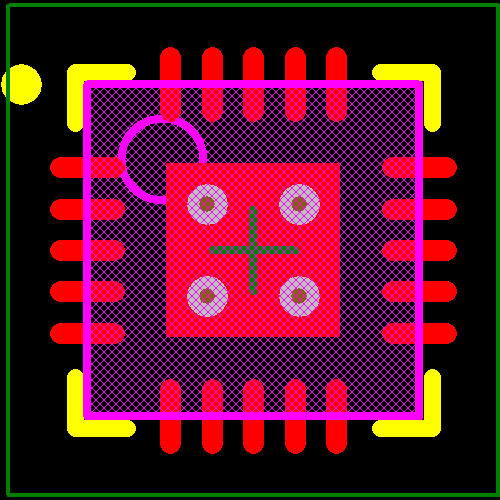

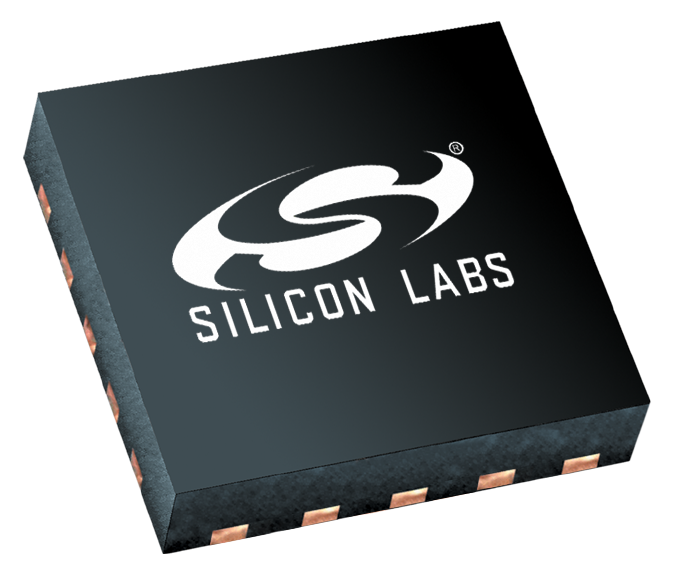

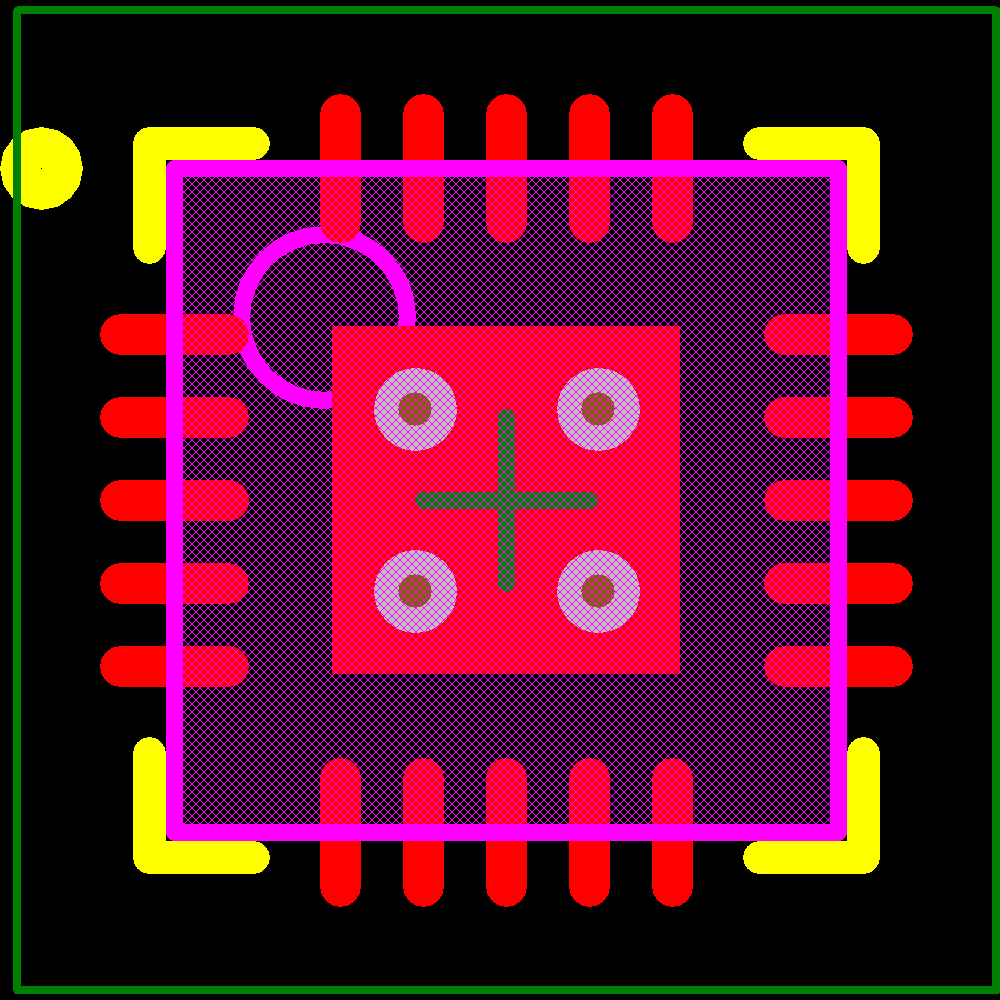

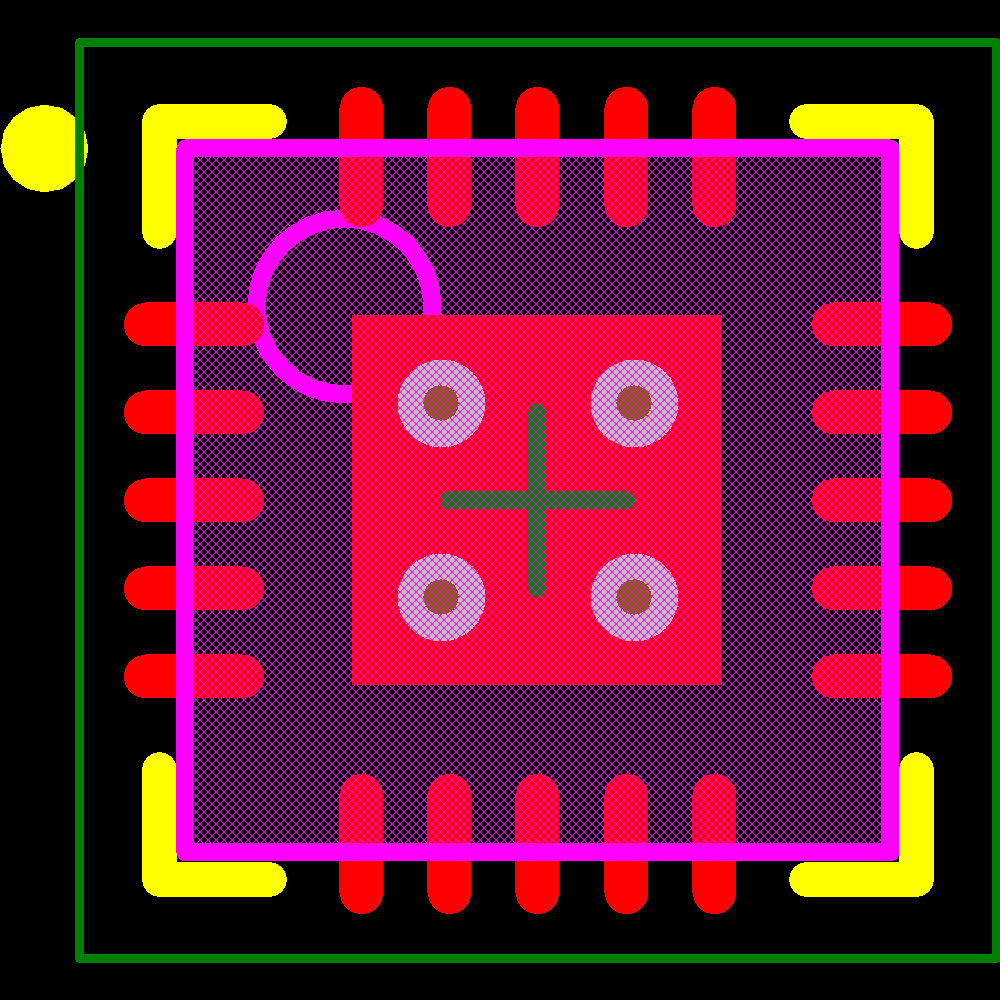

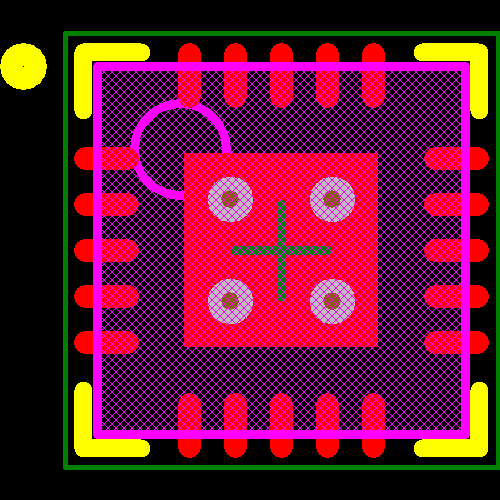

Images
