C8051F571-IM - Silicon Lab
MCU 8-bit 8051 CISC 32KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 40-Pin QFN EP Tube
Technical Details
| ADC Channels (Resolution) | 32-Ch 12-Bit |
| Case/Package | QFN |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| EEPROM Memory Size | 0B |
| Flash Memory Size | 32kB |
| Frequency | 50MHz |
| Height | 850µm |
| Height - Seated (Max) | 900µm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.00.15 |
| Interface | SPI, UART |
| Introduction Date | 2009-11-02 |
| Length | 6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Frequency | 24MHz |
| Max Operating Temperature | 125°C |
| Max Supply Current | 33mA |
| Max Supply Voltage | 2.75V |
| Memory Size | 32kB |
| Memory Type | FLASH |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of ADC Channels | 32 |
| Number of Channels | 6 |
| Number of Digital IO | 33 |
| Number of I2C Channels | 1 |
| Number of I/Os | 3 |
| Number of Interrupts | 2 |
| Number of Pins | 40 |
| Number of Programmable I/O | 33 |
| Number of PWM Channels | 6 |
| Number of Segments | 0 |
| Number of SPI Channels | 1 |
| Number of Terminals | 40 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 2.1V |
| Oscillator Type | Internal |
| Peripherals | POR, WDT |
| Radiation Hardening | No |
| RAM Size | 2.3kB |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Grade | Automotive |
| Terminal Pitch | 500µm |
| Watchdog Timer | Yes |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

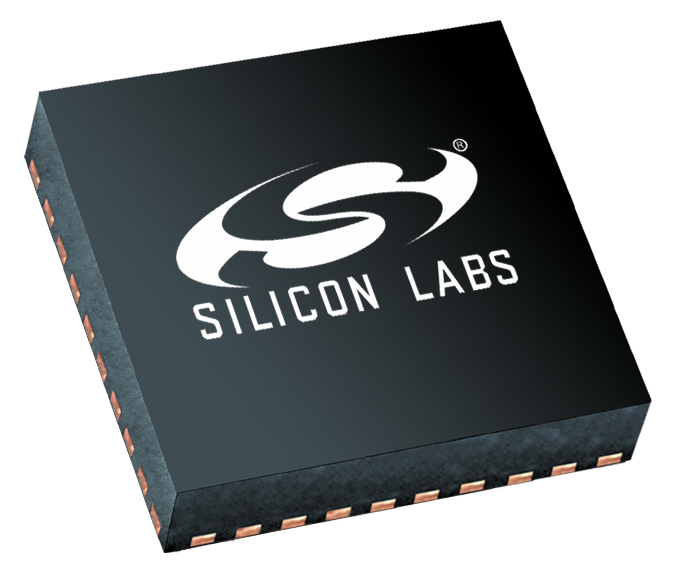

Images
