Integrated Circuits (ICs)  >  Interface ICs  >  UART Interface ICs

Silicon Lab - CP2104-F03-GM

CP2104-F03-GM - Silicon Lab

USB-to-UART 1-CH 576byte FIFO 3.3V Automotive 24-Pin QFN EP Tube

 Datasheets

Technical Details

Ambient Temperature Range High 125°C
Case/Package QFN
China RoHS Compliant
Contact Plating Tin
Data Rate 1.5Mbps
Export Control Classification Number (ECCN) Code 3A991.a.2
EEPROM Memory Size 1kB
FIFO Buffer Size 1.1kB
Height 800µm
Height - Seated (Max) 800µm
Harmonized Tariff Schedule (HTS) Code 8542.31.00.30
Interface UART, USB
Introduction Date 2010-10-21
Length 4mm
Lifecycle Status Production
Manufacturer Lifecycle Status FULL PRODUCTION
Max Frequency 48MHz
Max Operating Temperature 85°C
Max Supply Current 18.5mA
Max Supply Voltage 3.6V
Min Operating Temperature -40°C
Min Supply Voltage 3V
Nominal Supply Current 17mA
Number of Channels 1
Number of Digital IO 4
Number of Pins 24
Number of Terminals 24
Number of Transceivers 1
Operating Supply Current 17mA
Operating Supply Voltage 3.3V
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Temperature Grade Industrial
Terminal Pitch 500µm
Weight 50.008559mg
Width 4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

Silicon Lab CP2104-F03-GM | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

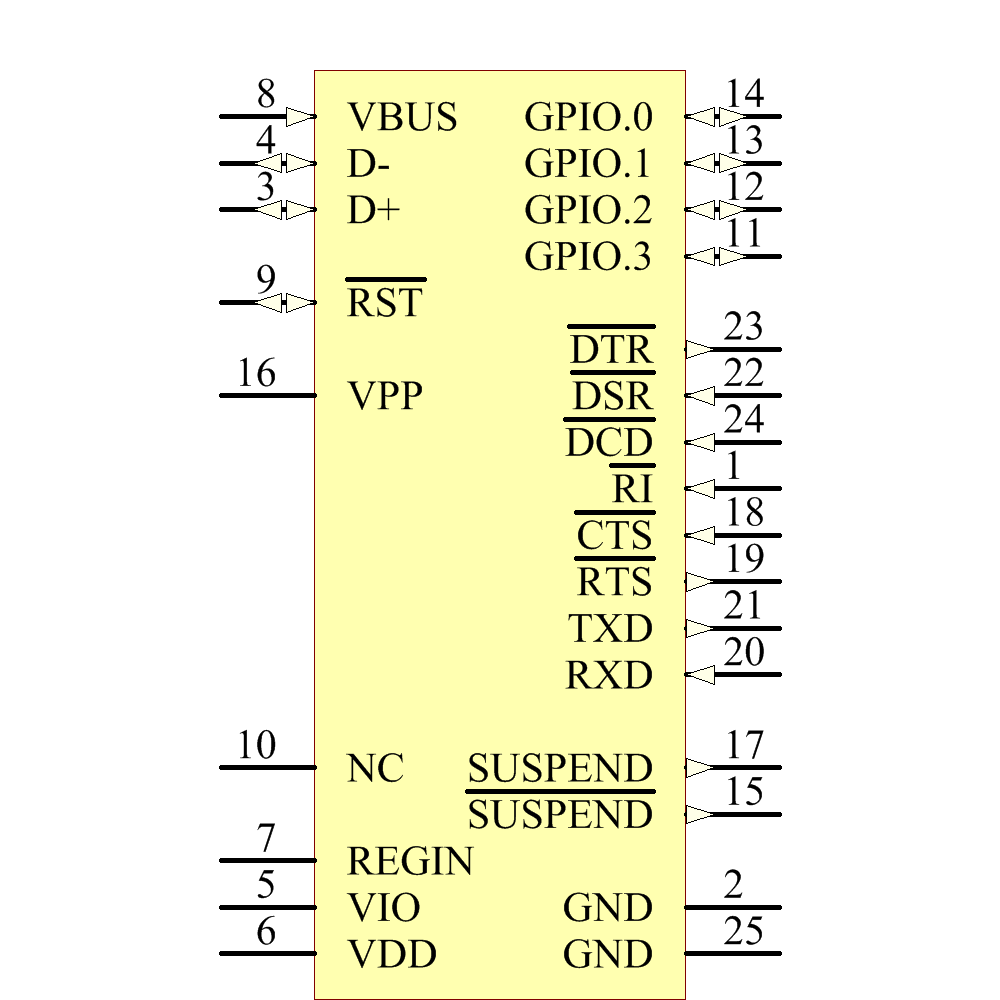

Symbol

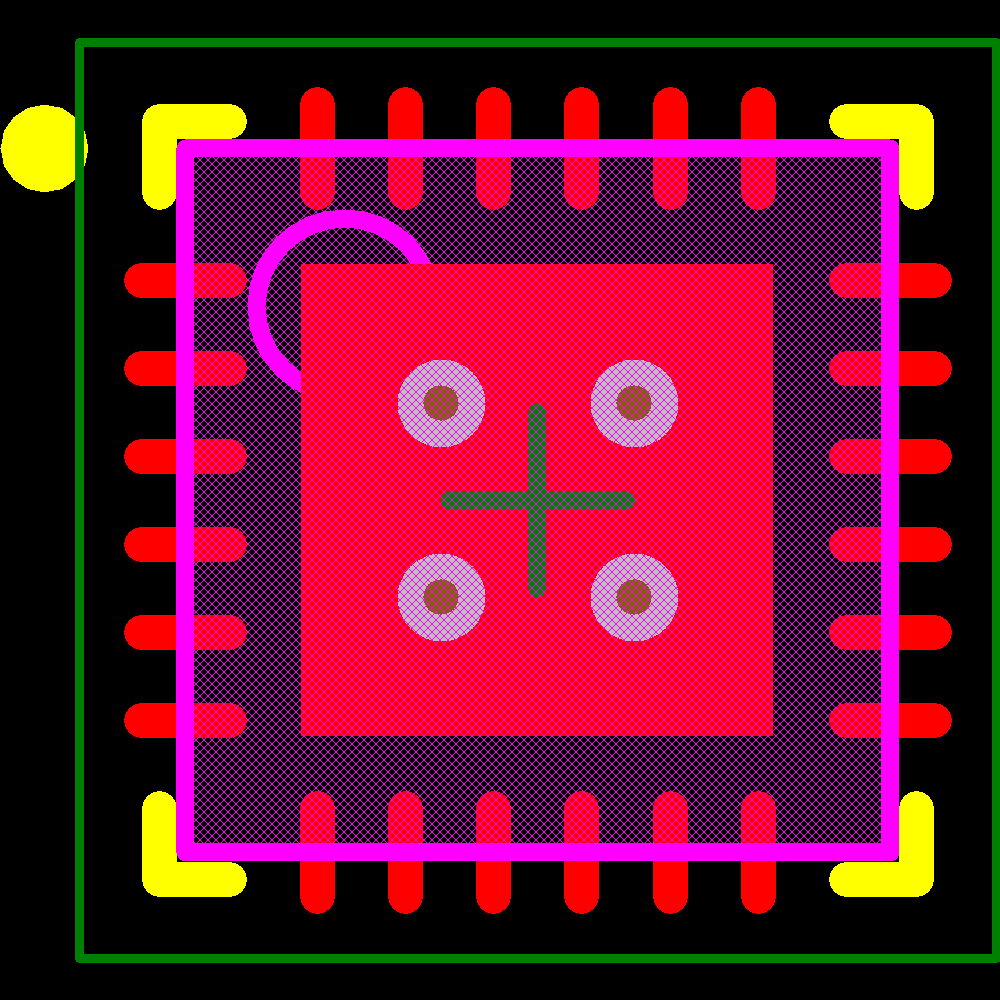

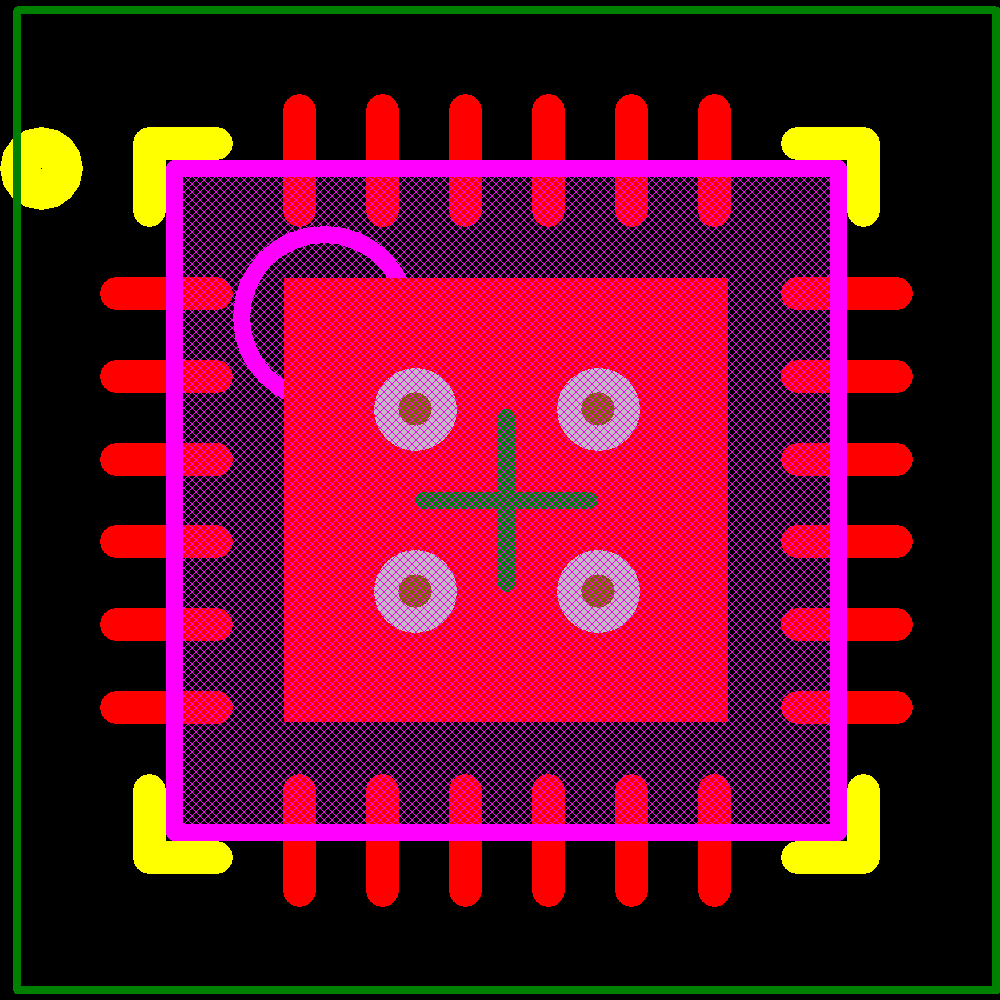

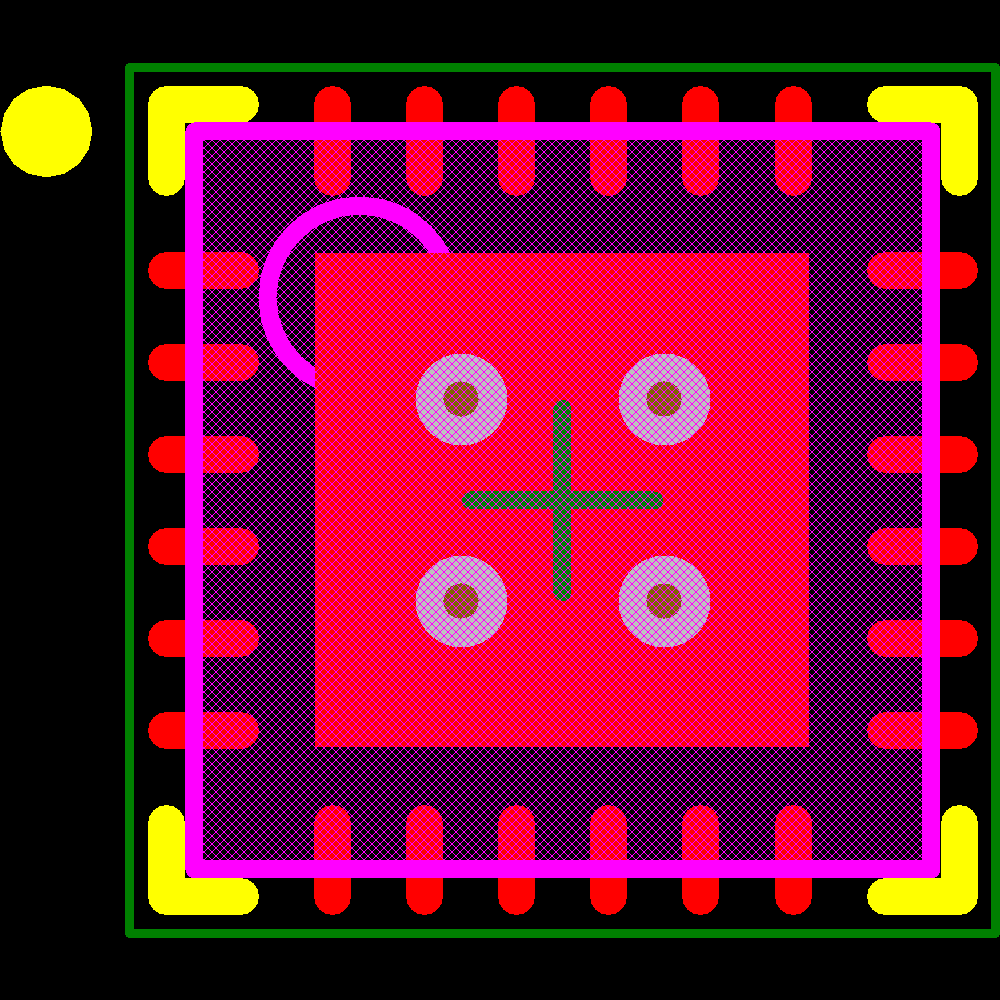

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Silicon Lab
CP2109-A01-GM
EOL
Silicon Lab
CP2112-F02-GM
Obsolete
Silicon Lab
CP2105-F01-GM
Production
Silicon Lab
CP2112-F03-GM
Production
Silicon Lab
CP2105-F01-GMR
Production
Silicon Lab
CP2104-F03-GMR
Production
ST-Ericsson
ISP1505CBSGA
Obsolete
ST-Ericsson
ISP1505CBSUM
Obsolete
ST-Ericsson
ISP1506ABSUM
Obsolete
ST-Ericsson
ISP1506BBSUM
Obsolete

See more alternatives See less alternatives
