SI4707-B20-GM - Silicon Lab
Wb Receiver With Same Decoder, 85Deg C Rohs Compliant: Yes |Silicon Labs SI4707-B20-GM
Technical Details
| Case/Package | QFN |
| China RoHS | Compliant |
| Current - Receiving | 19.1mA |
| Depth | 3mm |
| Frequency | 162.55MHz |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2008-06-05 |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -20°C |
| Min Supply Voltage | 2.7V |
| Number of Pins | 20 |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Rise Time | 10µs |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

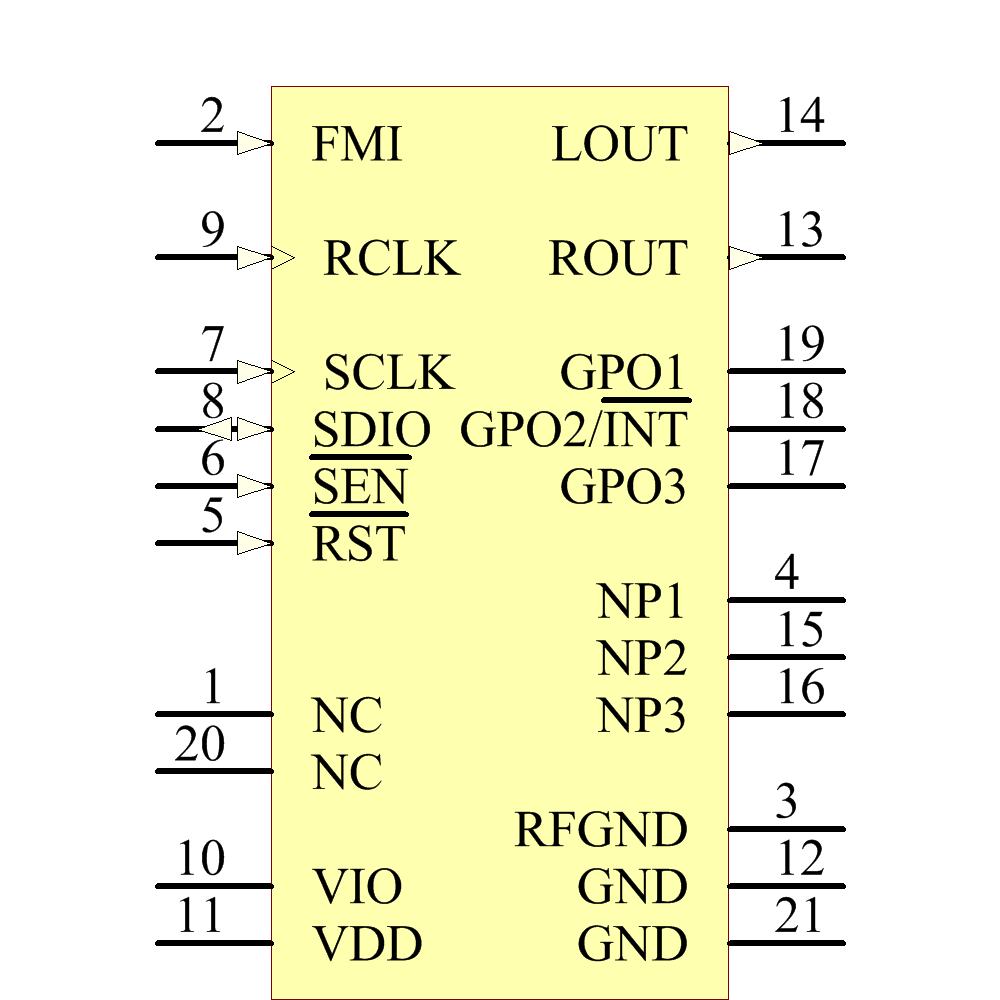

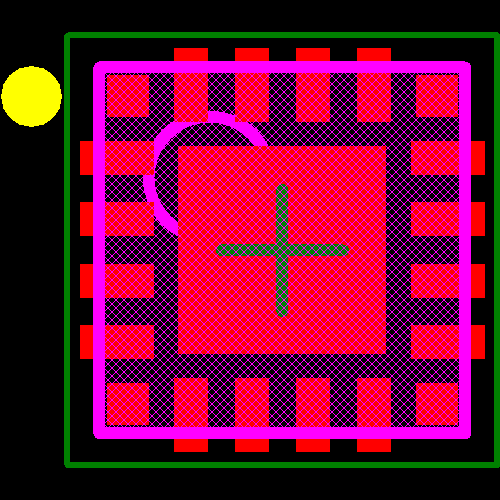

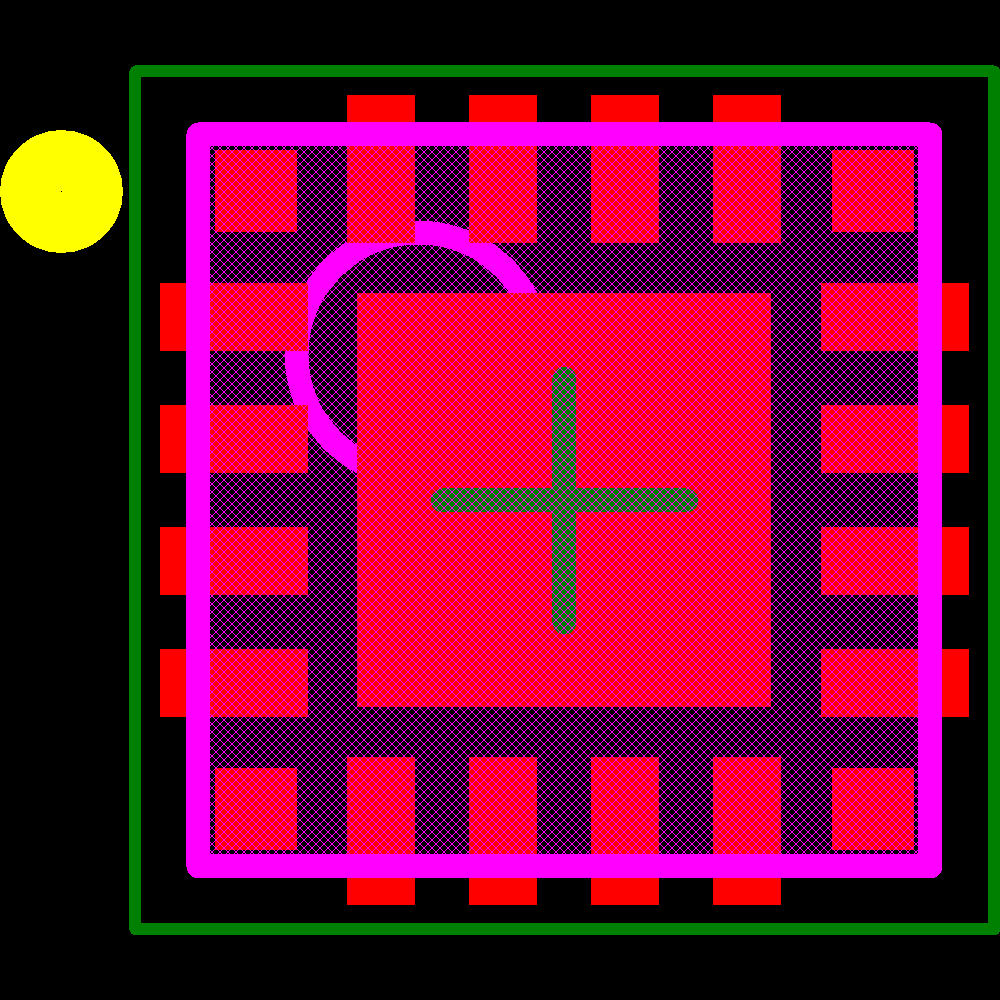

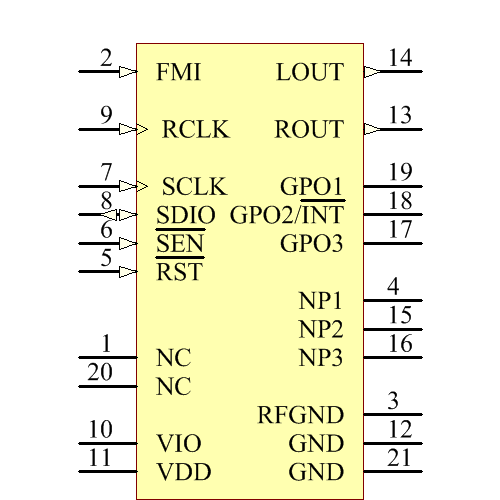

Images
element14 APAC
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Farnell |
DE: 0
|
$ | 4.1543 | 4.1543 | 4.1543 | 4.1543 | 4.1543 | 4.1543 | ||
| element14 APAC |
SG: 0
|
$ | 10.3353 | 8.8784 | 7.9222 | 7.6567 | 6.913 | 6.913 | ||
