Integrated Circuits (ICs) > Clock and Timing

SI5315A-C-GMR - Silicon Lab

Clock Generator 0.008MHz to 644MHz-IN 644.53MHz-OUT 36-Pin QFN EP T/R

Case/Package	QFN
China RoHS	Compliant
Country of Origin	Taiwan
Height - Seated (Max)	900µm
Input	CMOS
Introduction Date	2008-12-17
Length	6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	FULL PRODUCTION
Max Frequency	644.53MHz
Max Input Frequency	644MHz
Max Operating Temperature	85°C
Max Output Frequency	644MHz
Min Input Frequency	8kHz
Min Operating Temperature	-40°C
Min Output Frequency	8kHz
Min Supply Voltage	1.8V
Nominal Supply Voltage (DC)	3.3V
Number of Circuits	1
Number of Inputs	2
Number of Outputs	2
Number of Pins	36
Number of Terminals	36
Operating Supply Voltage	1.8V
Packaging	Tape and Reel
PLL	No
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Temperature Grade	Industrial
Terminal Pitch	500µm
Width	6mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Production

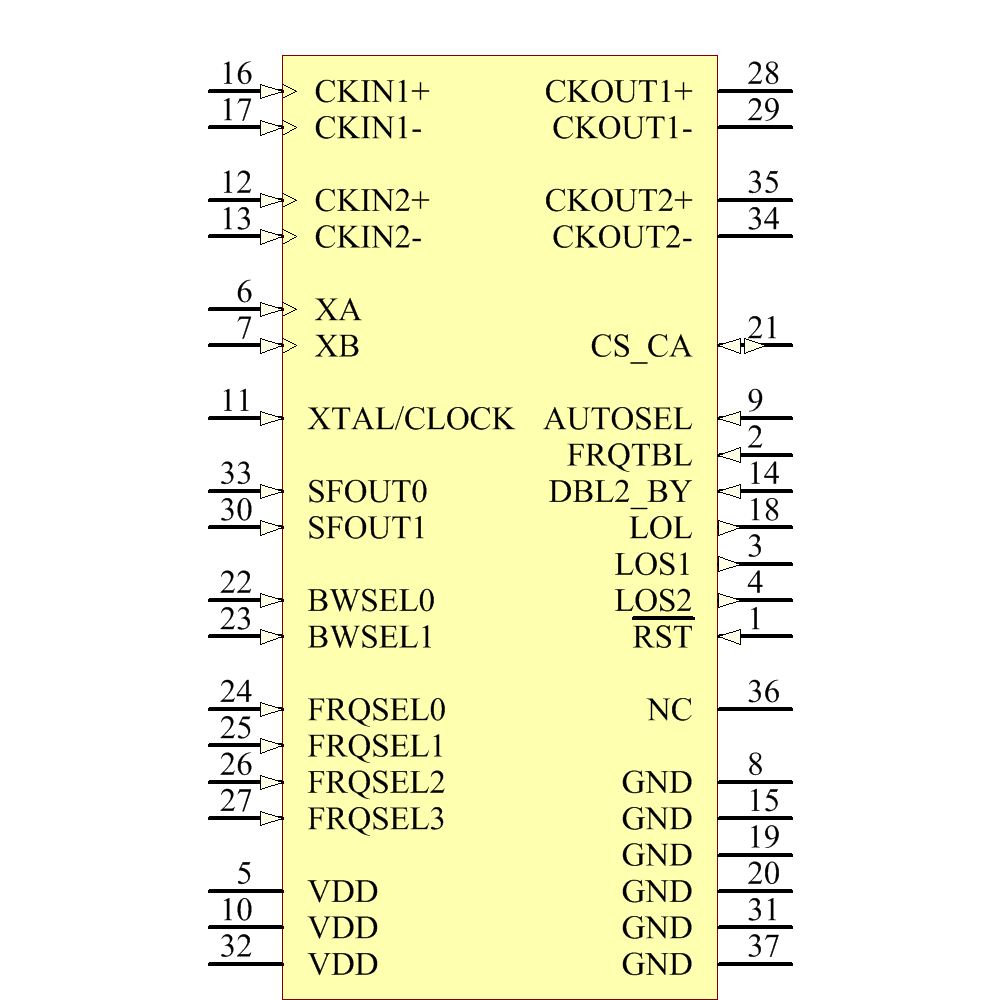

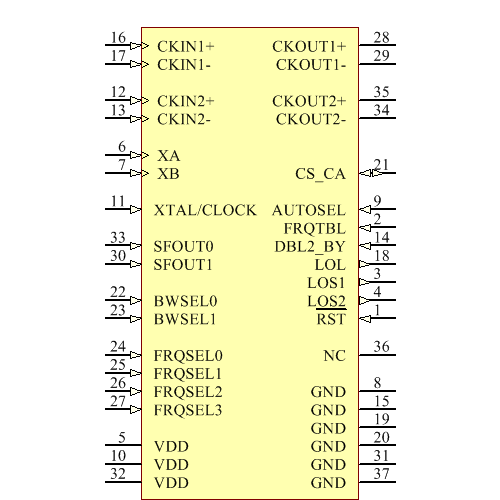

Symbol

‹ ›

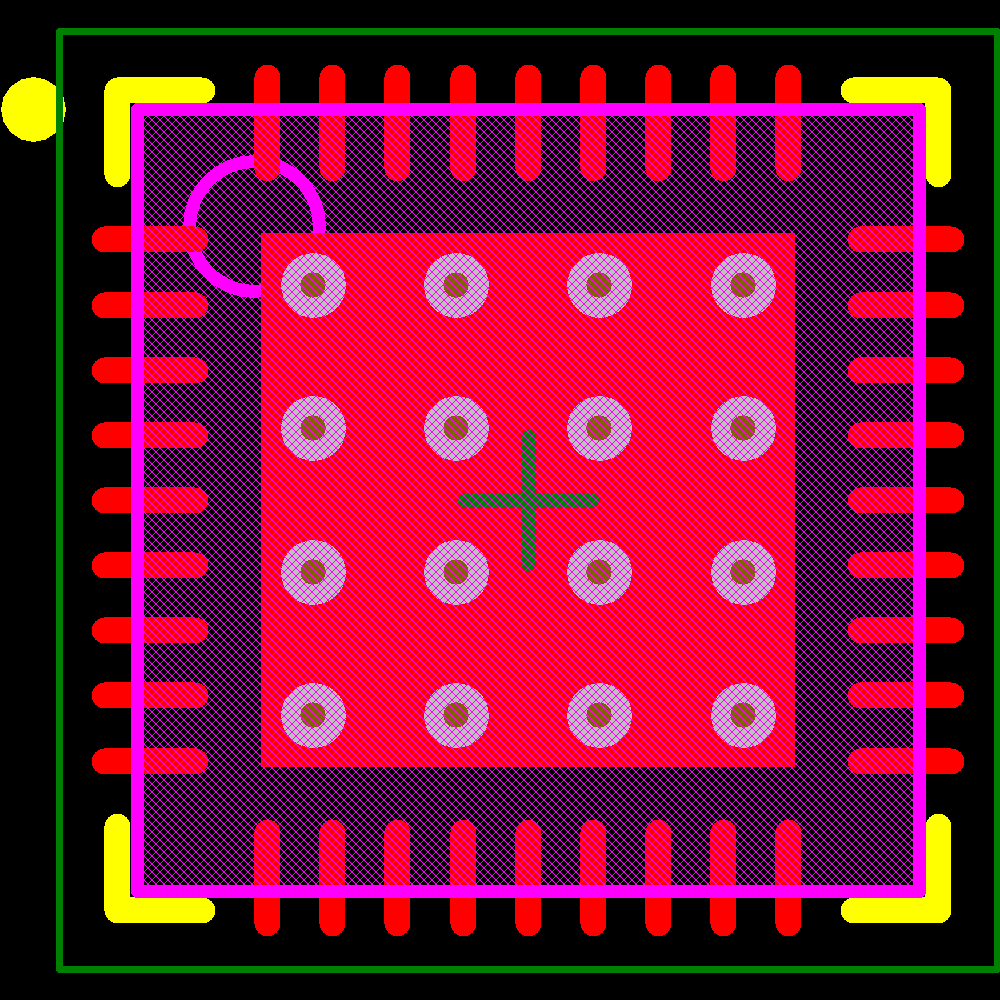

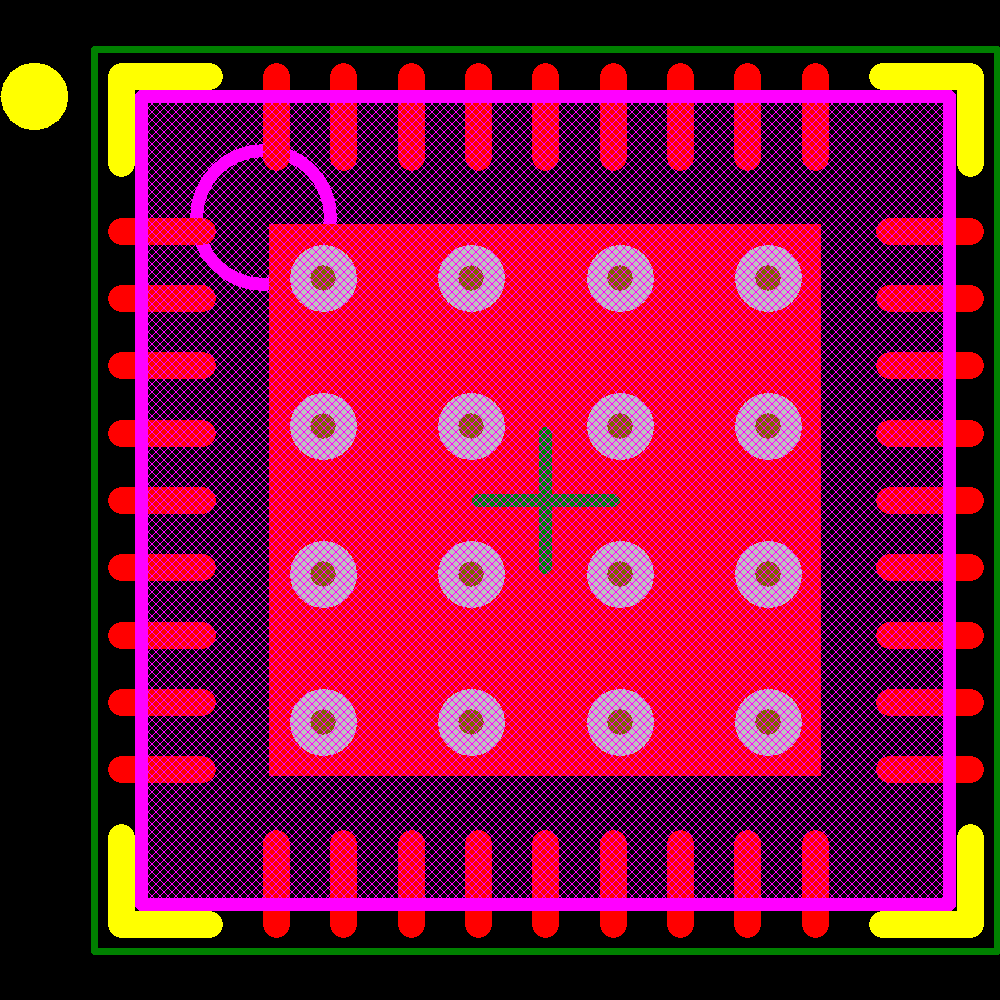

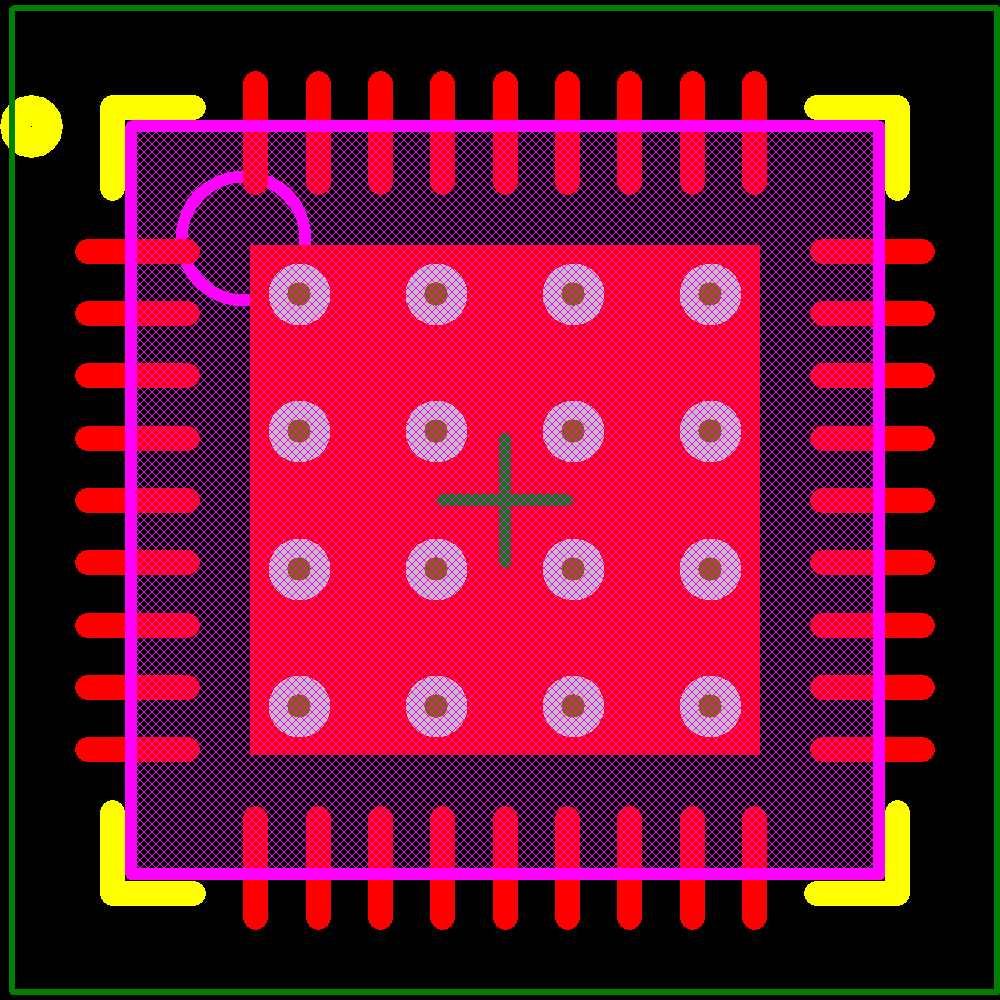

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Silicon Lab	SI5324C-C-GMR	Production
Silicon Lab	SI5315B-C-GMR	Production
Silicon Lab	SI5323-B-GM	Obsolete
Silicon Lab	SI5315A-C-GM	Production
Silicon Lab	SI5316-B-GM	Obsolete
Silicon Lab	SI5324A-C-GMR	Production
Silicon Lab	SI5324B-C-GMR	Production
Silicon Lab	SI5315B-C-GM	Production
Silicon Lab	SI5323-C-GM	Production
Silicon Lab	SI5324B-C-GM	Production
