SI5317C-C-GM - Silicon Lab

Clock Generator 1MHz to 711MHz-IN 200MHz-OUT 36-Pin QFN EP Tray

Case/Package	QFN
China RoHS	Compliant
Contact Plating	Gold
Export Control Classification Number (ECCN) Code	EAR99
Frequency	711MHz
Frequency Stability	20ppm
Height	850µm
Height - Seated (Max)	950µm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Input	Clock
Introduction Date	2011-04-15
Length	6mm
Lifecycle Status	Production
Load Capacitance	15pF
Manufacturer Lifecycle Status	FULL PRODUCTION
Max Frequency	200MHz
Max Input Frequency	200MHz
Max Operating Temperature	85°C
Max Output Frequency	200MHz
Max Supply Current	279mA
Max Supply Voltage	1.89V
Min Input Frequency	1MHz
Min Operating Temperature	-40°C
Min Output Frequency	1MHz
Min Supply Voltage	1.71V
Nominal Supply Voltage (DC)	3.3V
Number of Circuits	1
Number of Elements	1
Number of Inputs	1
Number of Outputs	2
Number of Pins	36
Number of Terminals	36
Operating Supply Voltage	1.8V
Packaging	Cut Tape
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000
Temperature Grade	Industrial
Terminal Pitch	500µm
Termination	SMD/SMT
Width	6mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Production

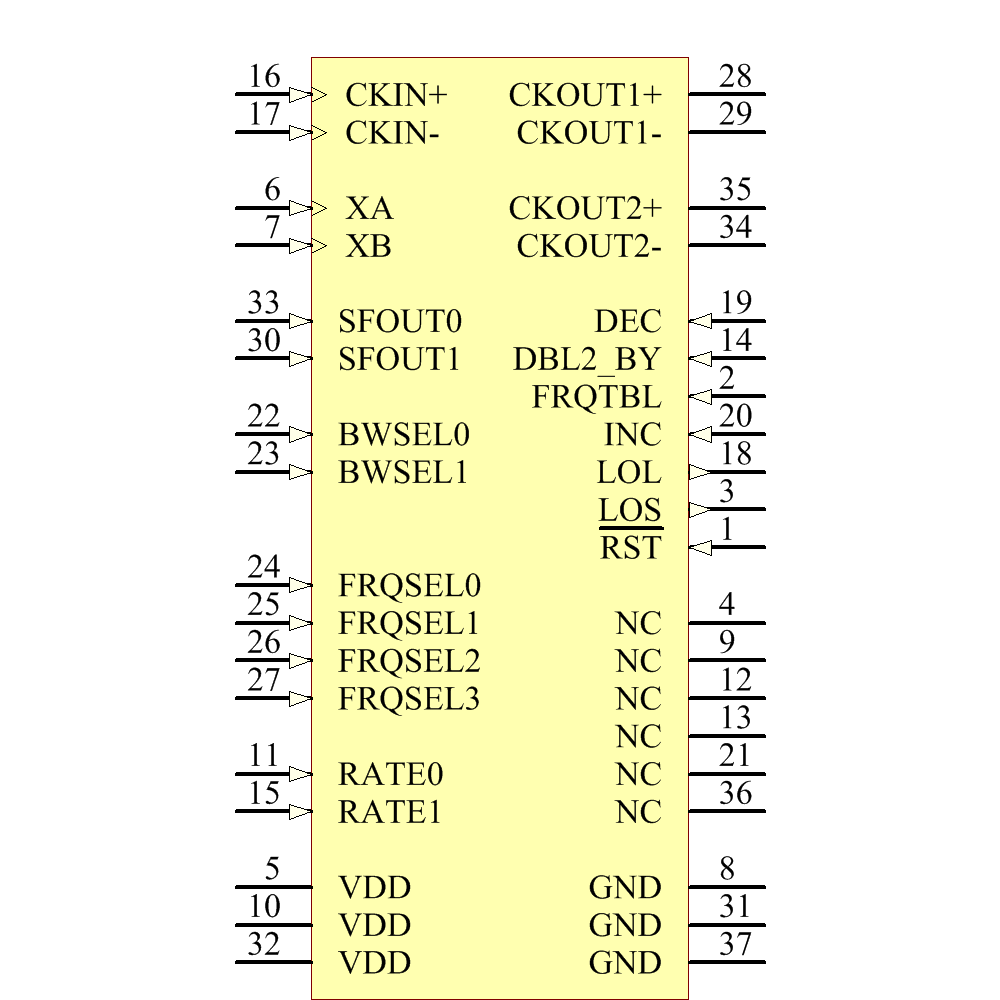

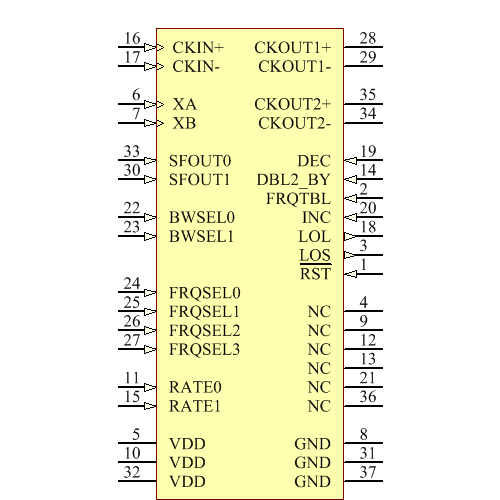

Symbol

‹ ›

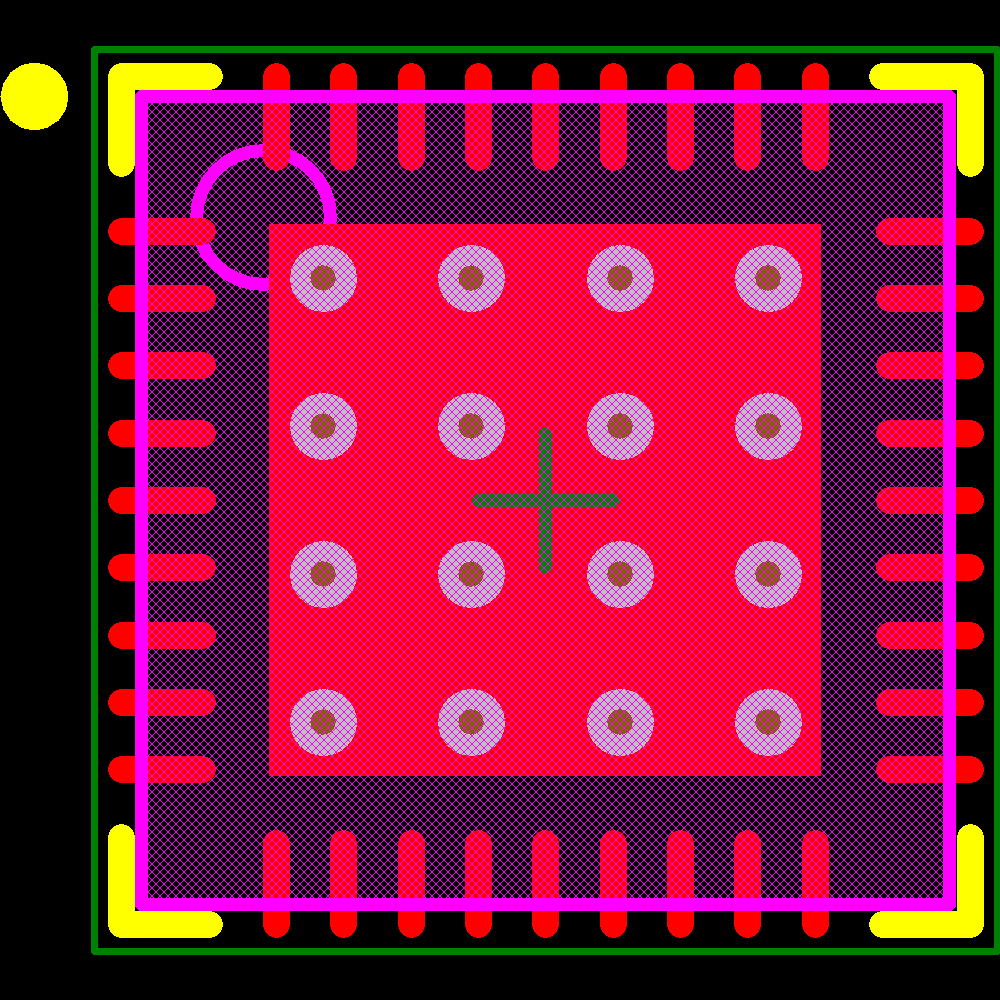

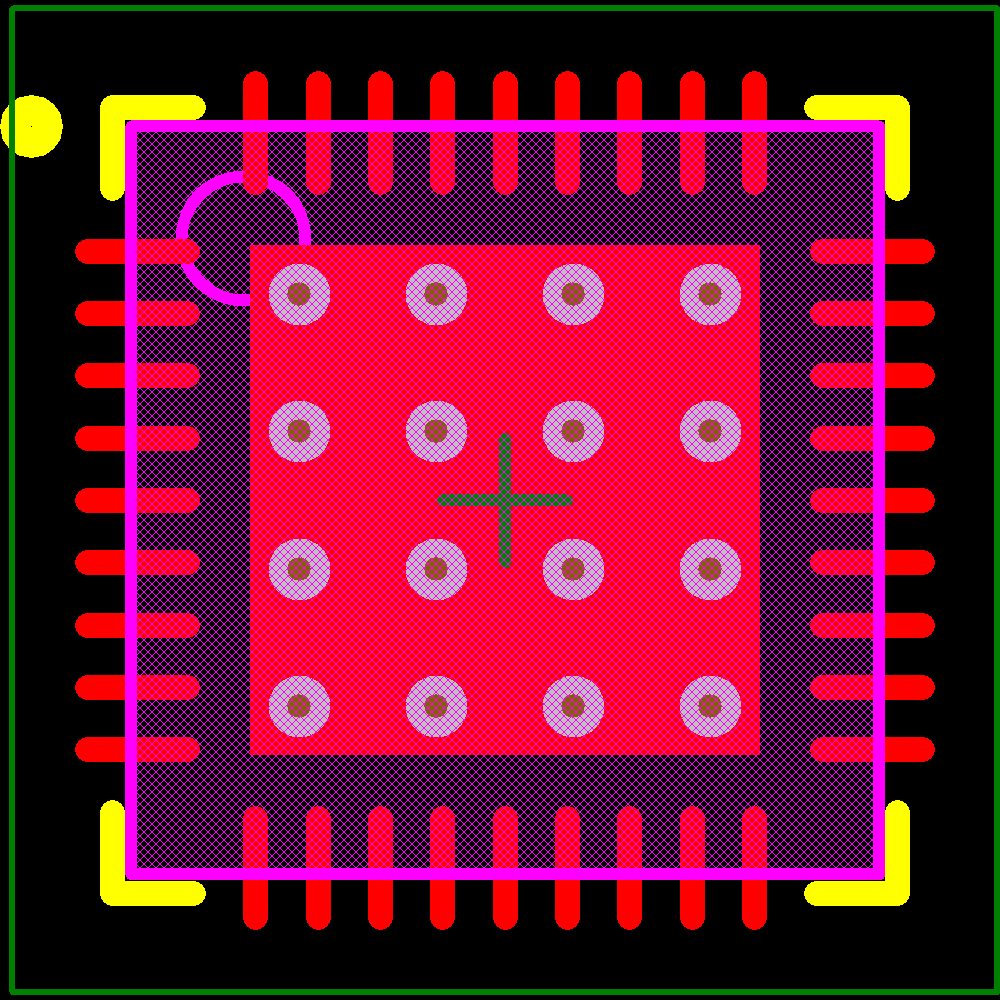

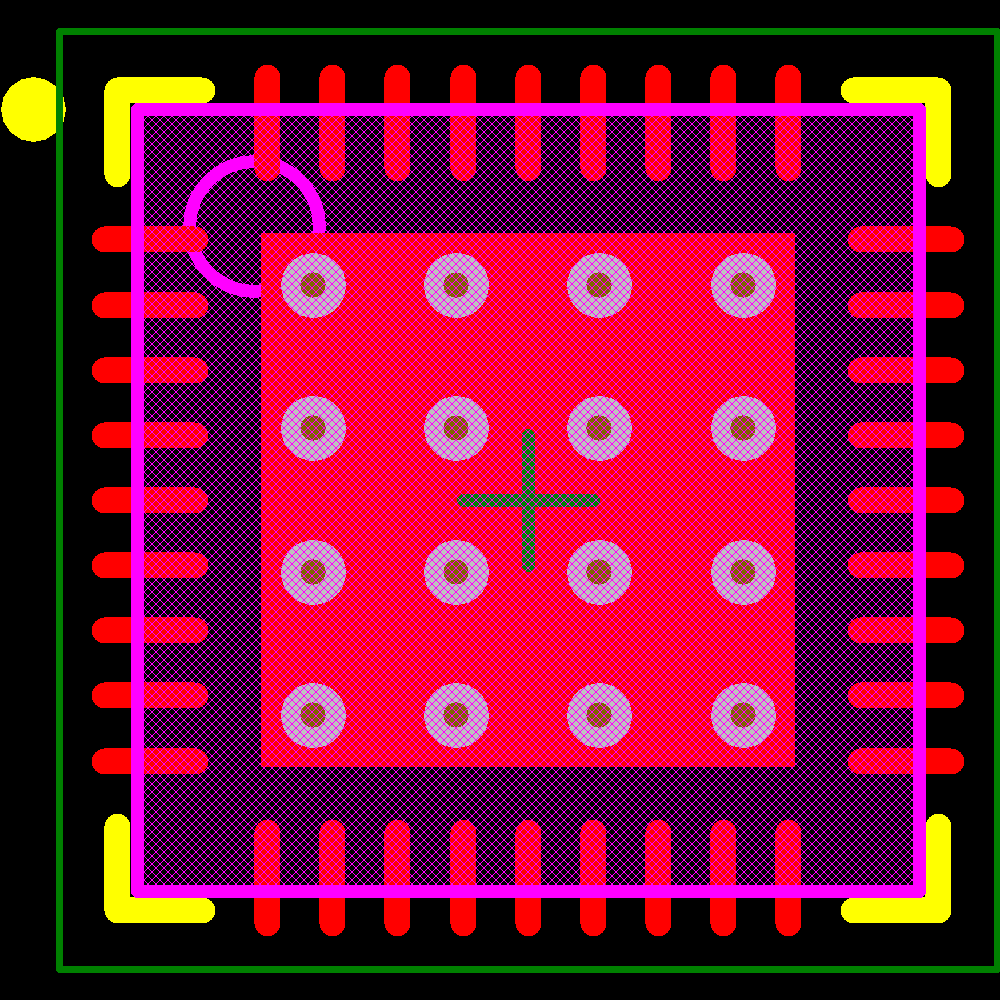

Footprint

‹ ›
