SI5317C-C-GMR - Silicon Lab
Clock Generator 1MHz to 711MHz-IN 200MHz-OUT 36-Pin QFN EP T/R
Technical Details
| Case/Package | QFN |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 711MHz |
| Height - Seated (Max) | 950µm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Input | Clock |
| Introduction Date | 2011-04-15 |
| Length | 6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Frequency | 200MHz |
| Max Input Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Output Frequency | 200MHz |
| Max Supply Current | 279mA |
| Max Supply Voltage | 1.89V |
| Min Input Frequency | 1MHz |
| Min Operating Temperature | -40°C |
| Min Output Frequency | 1MHz |
| Min Supply Voltage | 1.71V |
| Nominal Supply Voltage (DC) | 3.3V |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Number of Pins | 36 |
| Number of Terminals | 36 |
| Operating Supply Voltage | 1.8V |
| Packaging | Tape and Reel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

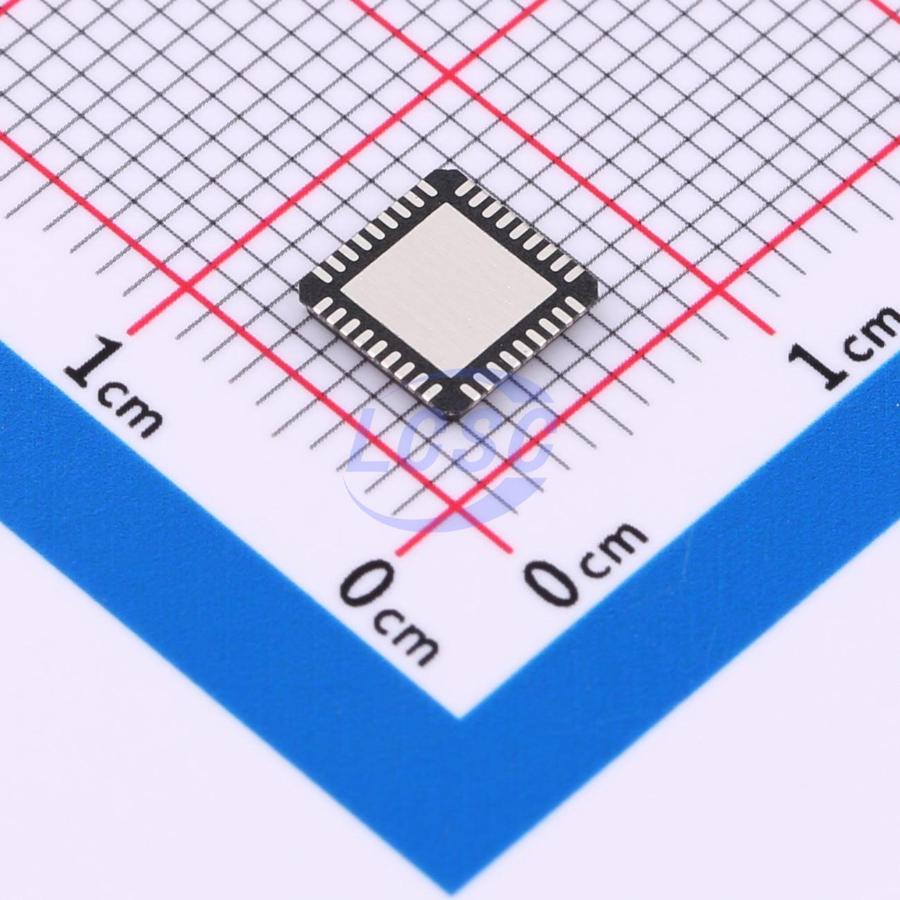

LCSC
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Obsolete | ||
| Silicon Lab | Production | ||
| Silicon Lab | Obsolete | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production |
