Integrated Circuits (ICs) > Clock and Timing

SI5324A-C-GM - Silicon Lab

Clock Generator 0.002MHz to 710MHz-IN 1417MHz-OUT 36-Pin QFN EP Tray

Case/Package	QFN
China RoHS	Compliant
Height - Seated (Max)	950µm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.01
Input	Clock
Introduction Date	2009-09-08
Length	6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	FULL PRODUCTION
Max Frequency	1.42GHz
Max Input Frequency	710MHz
Max Operating Temperature	85°C
Max Output Frequency	1.417GHz
Min Input Frequency	2MHz
Min Operating Temperature	-40°C
Min Output Frequency	2kHz
Min Supply Voltage	1.8V
Nominal Supply Voltage (DC)	3.3V
Number of Circuits	1
Number of Inputs	2
Number of Outputs	2
Number of Pins	36
Number of Terminals	36
Operating Supply Voltage	1.8V
PLL	Yes
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000
Temperature Grade	Industrial
Terminal Pitch	500µm
Weight	92.589543mg
Width	6mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Production

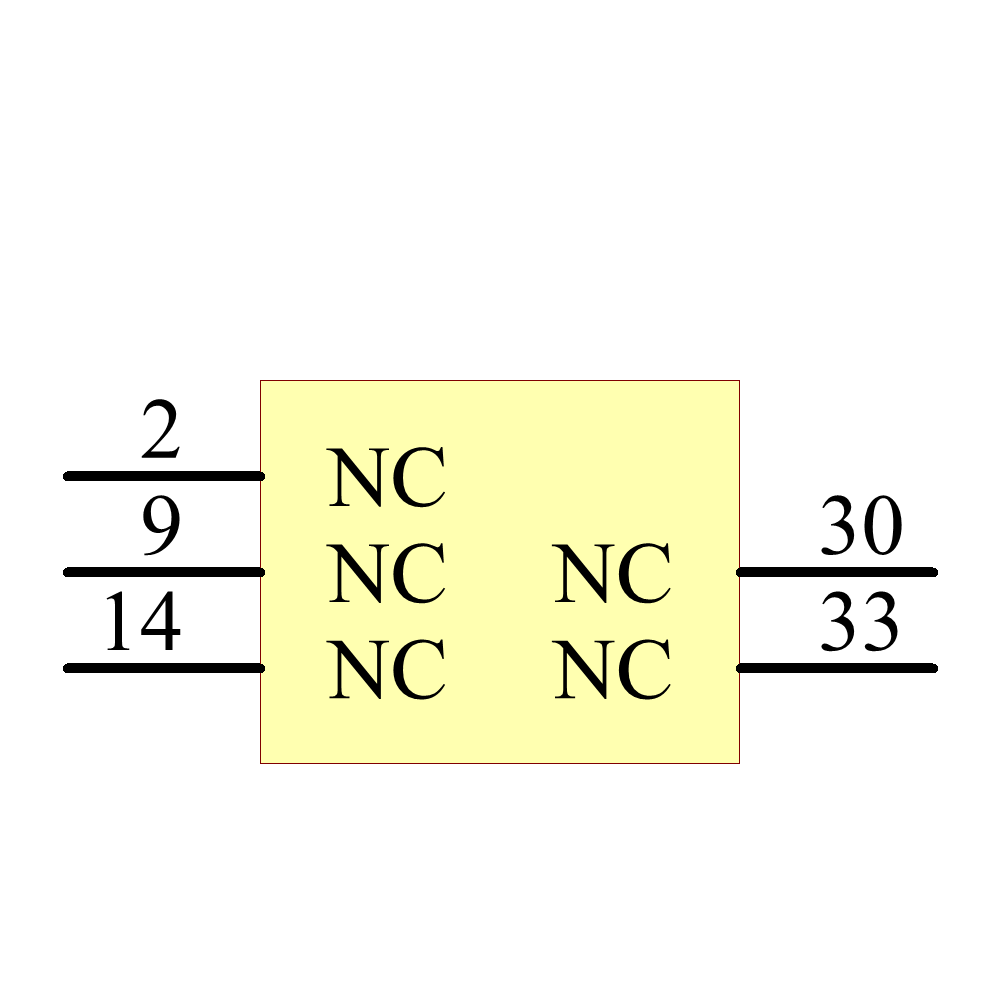

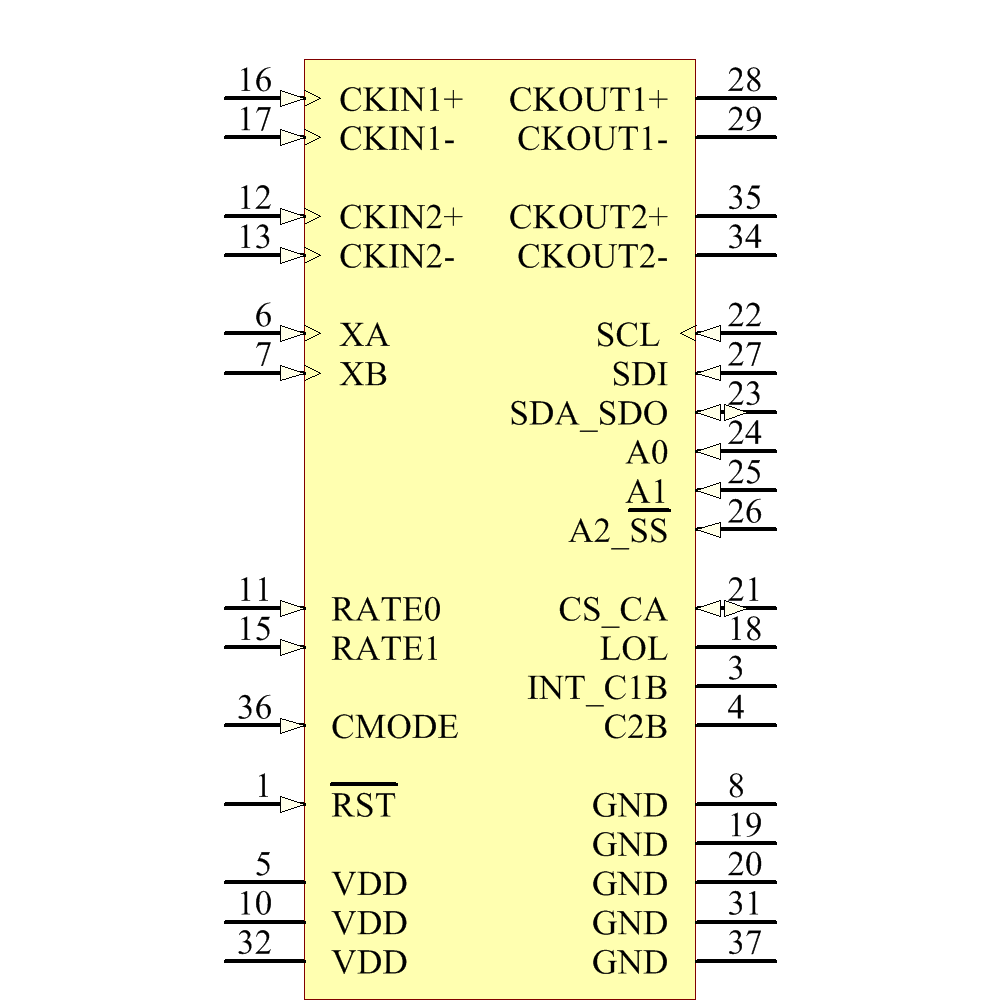

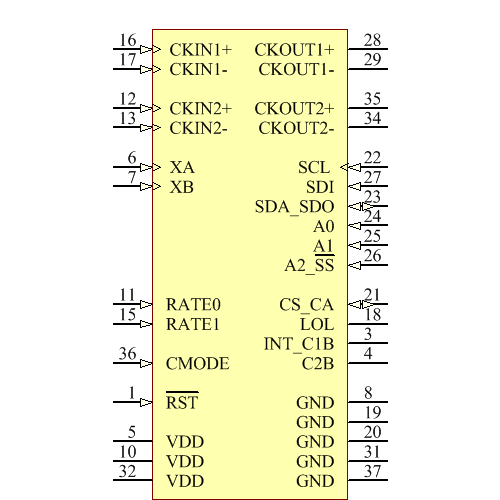

Symbol

‹ ›

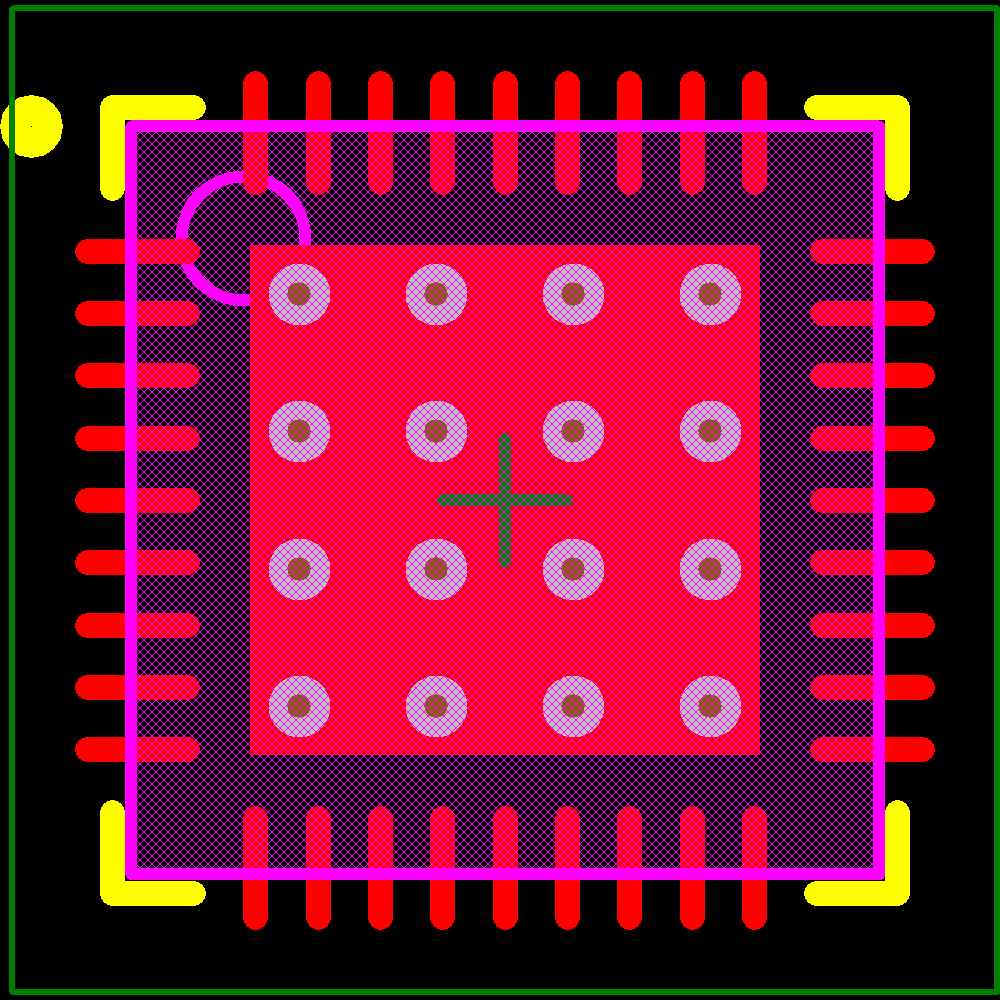

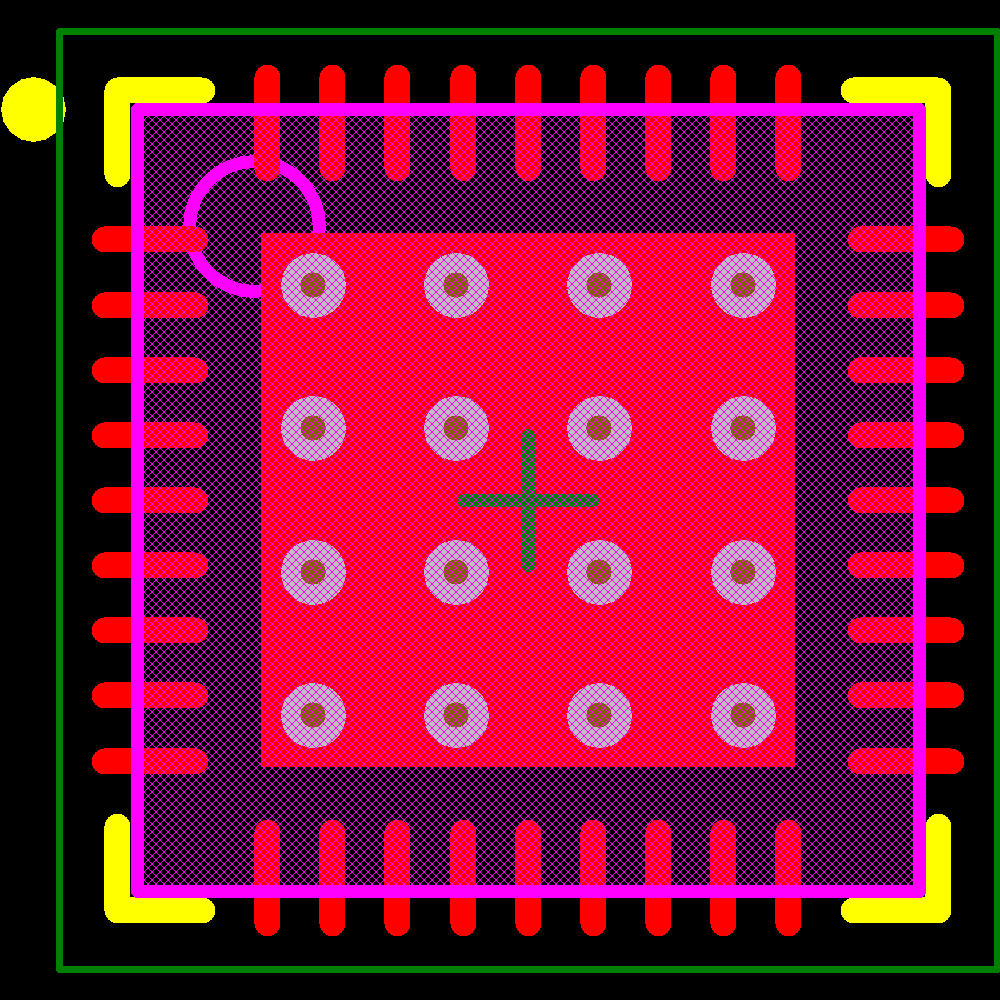

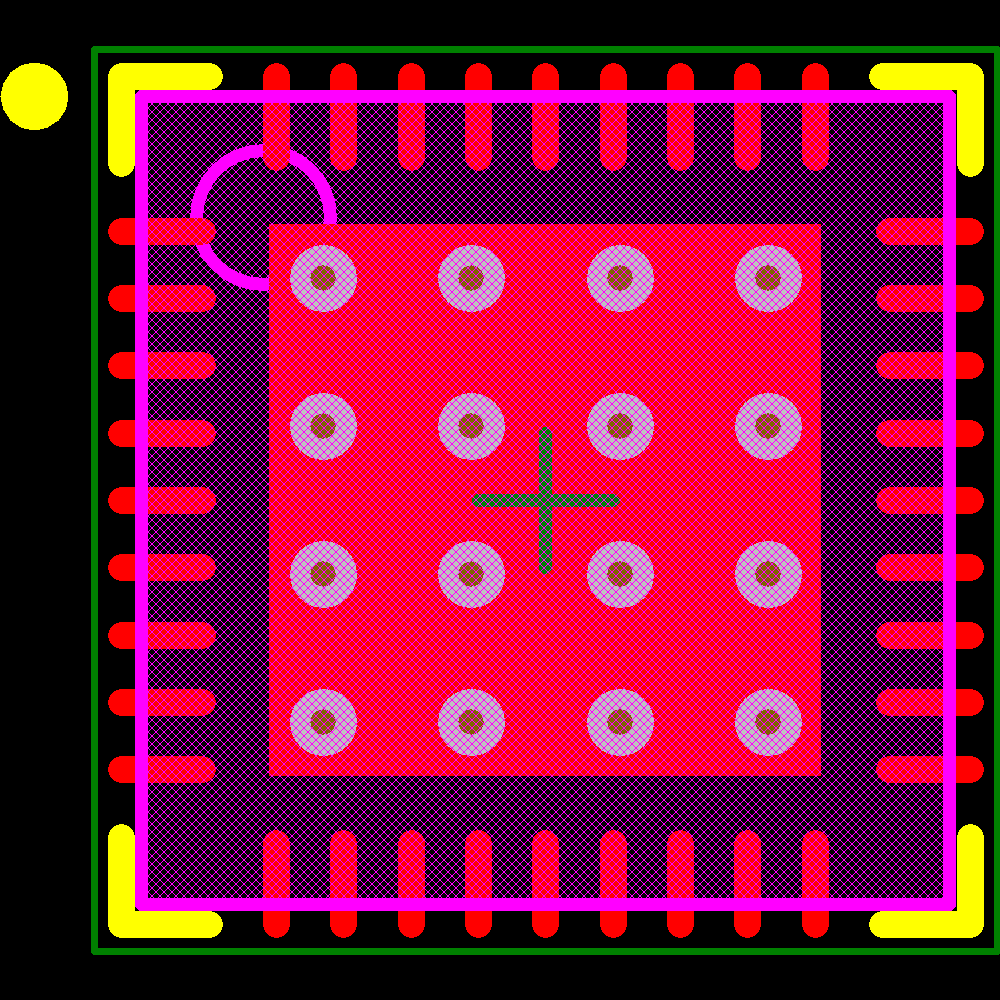

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Silicon Lab	SI5324A-C-GMR	Production
Silicon Lab	SI5324C-C-GMR	Production
Silicon Lab	SI5315B-C-GMR	Production
Silicon Lab	SI5323-B-GM	Obsolete
Silicon Lab	SI5315A-C-GM	Production
Silicon Lab	SI5316-B-GM	Obsolete
Silicon Lab	SI5324B-C-GMR	Production
Silicon Lab	SI5315B-C-GM	Production
Silicon Lab	SI5323-C-GM	Production
Silicon Lab	SI5324B-C-GM	Production
