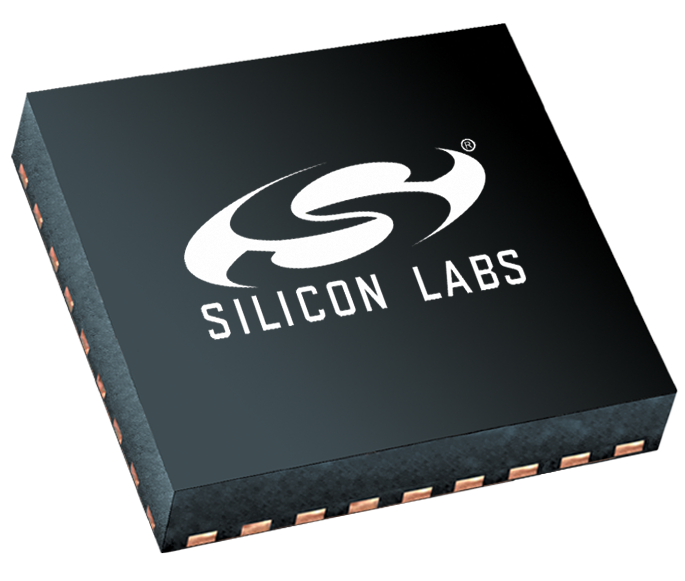

SI5327B-C-GM - Silicon Lab

Processor Specific Clock Generator, 808MHz, CMOS, QCC36

Case/Package	QFN
China RoHS	Compliant
Contact Plating	Tin
Export Control Classification Number (ECCN) Code	EAR99
Frequency	710MHz
Height - Seated (Max)	900µm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Input	LVCMOS
Introduction Date	2011-05-02
Length	6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	FULL PRODUCTION
Max Frequency	808MHz
Max Input Frequency	710MHz
Max Operating Temperature	85°C
Max Output Frequency	808MHz
Max Supply Current	279mA
Max Supply Voltage	1.89V
Min Input Frequency	2MHz
Min Operating Temperature	-40°C
Min Output Frequency	2kHz
Min Supply Voltage	1.71V
Nominal Supply Voltage (DC)	3.3V
Number of Circuits	1
Number of Inputs	2
Number of Outputs	2
Number of Pins	36
Number of Terminals	36
Operating Supply Current	279mA
Operating Supply Voltage	1.8V
PLL	Yes
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Temperature Grade	Industrial
Terminal Pitch	500µm
Width	6mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Production

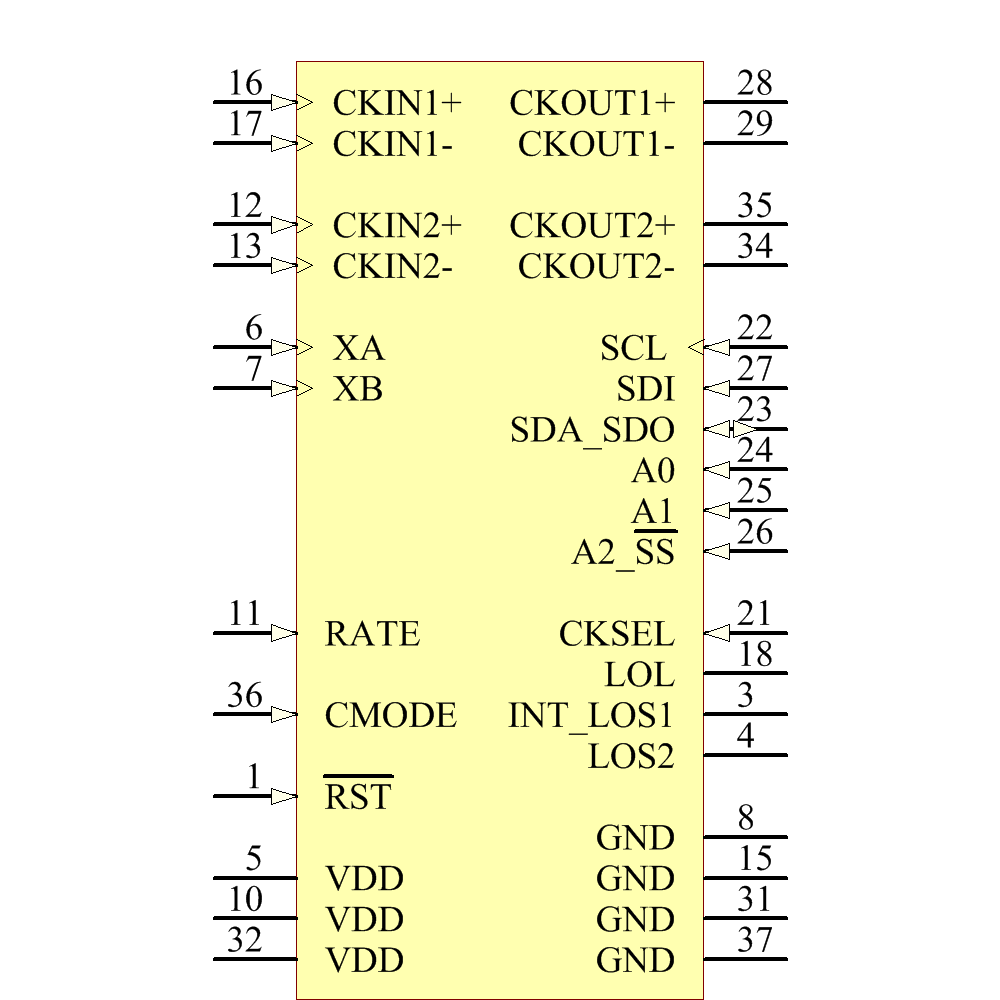

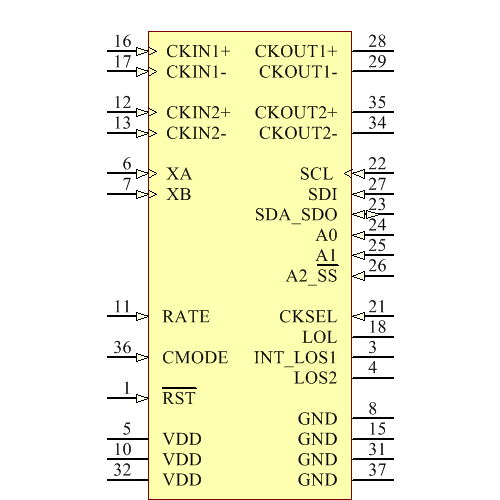

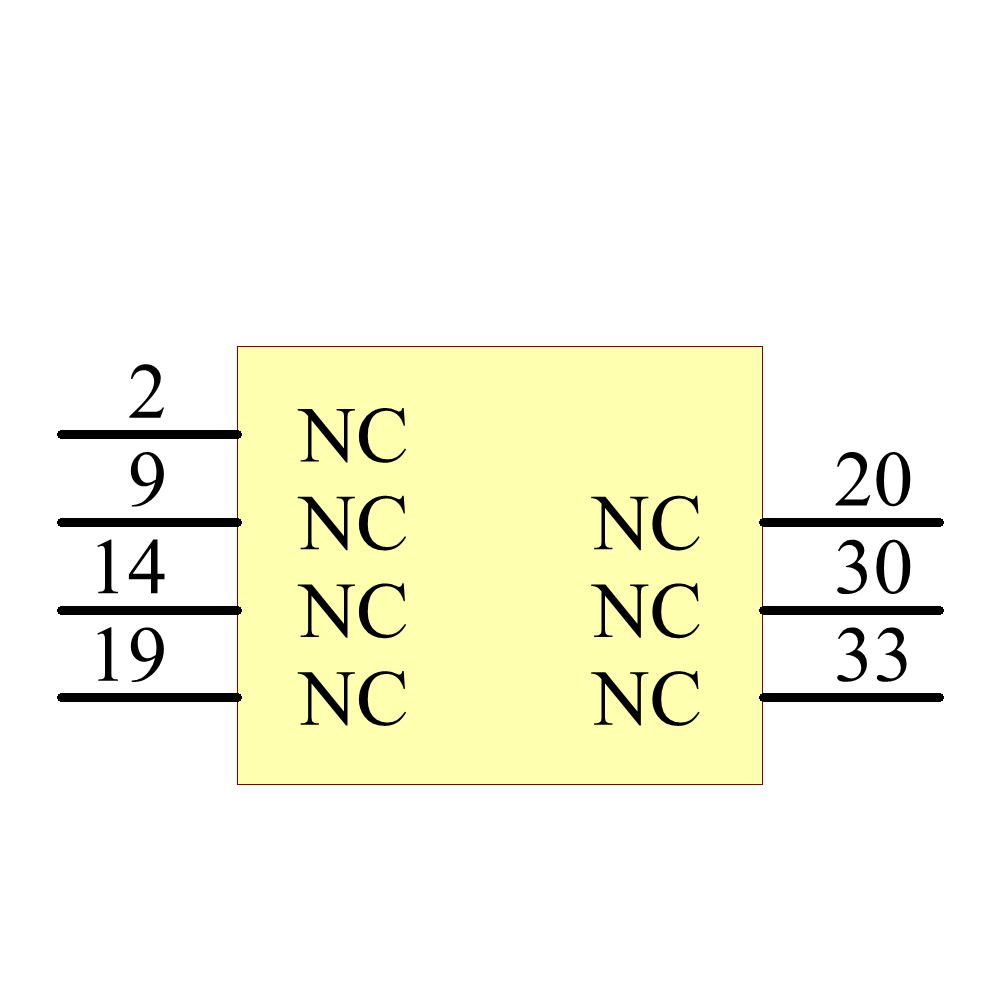

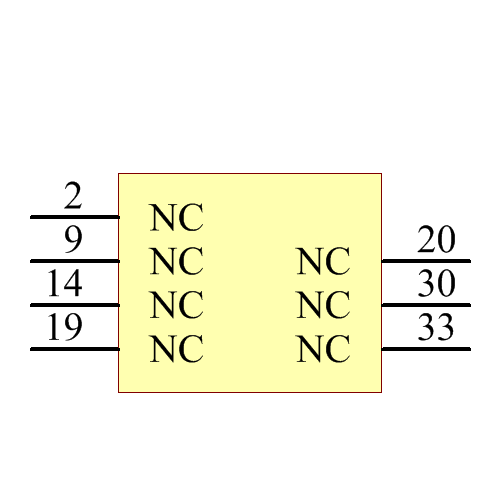

Symbol

‹ ›

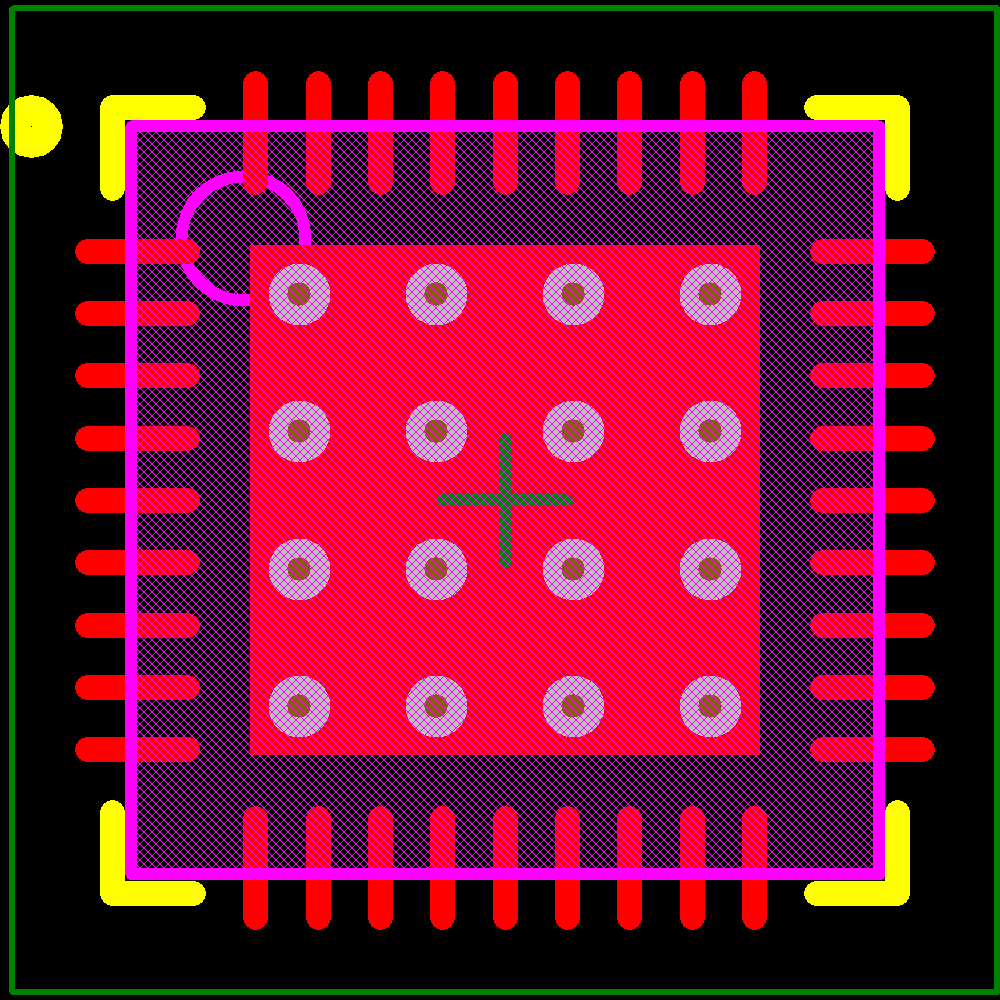

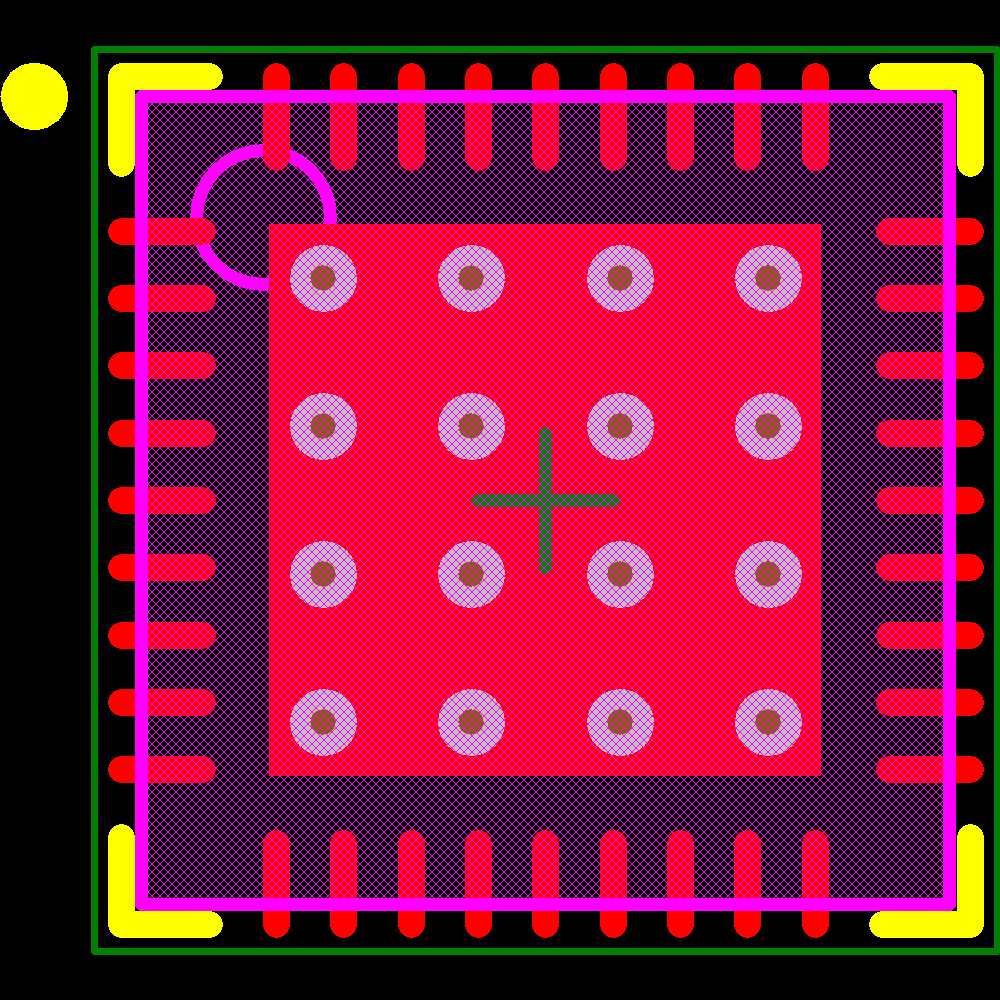

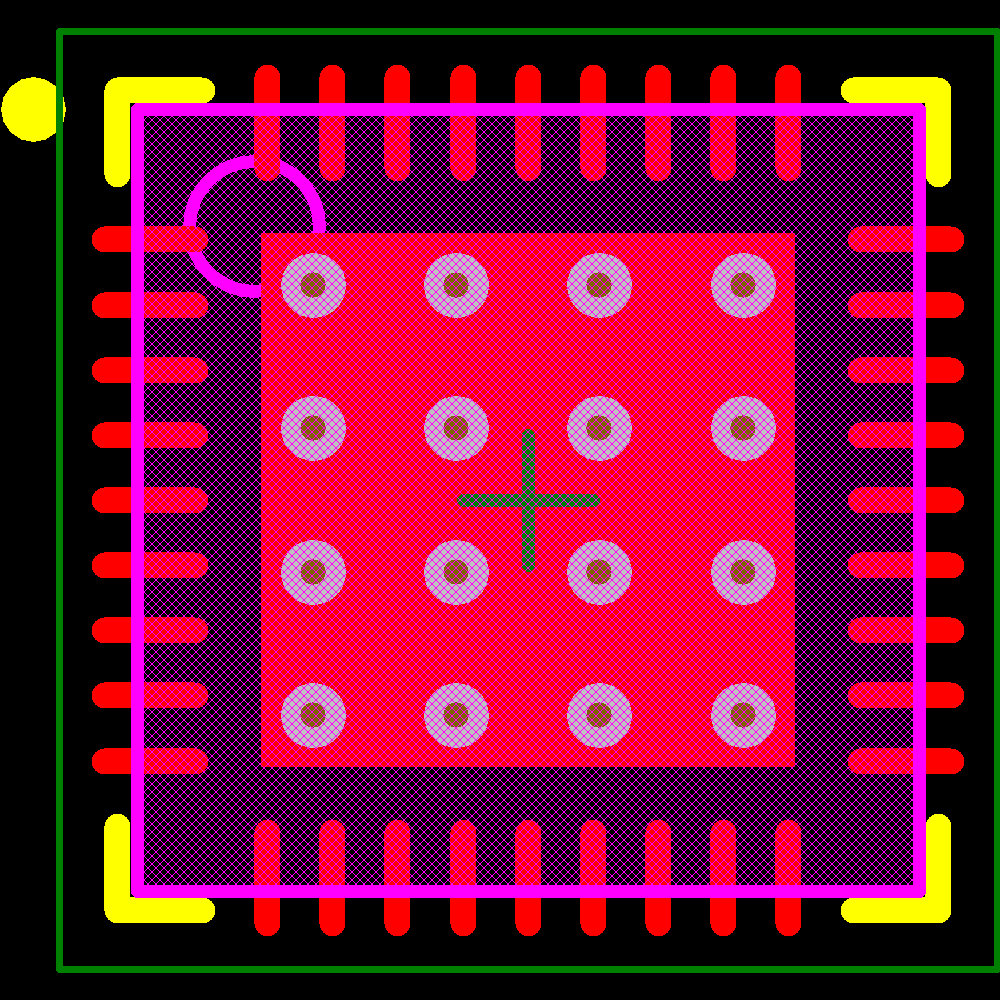

Footprint

‹ ›
