Integrated Circuits (ICs) > Clock and Timing > Clock Generators, PLLs, Frequency Synthesizers

SI5327D-C-GM - Silicon Lab

Tin QUAD Active Surface Mount Clock Multiplier, Jitter Attenuator IC 6Weeks -40C~85C 6mm 279mA

Case/Package	QFN
China RoHS	Compliant
Contact Plating	Tin
Frequency	710MHz
Height - Seated (Max)	900µm
Input	LVCMOS
Length	6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	FULL PRODUCTION
Max Frequency	243MHz
Max Input Frequency	710MHz
Max Operating Temperature	85°C
Max Output Frequency	243MHz
Max Supply Current	279mA
Max Supply Voltage	1.89V
Min Input Frequency	2MHz
Min Operating Temperature	-40°C
Min Output Frequency	2kHz
Min Supply Voltage	1.71V
Nominal Supply Voltage (DC)	3.3V
Number of Circuits	1
Number of Inputs	2
Number of Outputs	2
Number of Pins	36
Number of Terminals	36
Operating Supply Current	279mA
Operating Supply Voltage	1.8V
PLL	Yes
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000
Temperature Grade	Industrial
Terminal Pitch	500µm
Width	6mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Production

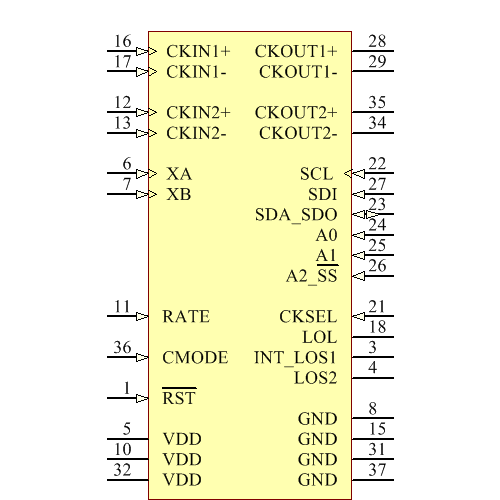

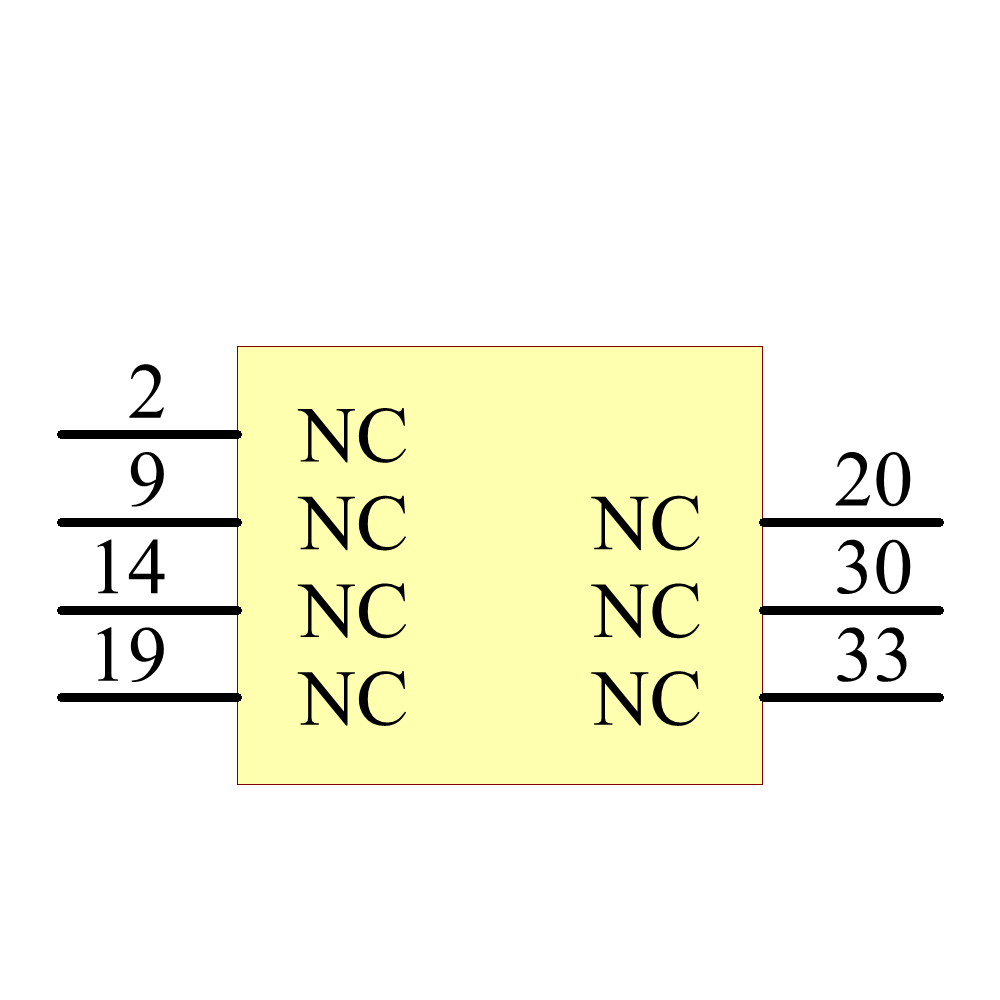

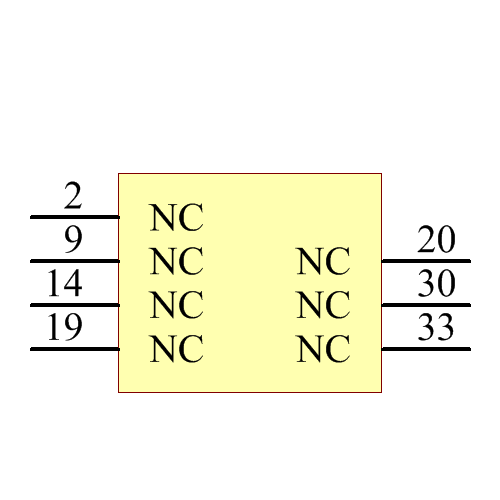

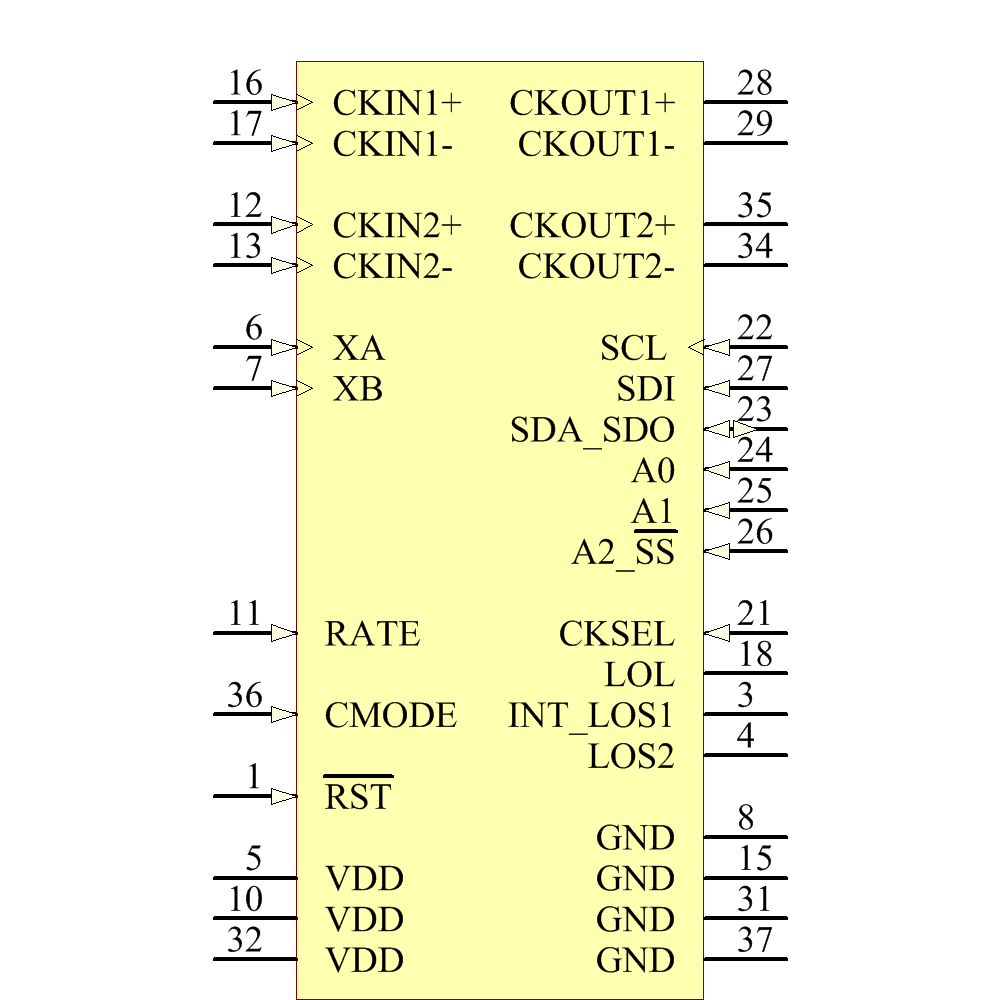

Symbol

‹ ›

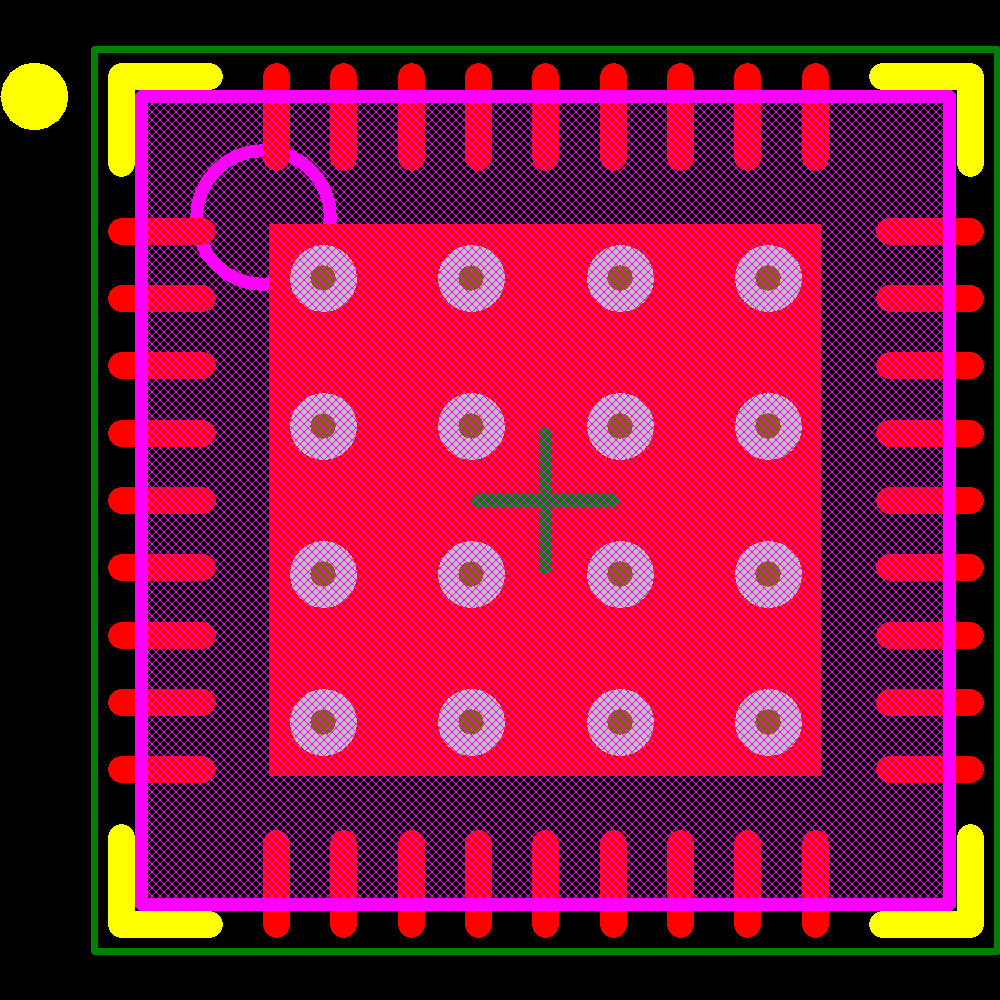

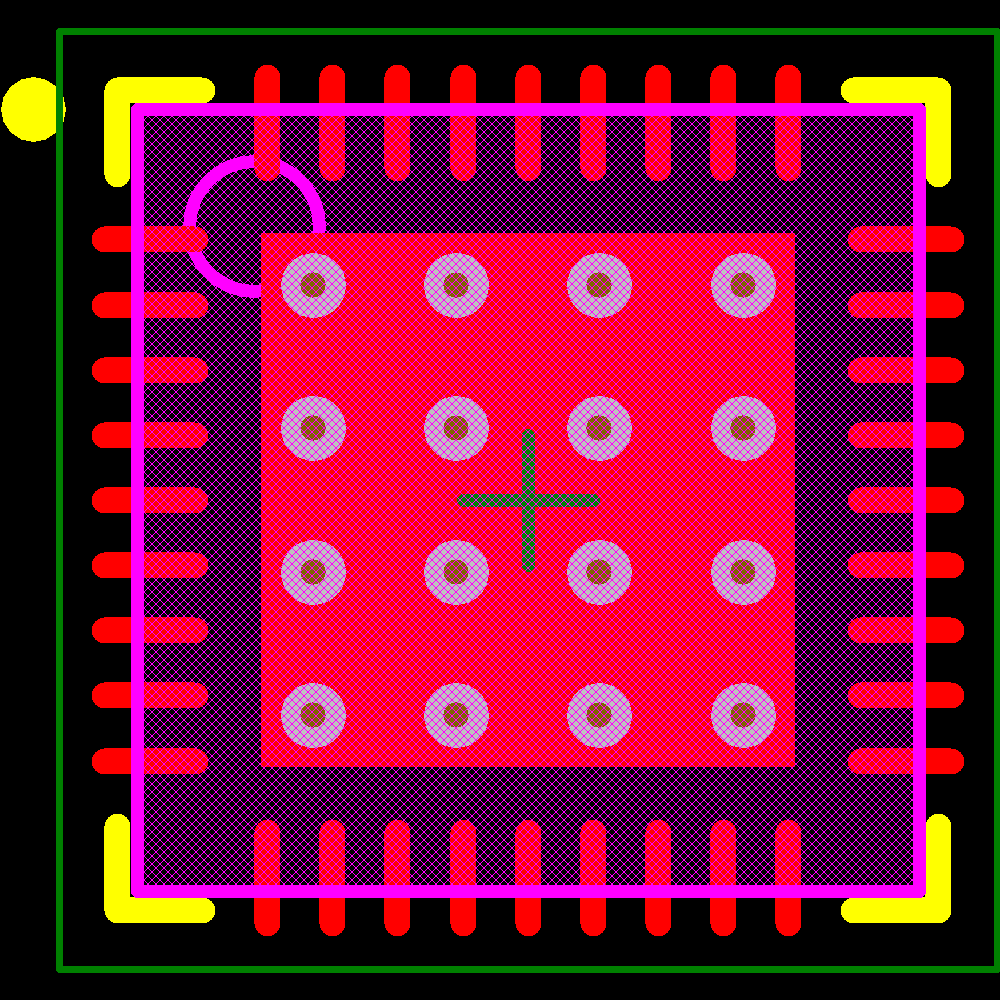

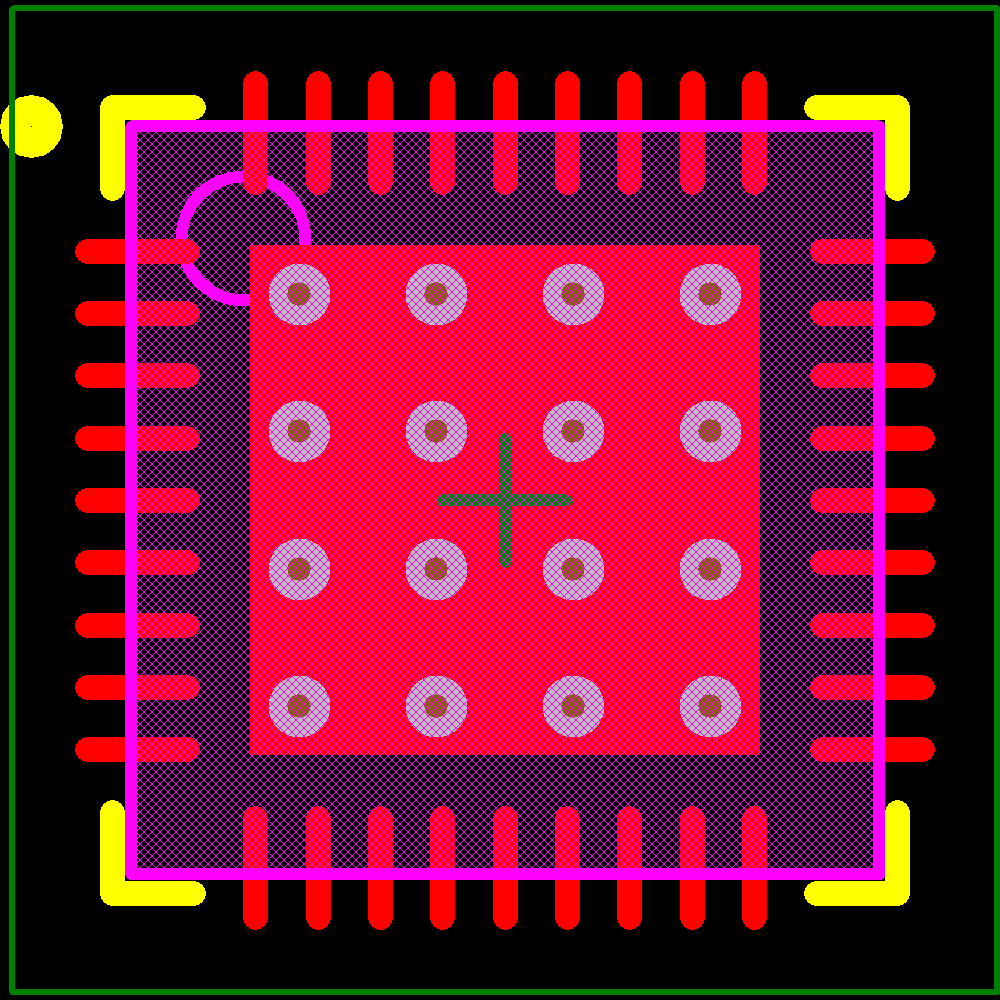

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Silicon Lab	SI5376B-A-BL	Unknown
Silicon Lab	SI5338B-B-GM	Production
Silicon Lab	SI5374B-A-GL	Unknown
Silicon Lab	SI5374B-A-BL	Unknown
Silicon Lab	SI5338B-BXXXXX-GMR	Production
Silicon Lab	SI5369D-C-GQR	Production
Silicon Lab	SI5369D-C-GQ	Production
Silicon Lab	SI5369A-C-GQ	Production
Silicon Lab	SI5369C-C-GQ	Production
Silicon Lab	SI5369A-C-GQR	Production
