SI5338K-B-GM - Silicon Lab
Programmable PLL Clock Generator Quad 0.16MHz to 710MHz 24-Pin QFN
Technical Details
| Case/Package | QFN |
| China RoHS | Compliant |
| Frequency | 30MHz |
| Height - Seated (Max) | 900µm |
| Input | Crystal |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Duty Cycle | 55% |
| Max Frequency | 710MHz |
| Max Operating Temperature | 85°C |
| Max Output Frequency | 710MHz |
| Max Supply Current | 60mA |
| Max Supply Voltage | 1.98V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Number of Circuits | 1 |
| Number of Outputs | 4 |
| Number of Pins | 24 |
| Number of Terminals | 24 |
| Operating Supply Current | 45mA |
| Operating Supply Voltage | 1.8V |
| PLL | Yes |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

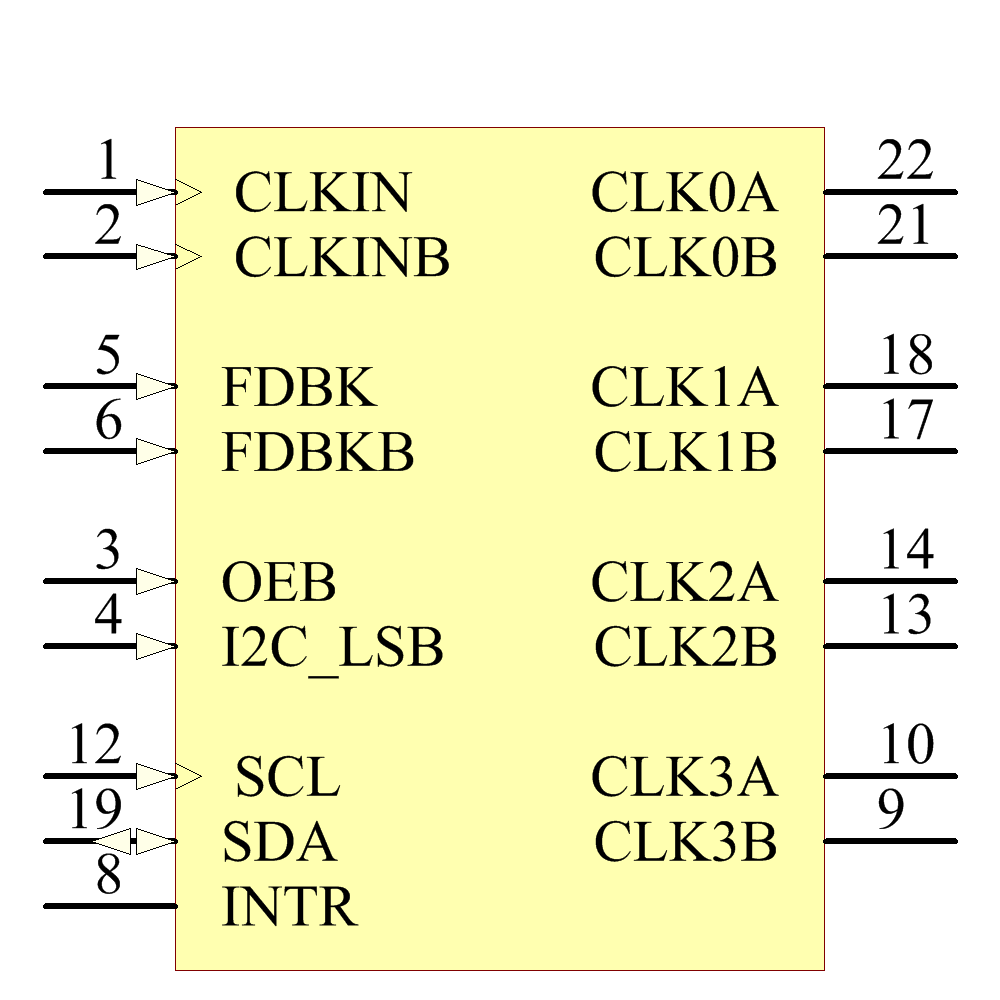

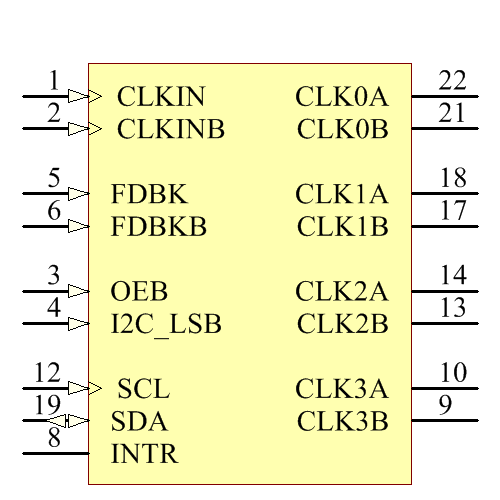

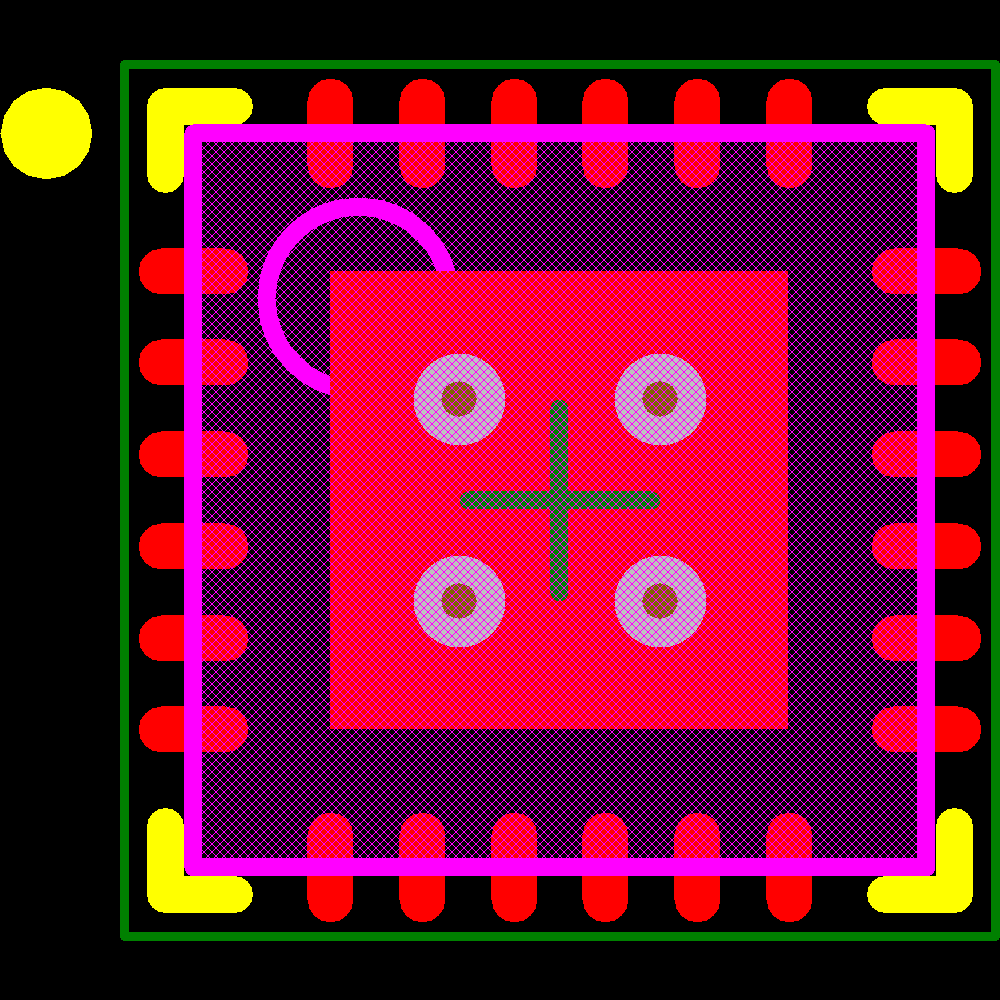

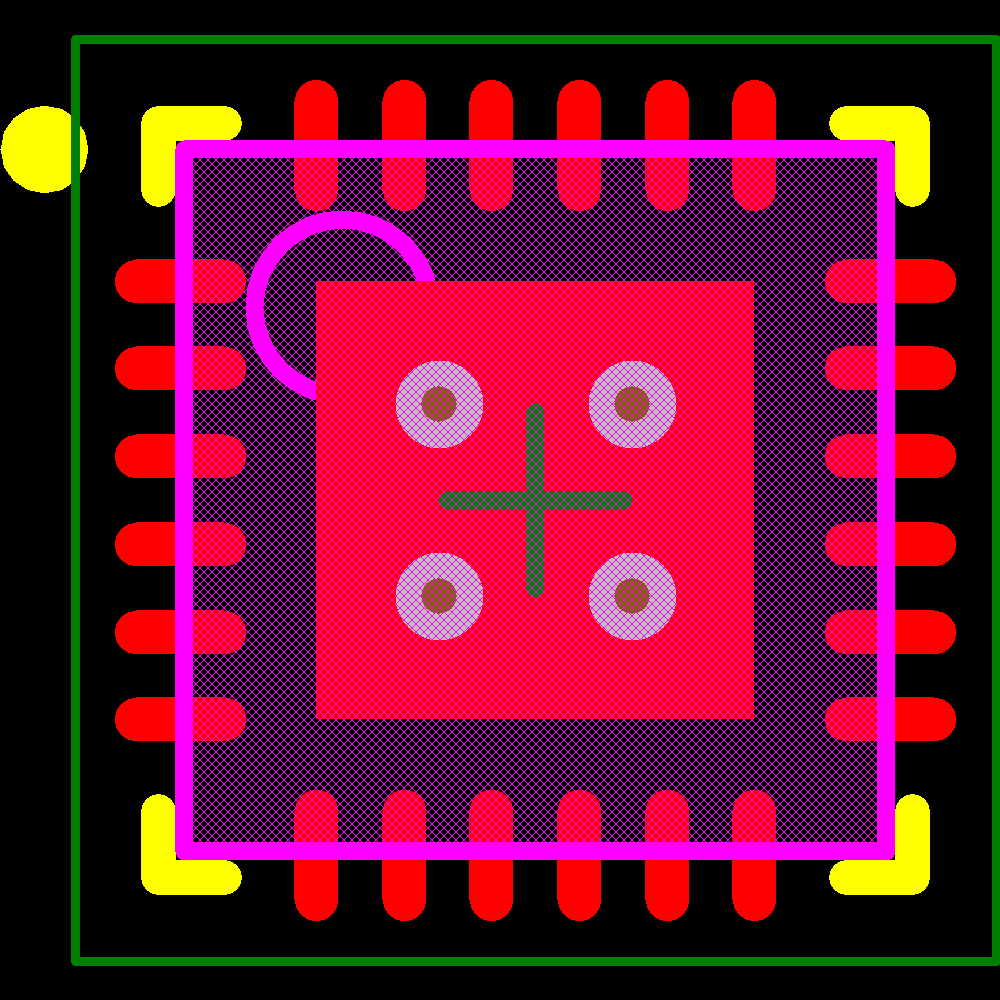

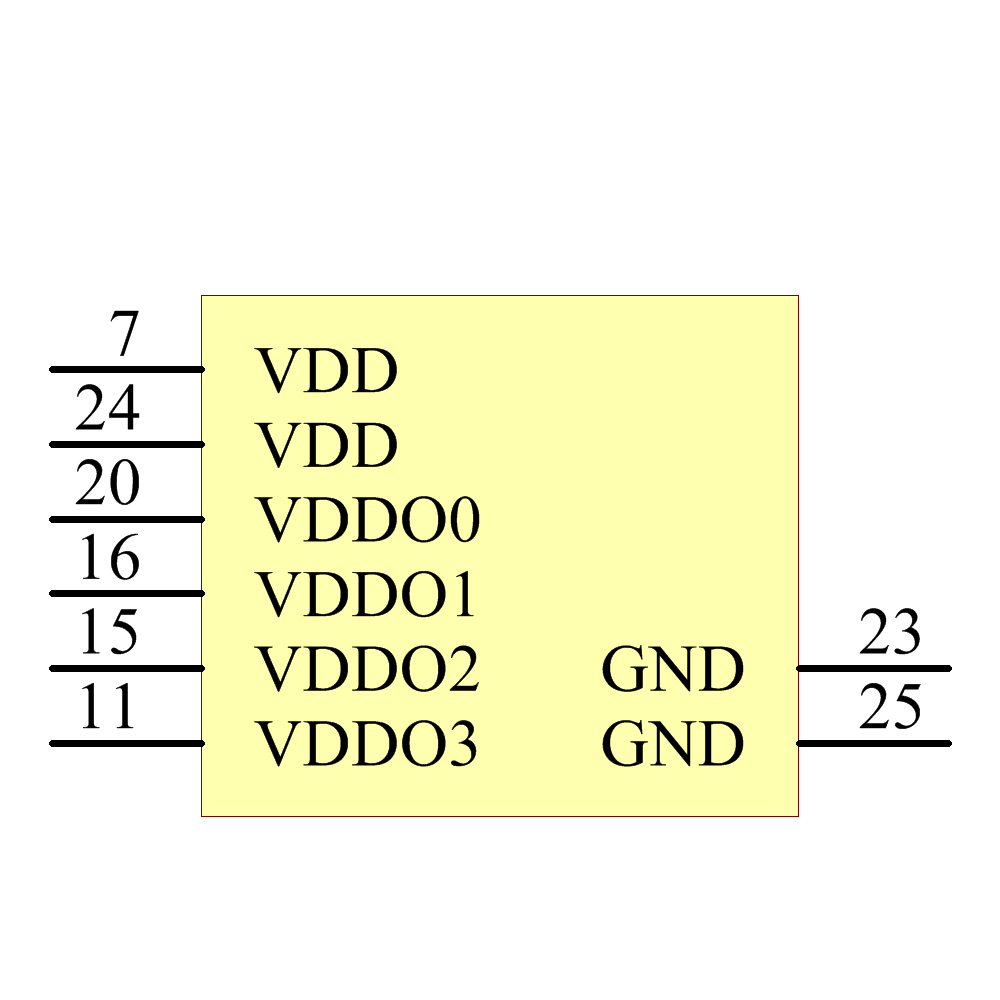

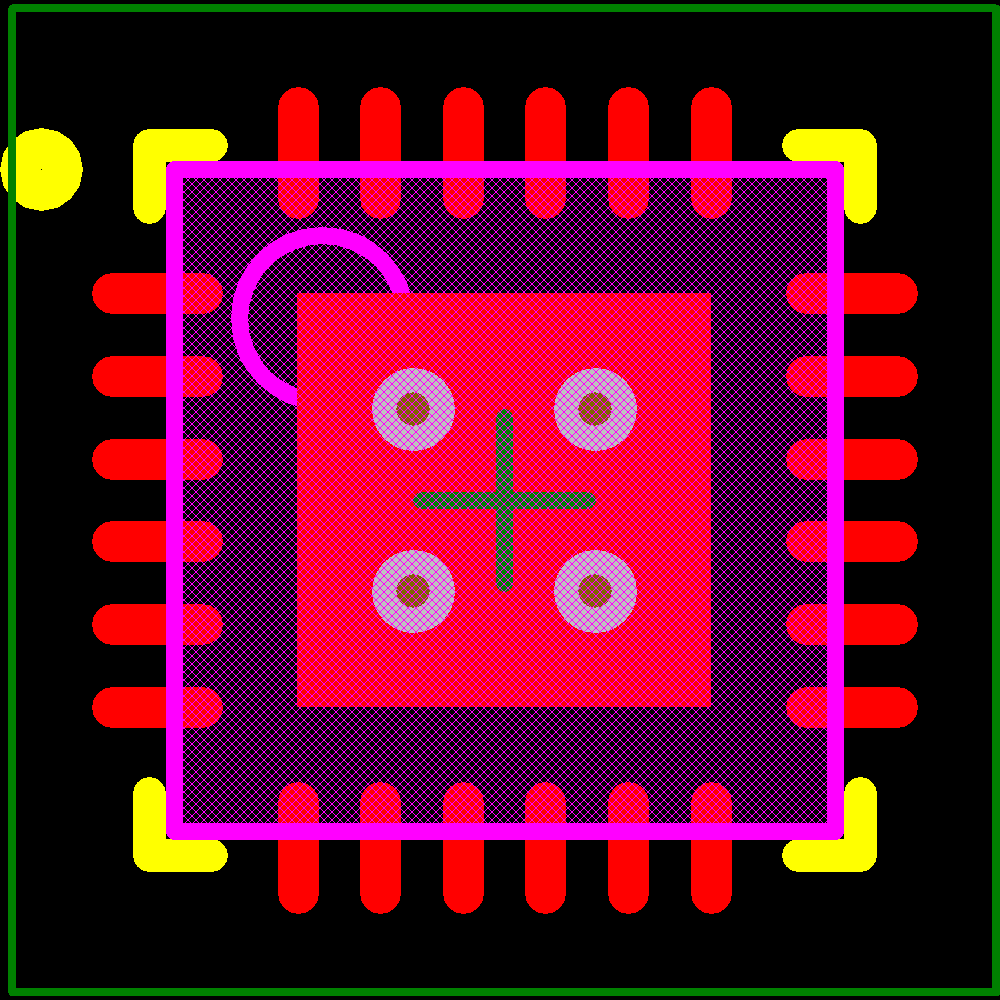

Images
