SI5374B-A-GL - Silicon Lab
Clock Generator 0.002MHz to 710MHz-IN 808MHz-OUT 80-Pin BGA Tray
Technical Details
| Case/Package | BGA |
| China RoHS | Compliant |
| Frequency | 710MHz |
| Height - Seated (Max) | 1.56mm |
| Input | Clock |
| Length | 10mm |
| Max Frequency | 808MHz |
| Max Operating Temperature | 85°C |
| Max Output Frequency | 808MHz |
| Max Supply Current | 1.1A |
| Max Supply Voltage | 1.89V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Nominal Supply Current | 1.1A |
| Number of Circuits | 1 |
| Number of Outputs | 8 |
| Number of Pins | 80 |
| Number of Terminals | 80 |
| Operating Supply Voltage | 1.8V |
| PLL | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Grade | Industrial |
| Terminal Pitch | 1mm |
| Weight | 50.008559mg |
| Width | 10mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

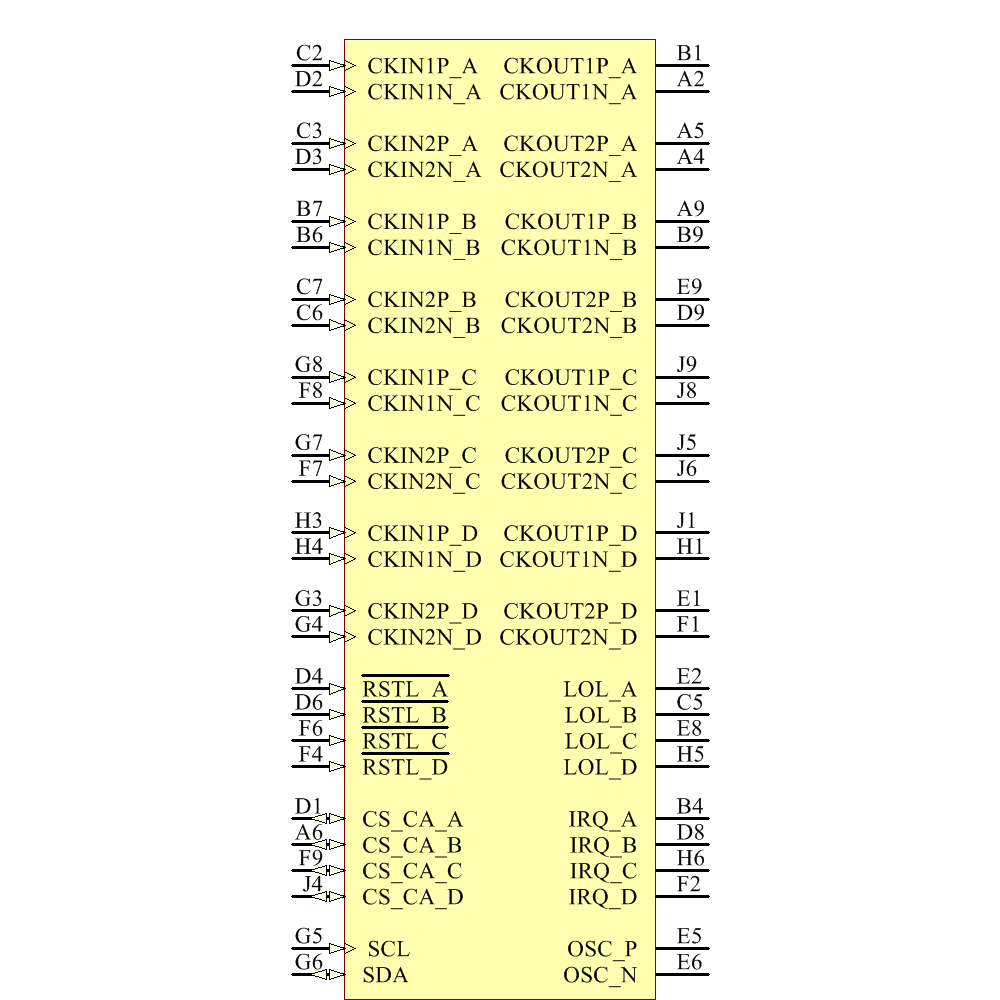

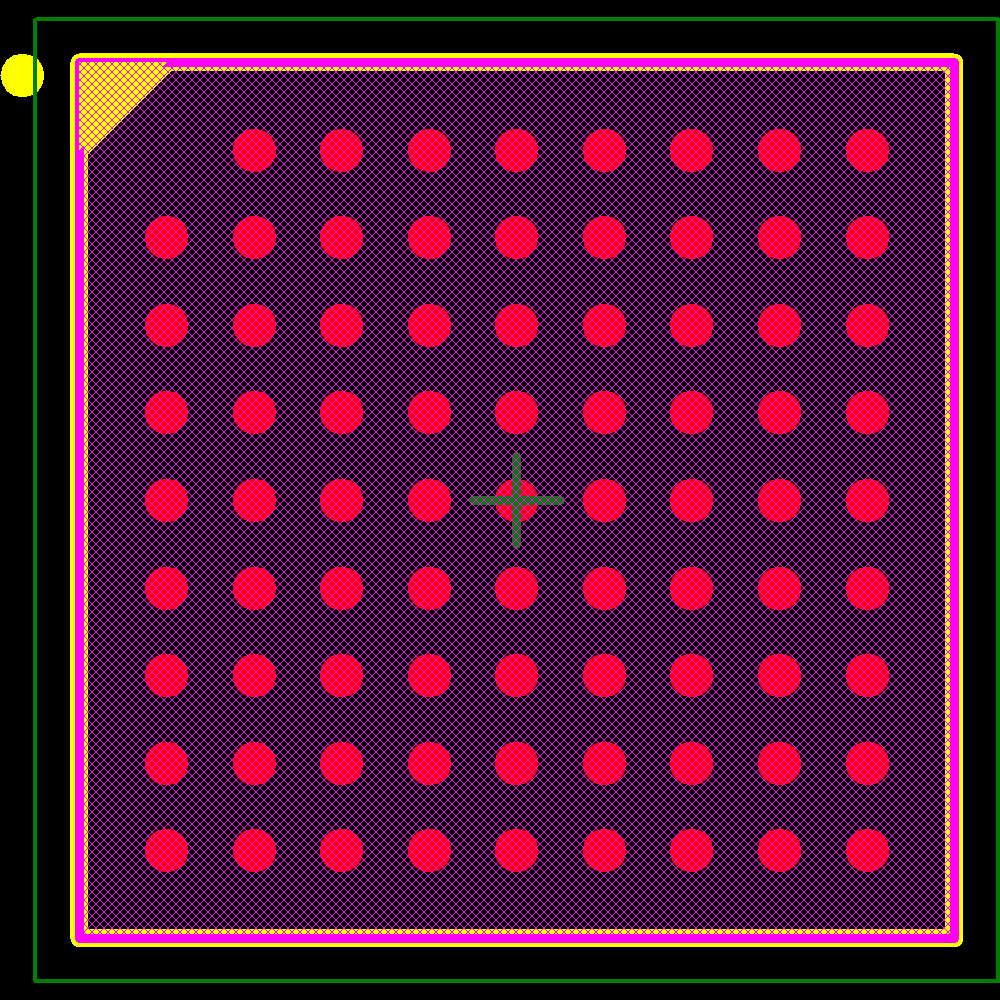

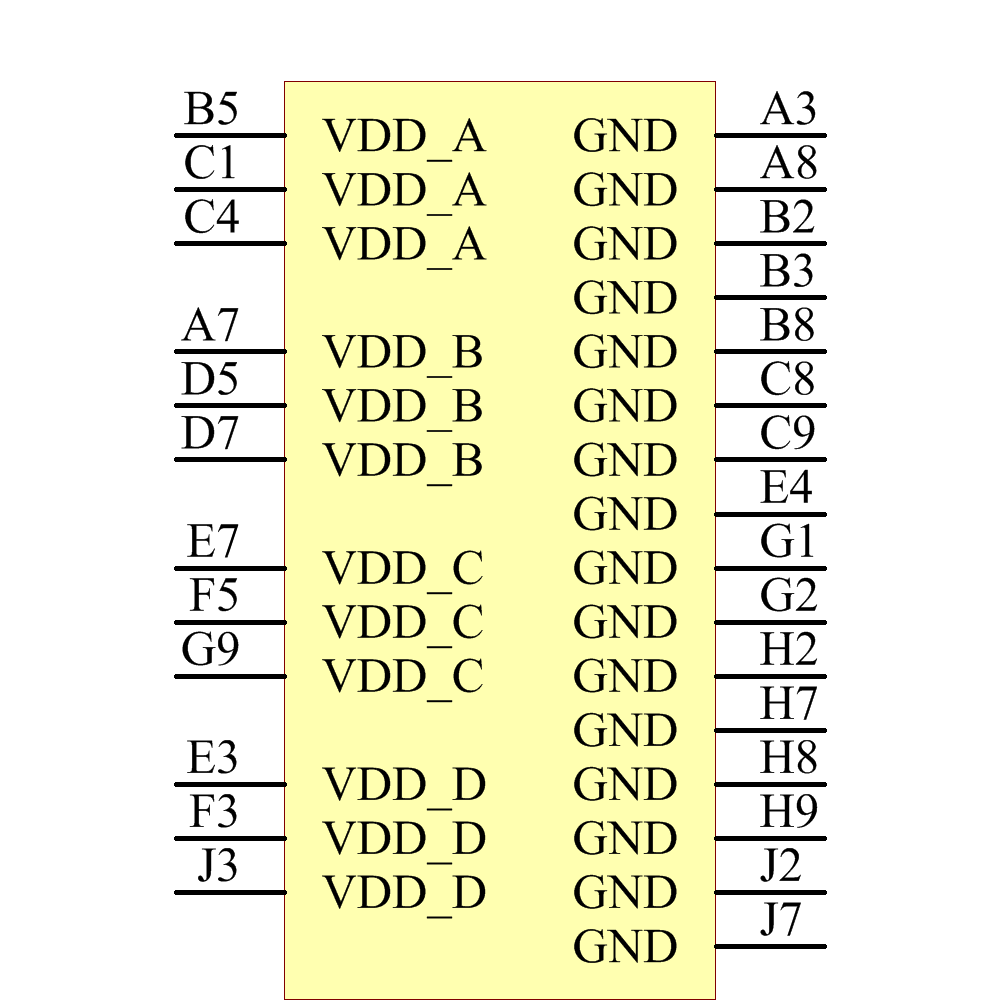

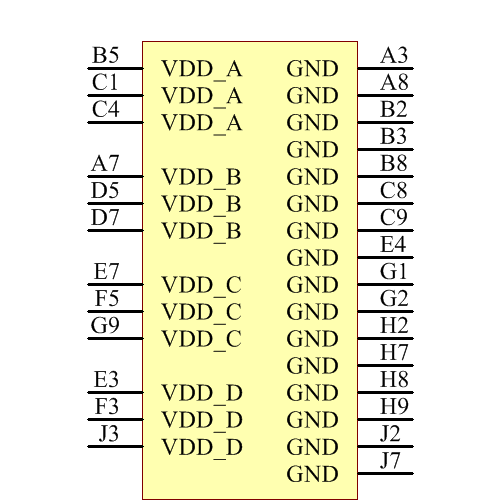

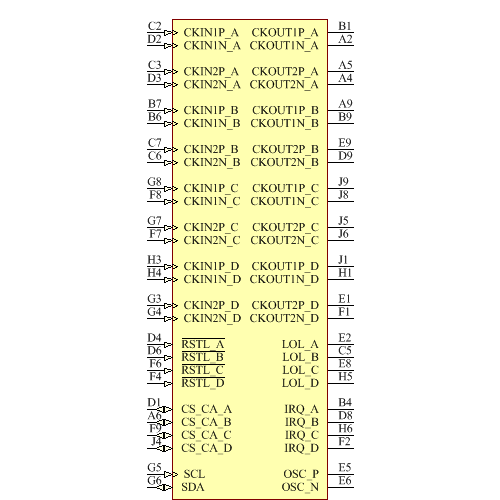

Images
