SI5376B-A-BL - Silicon Lab

Programmable PLL Clock Multiplier Single 0.002MHz to 808MHz 80-Pin PBGA

Case/Package	BGA
Export Control Classification Number (ECCN) Code	EAR99
Frequency	710MHz
Height - Seated (Max)	1.56mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Input	Clock
Introduction Date	2012-09-05
Length	10mm
Max Frequency	808MHz
Max Operating Temperature	85°C
Max Output Frequency	808MHz
Max Supply Current	1.1A
Max Supply Voltage	1.89V
Min Operating Temperature	-40°C
Min Supply Voltage	1.71V
Number of Circuits	1
Number of Pins	80
Number of Terminals	80
Operating Supply Voltage	1.8V
PLL	Yes
RoHS	Compliant
Temperature Grade	Industrial
Terminal Pitch	1mm
Width	10mm

RoHS : Unconfirmed

Unknown

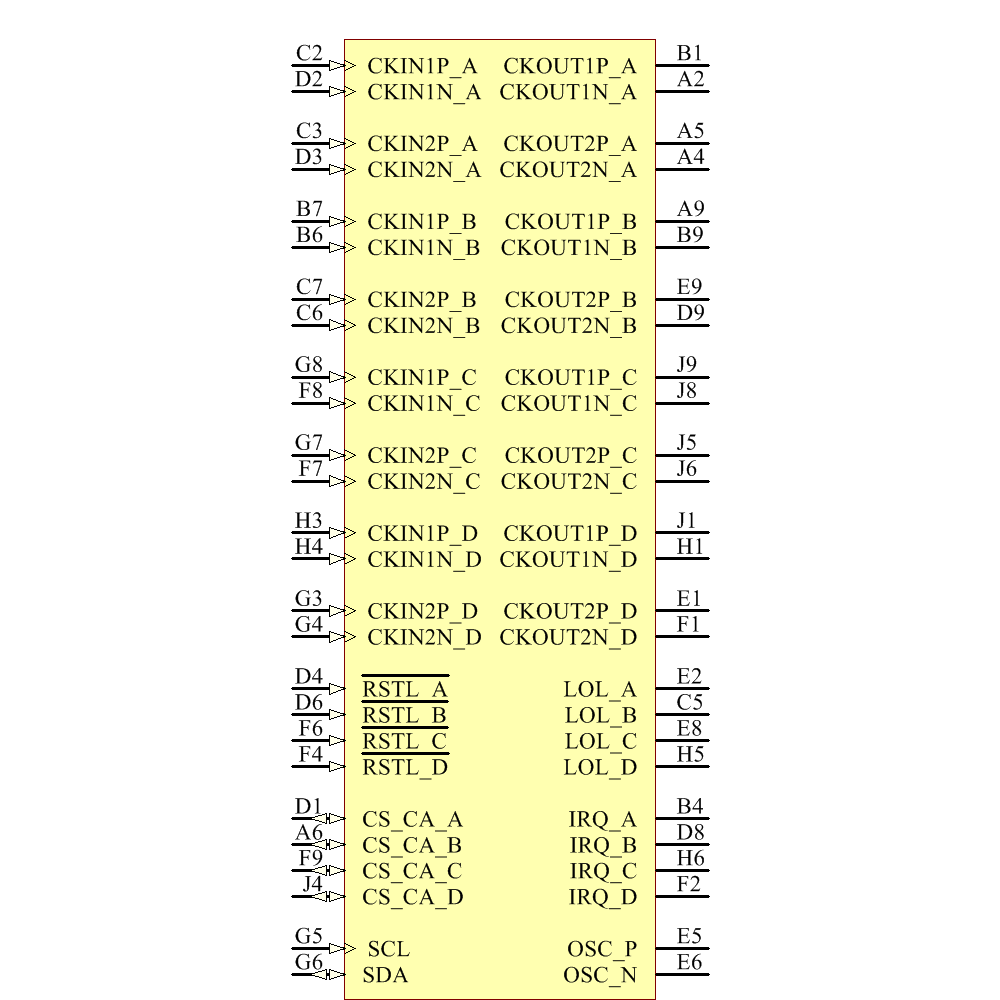

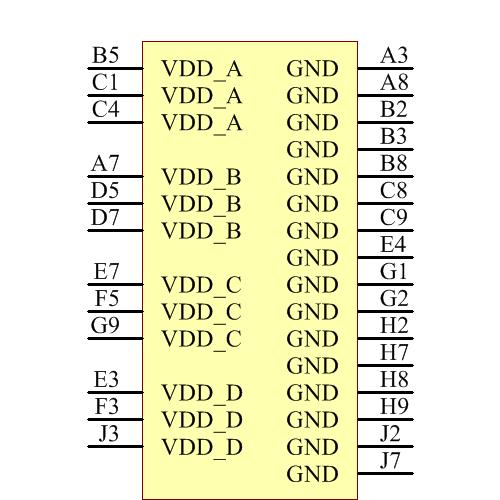

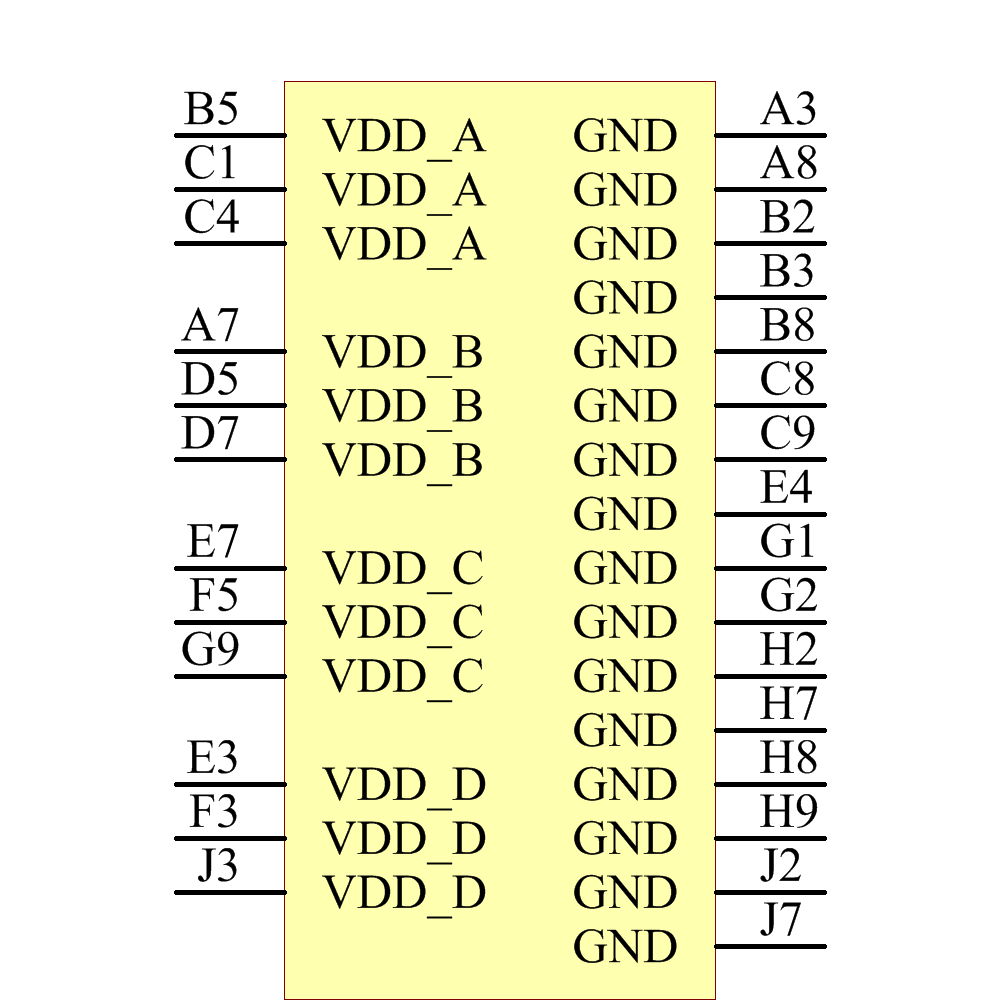

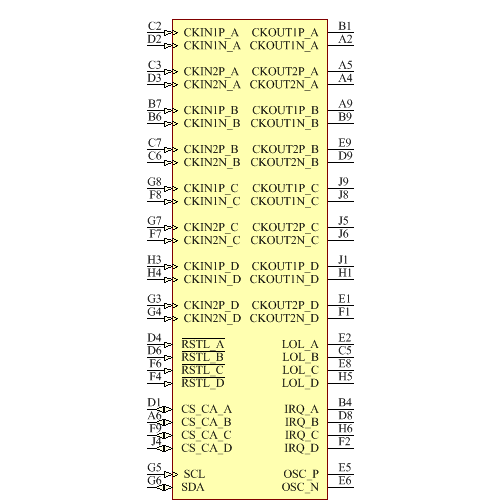

Symbol

‹ ›

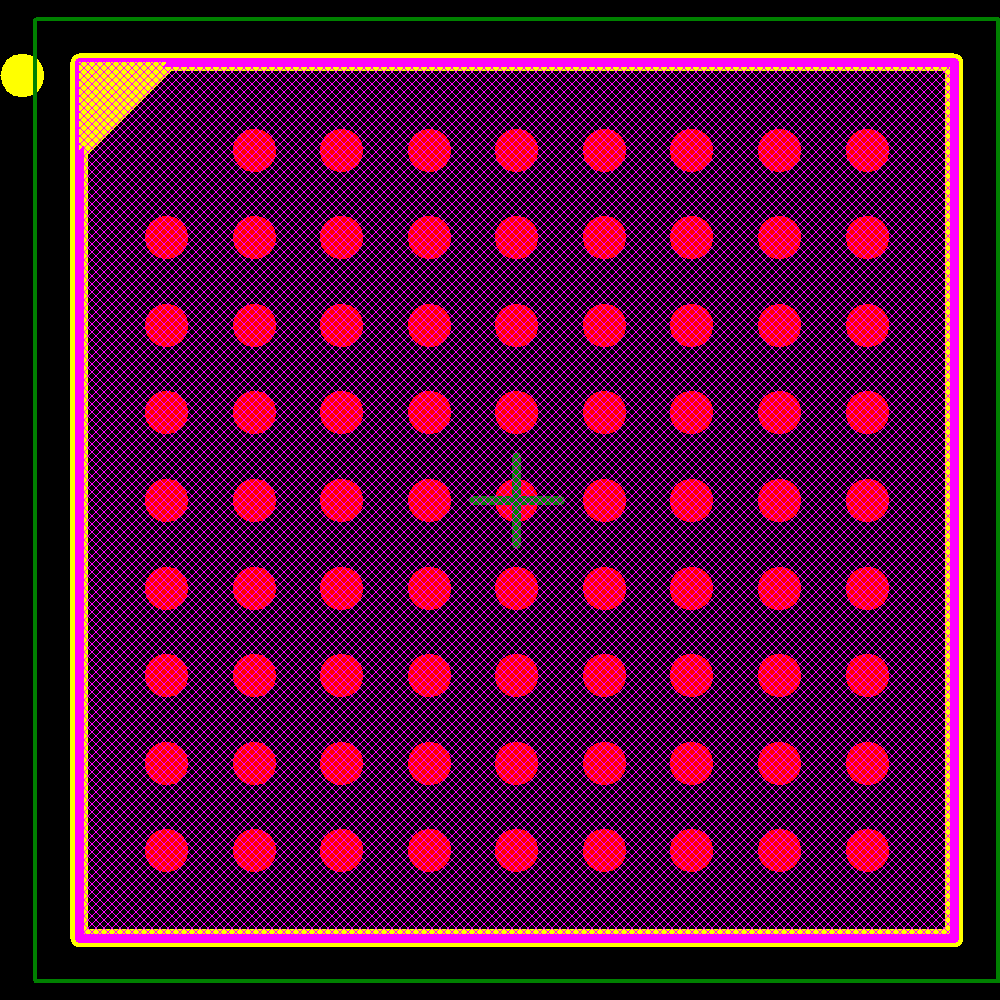

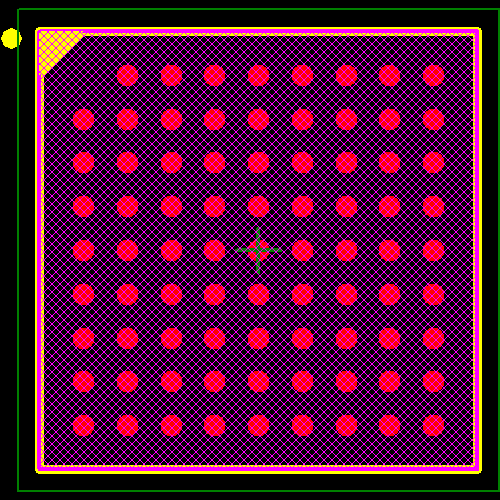

Footprint

‹ ›
