Technical Details
| Approvals | CQC, CSA, UR, VDE |
| Case/Package | SOP |
| Channel Type | Unidirectional |
| China RoHS | Compliant |
| Forward Voltage | 2.8V |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | 1.2A |
| Isolated Power | No |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Low Level Output Current | 500mA |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Operating Temperature | 125°C |
| Max Output Current | 4A |
| Max Power Dissipation | 300mW |
| Max Supply Voltage | 30V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 6.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operating Supply Current | 30mA |
| Operating Supply Voltage | 15V |
| Packaging | Tape & Reel (TR) |
| Propagation Delay | 50ns |
| Pulse Width Distortion (PWD) | 10ns |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Automotive |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 60ns |
| Type | General Purpose |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

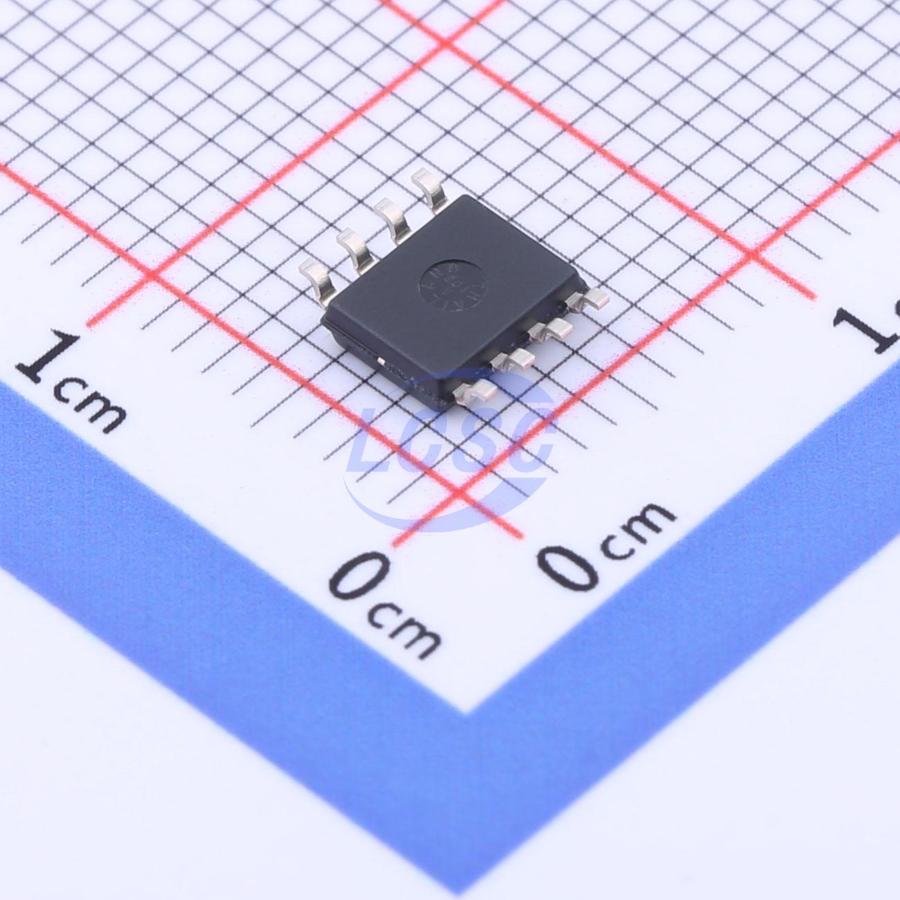

Images
LCSC
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production |
