Technical Details
| Case/Package | SOP |
| Channel Type | Unidirectional |
| China RoHS | Compliant |
| Data Rate | 150Mbps |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 2009-01-23 |
| Isolated Power | No |
| Isolation Voltage | 2500Vrms |
| Length | 9.9mm |
| Lifecycle Status | NRND |
| Max Data Rate | 150 |
| Max Operating Temperature | 125°C |
| Max Propagation Delay | 9.5µs |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 4 |
| Number of Circuits | 1 |
| Number of Outputs | 3 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| Operating Supply Current | 6mA |
| Polarity | Unidirectional |
| Propagation Delay | 9.5ns |
| Pulse Width Distortion (PWD) | 2.5ns |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Automotive |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 9.5ns |
| Type | General Purpose |
| Weight | 188.155785mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

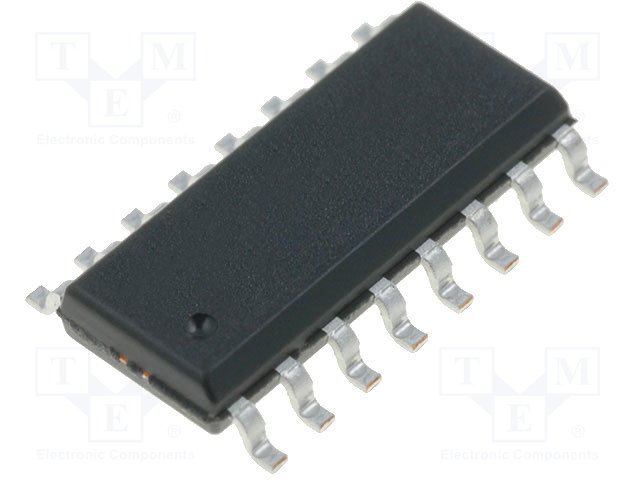

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
