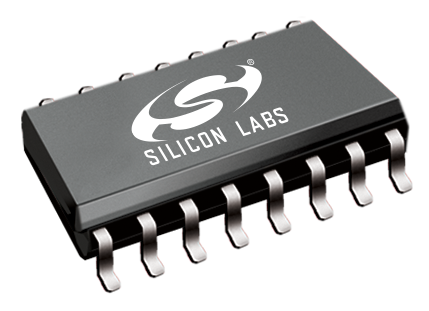

SI8641AB-B-IS1 - Silicon Lab
Digital Isolator, 4, 35 Ns, 2.5 V, 5.5 V, Nsoic, 16 Rohs Compliant: Yes
Technical Details
| Ambient Temperature Range High | 125°C |
| Case/Package | SOIC |
| Channel Type | Unidirectional |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Data Rate | 1Mbps |
| Depth | 1.25mm |
| Height | 1.75mm |
| Introduction Date | 2013-09-25 |
| Isolated Power | No |
| Isolation Voltage | 2500Vrms |
| Length | 9.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Data Rate | 150 |
| Max Input Current | 7.8mA |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 275mW |
| Max Propagation Delay | 13µs |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Outputs | 3 |
| Number of Pins | 16 |
| Operating Supply Current | 3.5mA |
| Packaging | Cut Tape |
| Polarity | Unidirectional |
| Propagation Delay | 35ns |
| Pulse Width Distortion (PWD) | 25ns |
| REACH SVHC | Yes |
| Rise Time | 4ns |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Type | General Purpose |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

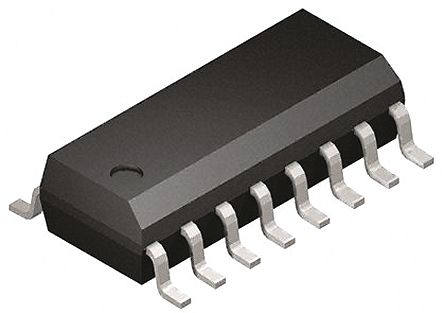

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Silicon Lab | Production | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | NRND | ||
| Silicon Lab | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
