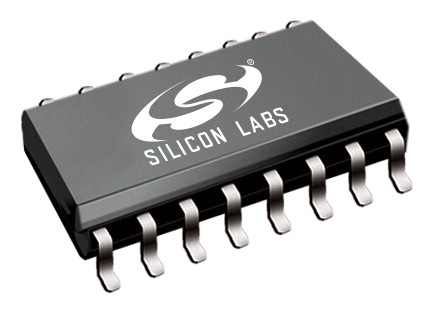

SI8645BC-B-IS1 - Silicon Lab
Quad Ch 3.75 kV Isolator, 150M, 4/0, NB SOIC16, lead free (def out = LO)
Technical Details
| Case/Package | SOIC |
| Channel Type | Unidirectional |
| China RoHS | Compliant |
| Data Rate | 150Mbps |
| Depth | 1.25mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 2011-07-14 |
| Isolated Power | No |
| Isolation Voltage | 3750Vrms |
| Length | 9.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | FULL PRODUCTION |
| Max Data Rate | 150 |
| Max Input Current | 9.2mA |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 275mW |
| Max Propagation Delay | 13µs |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Pins | 16 |
| Operating Supply Current | 17.5mA |
| Packaging | Cut Tape |
| Polarity | Unidirectional |
| Propagation Delay | 13ns |
| Pulse Width Distortion (PWD) | 4.5ns |
| REACH SVHC | Yes |
| Rise Time | 4ns |
| RoHS | Compliant |
| Turn-On Delay Time | 10ns |
| Type | General Purpose |
| Weight | 50.008559mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

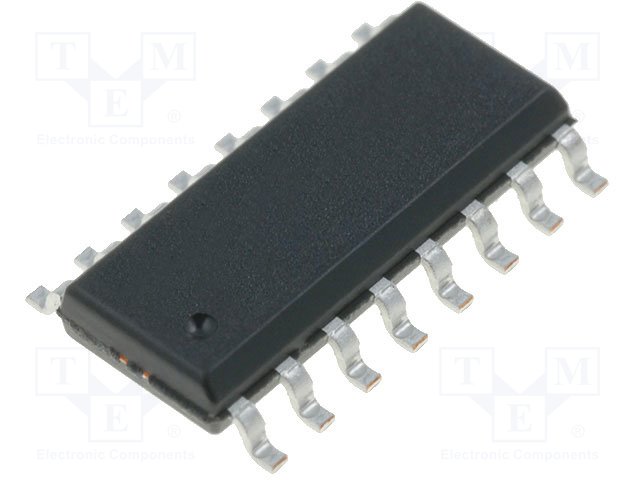

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NVE | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Production | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown | ||
| Silicon Lab | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| TME |
PL: 0
|
$ | 7.002 | 5.5597 | 5.5597 | 5.5597 | 5.5597 | 5.5597 | ||
