Integrated Circuits (ICs) > RF Semiconductors and Devices > RF Receivers, Transceivers

ZGM130S037HGN2 - Silicon Lab

Rf Transceiver, 905-930Mhz, Lga-64 Rohs Compliant: Yes |Silicon Labs ZGM130S037HGN2

Technical Details

Ambient Temperature Range High	85°C
Case/Package	SIP
Current - Receiving	9.9mA
Current - Transmitting	40.7mA
Data Rate	1Mbps
Flash Memory Size	512kB
Height	1.3mm
Height - Seated (Max)	1.3mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.01
Interface	I2C, I2S, IrDA, SPI, UART
Introduction Date	2019-11-22
Length	9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	FULL PRODUCTION
Max Frequency	930MHz
Max Junction Temperature (Tj)	105°C
Max Operating Temperature	85°C
Max Supply Voltage	3.8V
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Number of Digital IO	32
Number of GPIO	32
Number of Terminals	64
Operating Supply Voltage	1.8V
RAM Size	64kB
RoHS	Compliant
Schedule B	8517620050, 8517620050\|8517620050\|8517620050\|8517620050\|8517620050
Sensitivity (dBm)	-97.5dBm
Temperature Grade	Industrial
Terminal Pitch	500µm
Width	9mm

Compliance

RoHS : Unconfirmed

Images

Silicon Lab ZGM130S037HGN2 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

ZGM130S037HGN2 Symbol - Silicon Lab

ZGM130S037HGN2 Symbol - Silicon Lab

ZGM130S037HGN2 Symbol - Silicon Lab

ZGM130S037HGN2 Symbol - Silicon Lab

ZGM130S037HGN2 Symbol - Silicon Lab

ZGM130S037HGN2 Symbol - Silicon Lab

ZGM130S037HGN2 Symbol - Silicon Lab

ZGM130S037HGN2 Symbol - Silicon Lab

‹ ›

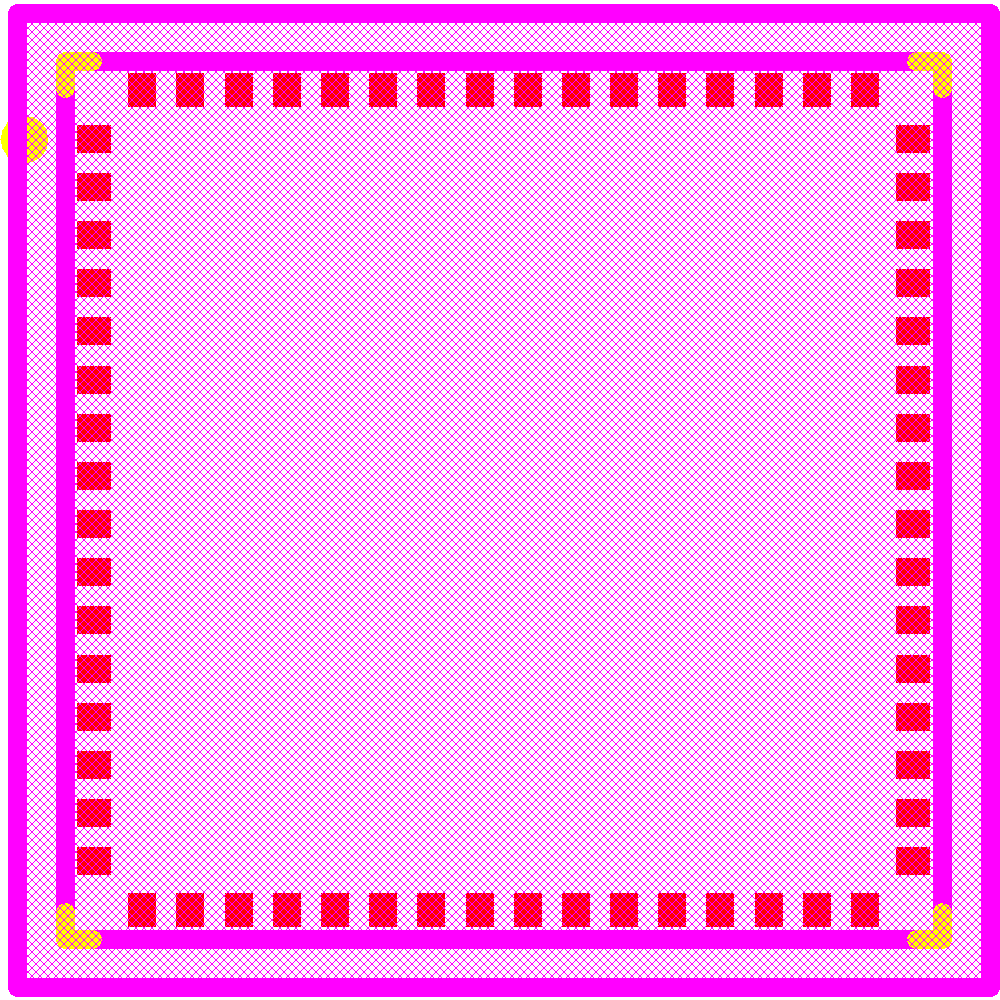

Footprint

ZGM130S037HGN2 Footprint - Silicon Lab

ZGM130S037HGN2 Footprint - Silicon Lab

ZGM130S037HGN2 Footprint - Silicon Lab

ZGM130S037HGN2 Footprint - Silicon Lab

‹ ›

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

RS

DE: 25

$

9.2949

8.8203

8.5984

8.5984

8.5984

RS

DE: 25

$

9.2949

8.8203

8.5984

8.5984

8.5984

RS

DE: 25

$

9.9704

9.9704

Verical

US: 112

$

9.496

9.496

9.496

9.496

9.496

9.496

Arrow Electronics

US: 112

$

2.39

2.39

2.39

2.39

2.39

2.39

DigiKey

336-ZGM130S037HGN2-ND

DE: 1882

$

14.682

12.7675

14.682

14.682

10.1465

9.8824

Farnell

DE: 99

$

14.4724

11.3536

10.6632

10.6632

10.6632

10.6632

Mouser

634-ZGM130S037HGN2

US: 449

$

11.26

10.13

9.54

9.07

9.07

9.07

Newark

US: 99

$

11.17

10.21

9.59

9.30

9.30

9.30

element14 APAC

SG: 99

$

12.0503

11.0259

10.1001

9.7359

9.5158

9.5158

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Win Source

1346965-ZGM130S037HGN2

CN: 13950

$

16.0084

13.4264

13.4264

13.4264

13.4264

Worldway Electronics

HK: 34566

$

2.5835

2.5835

2.5044

2.3726

2.3726

AAA CHIPS

HK: 4185

$

13.0643

10.7201

10.7201

10.385

9.7147

9.7147

LCSC

CN: 9

$

16.9117

16.1556

14.8445

13.7004

13.7004

13.7004

Augswan

CN: 4703

$

13.9128

13.6345

13.6345

13.2172

12.7998

12.2433

SHENGYU ELECTRONICS

CN: 4703

$

7.0688

6.9274

6.9274

6.72

6.50

6.22

Fly-Wing Technology

HK: 4128

$

12.4422

10.2097

10.2097

9.8905

9.2521

9.2521

Ansinor

CN: 1931

$

12.1147

12.1147

10.4758

8.3312

8.1358

Bettlink

HK: 1891

$

11.4062

10.0495

10.0495

9.1359

8.055

7.599

XingHuan International

CN: 5000

$

Abacus Technologies

US: 10771

$

Quest

US: 0

$
