SN74LVC1G32DBVR - Texas Instruments

IC GATE OR 1CH 2-INP SOT23-5

Datasheet at TI.com

Technical Details

Case/Package	SOT-23
Height	1.15mm
High Level Output Current	-32mA
Lead Free	Lead Free
Length	2.9mm
Logic Function	OR GATE
Low Level Output Current	32mA
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	32mA
Max Supply Voltage	5.5V
Min Supply Voltage	1.65V
Mount	Surface Mount
Number of Bits	1
Number of Circuits	1
Number of Elements	1
Number of Gates	1
Number of Input Lines	2
Number of Inputs	2
Number of Output Lines	1
Number of Outputs	1
Number of Pins	5
Operating Supply Voltage	5V
Output Current	32mA
Package Quantity	3000
Packaging	Tape and Reel
Propagation Delay	4ns
Quiescent Current	10uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	74LVC
Technology	CMOS
Termination	SMD/SMT
Turn-On Delay Time	4.5ns
Weight	0.000557oz
Width	1.6mm

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

Texas Instruments SN74LVC1G32DBVR | Mouser

Mouser

Texas Instruments SN74LVC1G32DBVR | Element14

Element14

Texas Instruments SN74LVC1G32DBVR | Verical

Verical

Texas Instruments SN74LVC1G32DBVR | Farnell

Farnell

Texas Instruments SN74LVC1G32DBVR | Rs

Rs

Texas Instruments SN74LVC1G32DBVR | Distrelec

Distrelec

Datasheets

Texas Instruments

Official datasheet

Official datasheet

Official datasheet

Official datasheet

Arrow Electronics

SN74LVC1G32DBVR datasheet (pdf)

Element14

SN74LVC1G32DBVR datasheet (pdf)

SN74LVC1G32DBVR datasheet (pdf)

Verical

SN74LVC1G32DBVR datasheet (pdf)

Conrad

SN74LVC1G32DBVR datasheet (pdf)

Lifecycle Status Indicator

Volume Production

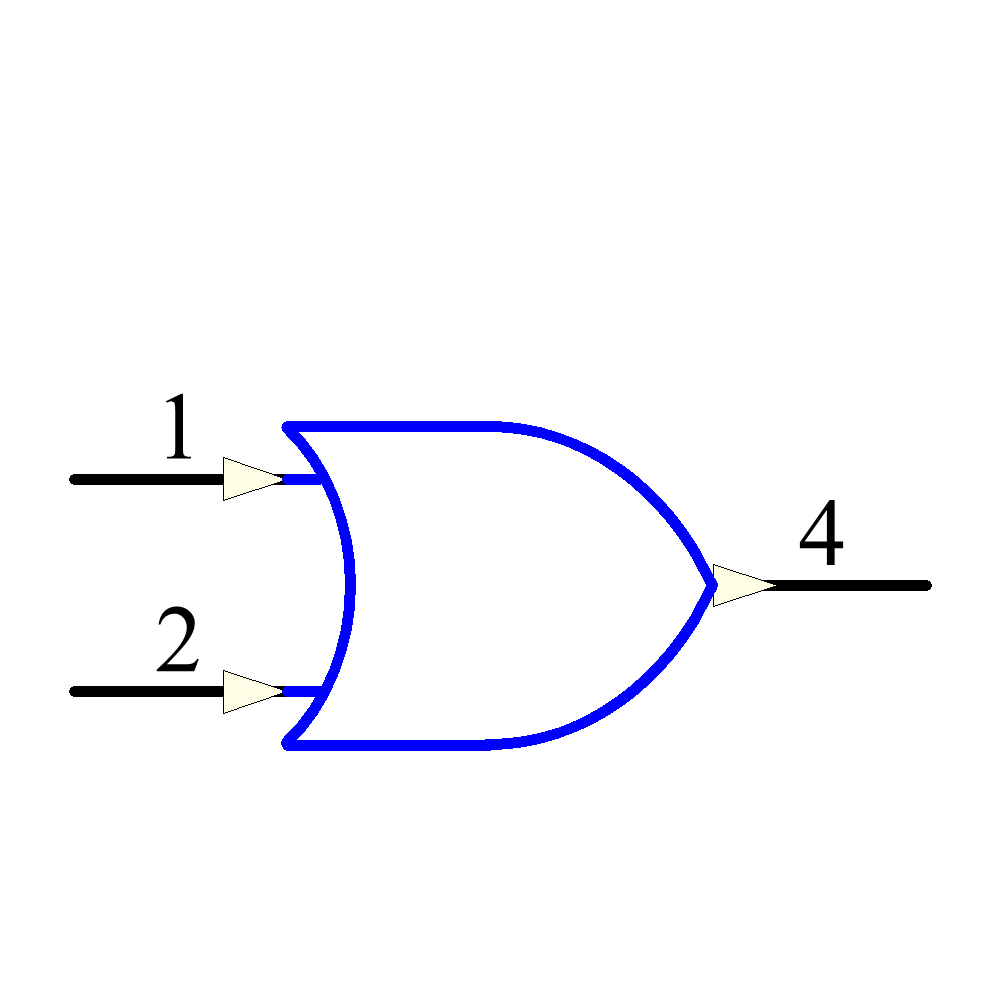

Symbol
