594D476X0020C2T - Sprague
Cap Tant Solid 47uF 20V C CASE 20% (7.1 X 3.2 X 2.5mm) SMD 0.14 Ohm 125°C T/R
Technical Details
| Capacitance | 47µF |
| Case/Package | 2812 |
| China RoHS | Compliant |
| Country of Origin | Israel |
| Depth | 3.2mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESR (Equivalent Series Resistance) | 140mΩ |
| Features | General Purpose |
| Height | 2.5mm |
| Height - Seated (Max) | 2.794mm |
| Harmonized Tariff Schedule (HTS) Code | 8532.21.00.50 |
| Introduction Date | 2001-08-30 |
| Leakage Current | 9.4µA |
| Length | 7.1mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Packaging | Tape & Reel (TR) |
| REACH SVHC | Yes |
| Ripple Current | 890mA |
| RoHS | Compliant |
| Tolerance | 20% |
| Voltage Rating | 20V |
| Voltage Rating (DC) | 20V |
| Width | 3.2mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

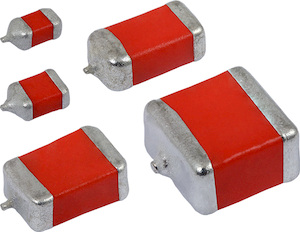

Images
