RACF164DJT10R0 - Stackpole Electronics
Res Thick Film Array 10 Ohm 5% ±200ppm/°C ISOL Molded 8-Pin 1206(4 X 0603) Concave SMD Paper T/R
Technical Details
| Case/Package | SMD/SMT |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Circuit Type | Isolated |
| Country of Origin | Japan, Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 600µm |
| Introduction Date | 2010-12-23 |
| Length | 3.2004mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 62.5mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 10Ω |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Tolerance | 5% |
| Width | 3.2mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

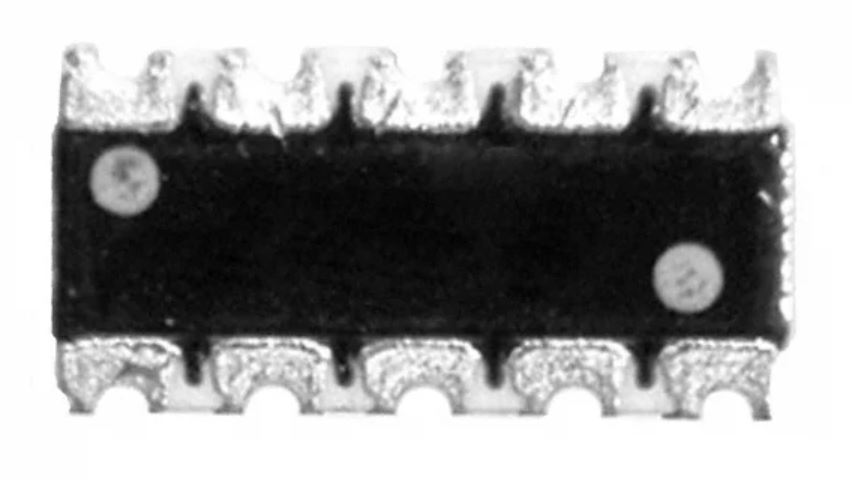

Images
Master Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| KOA Speer | Obsolete | ||
| KOA Speer | Obsolete | ||
| KOA Speer | Obsolete | ||
| KOA Speer | Obsolete | ||
| International Resistive | Unknown | ||
| Venkel | Obsolete | ||
| Panasonic | Production | ||
| Panasonic | Unknown | ||
| CTS Components | Production | ||
| Vishay | Obsolete |
