RAVF104DJT36R0 - Stackpole Electronics
Res Thick Film Array 36 Ohm 5% 0.25W(1/4W) ±200ppm/C ISOL Molded 8-Pin 0804(4 X 0402) Convex SMD Automotive T/R
Technical Details
| Case/Package | SMD/SMT |
| Circuit Type | Isolated |
| Height | 350µm |
| Lead Free | Lead Free |
| Length | 1mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Digi-Reel® |
| Power Dissipation | 250mW |
| Power Per Element | 62.5mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 36Ω |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Tolerance | 5% |
| Width | 1mm |
| Working Voltage | 25V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

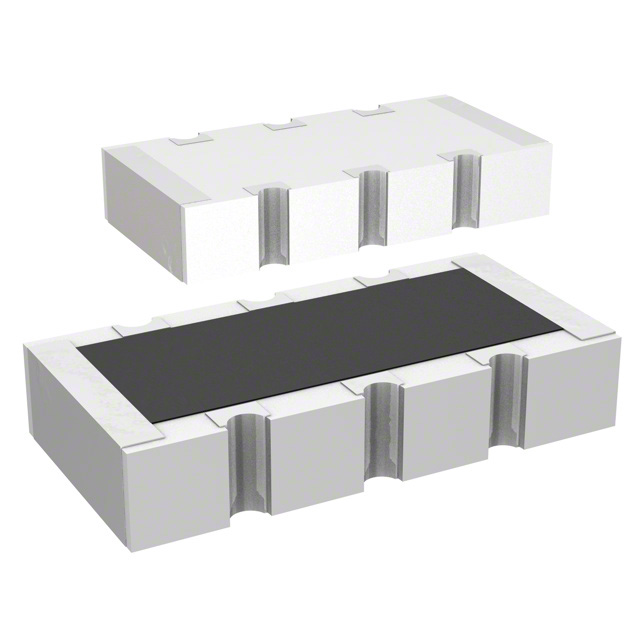

Images
Master Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| ASJ | Production | ||
| Yageo Group | Production | ||
| NIC Components | Production | ||
| ROHM | Production | ||
| ROHM | Obsolete | ||
| Stackpole Electronics | Production | ||
| CTS Components | Production | ||
| CTS Components | Production | ||
| KOA Speer | Obsolete | ||
| KOA Speer | Obsolete |
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Fly-Wing Technology |
HK: 4565
|
$ | 0.088 | 0.0493 | 0.0493 | 0.0373 | 0.0199 | 0.0199 | ||
| Augswan |
CN: 58
|
$ | 0.10 | 0.098 | 0.098 | 0.10 | 0.09 | 0.09 | ||
