RAVF164DJT270R - Stackpole Electronics
Res Thick Film Array 270 Ohm 5% 200ppm/C ISOL Molded 8-Pin 1206(4 X 0603)
Technical Details
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Circuit Type | Isolated |
| Country of Origin | Japan, Mainland China, Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 500µm |
| Introduction Date | 2010-10-13 |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 62.5mW |
| REACH SVHC | Yes |
| Resistance | 270Ω |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Tolerance | 5% |
| Width | 1.6mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

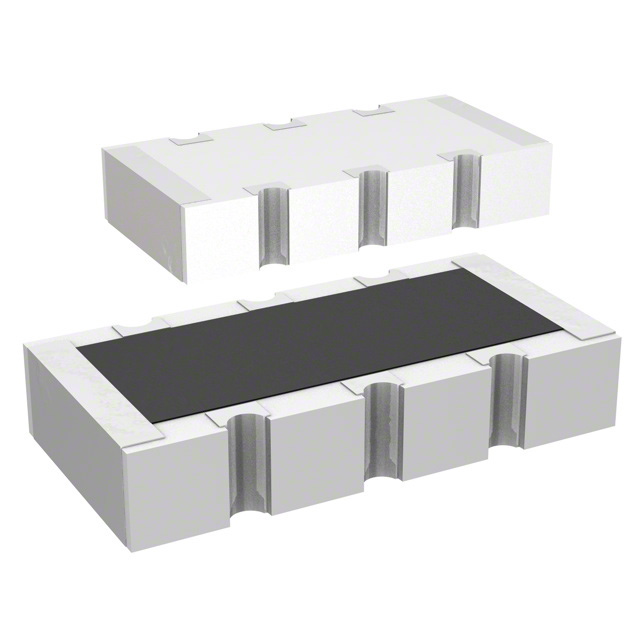

Images
Master Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| ROHM | Unknown | ||
| Panasonic | Production | ||
| KOA Speer | Obsolete | ||
| KOA Speer | Obsolete | ||
| TT Electronics | Production | ||
| KOA Speer | Obsolete | ||
| ROHM | Production | ||
| Stackpole Electronics | Obsolete | ||
| Panasonic | Production | ||
| KOA Speer | Obsolete |
