Technical Details
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Circuit Type | Isolated |
| Country of Origin | Japan, Mainland China, Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 500µm |
| Introduction Date | 2010-10-13 |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 62.5mW |
| REACH SVHC | Yes |
| Resistance | 510Ω |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Tolerance | 5% |
| Width | 1.6mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

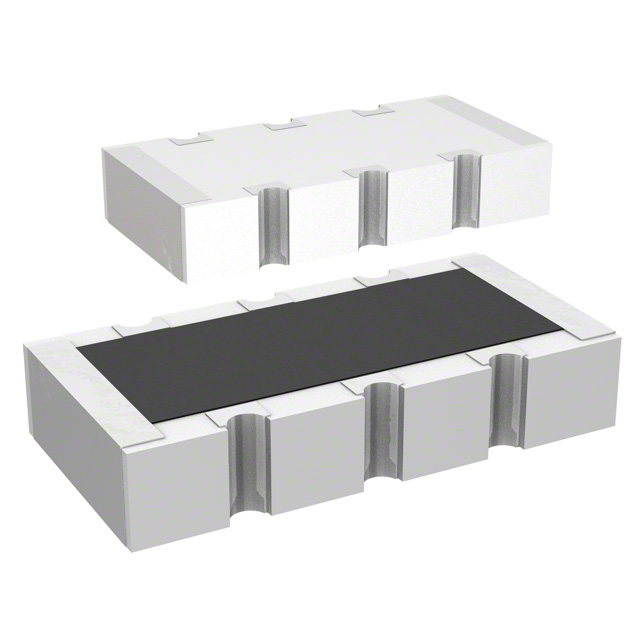

Images
Master Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 0.0075 | |||||||
| Onlinecomponents.com |
US: 0
|
$ | 0.0058 | |||||||
| Master Electronics |
US: 0
|
$ | 0.0058 | |||||||
| Avnet |
US: 0
|
$ | 0.0039 | |||||||
| Arrow Electronics |
US: 0
|
$ | 0.005 | |||||||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Augswan |
CN: 64
|
$ | 0.006 | 0.006 | 0.006 | 0.01 | 0.01 | 0.01 | ||
