RMCF0402JT750R - Stackpole Electronics
Res Thick Film 0402 750 Ohm 5% 0.063W(1/16W) ±100ppm/C Pad SMD Automotive T/R
Technical Details
| Case/Package | 0402 |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| China RoHS | Non-Compliant |
| Composition | Thick Film |
| Contact Plating | Tin |
| Country of Origin | Japan, Mainland China, Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Features | Automotive AEC-Q200 |
| Height | 300µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.30 |
| Introduction Date | 2011-01-07 |
| Length | 1mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 63mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Number of Terminations | 2 |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 63mW |
| Power Rating | 63mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 750Ω |
| RoHS | Compliant |
| Schedule B | 8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045 |
| Temperature Coefficient | 100ppm/°C |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Width | 500µm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

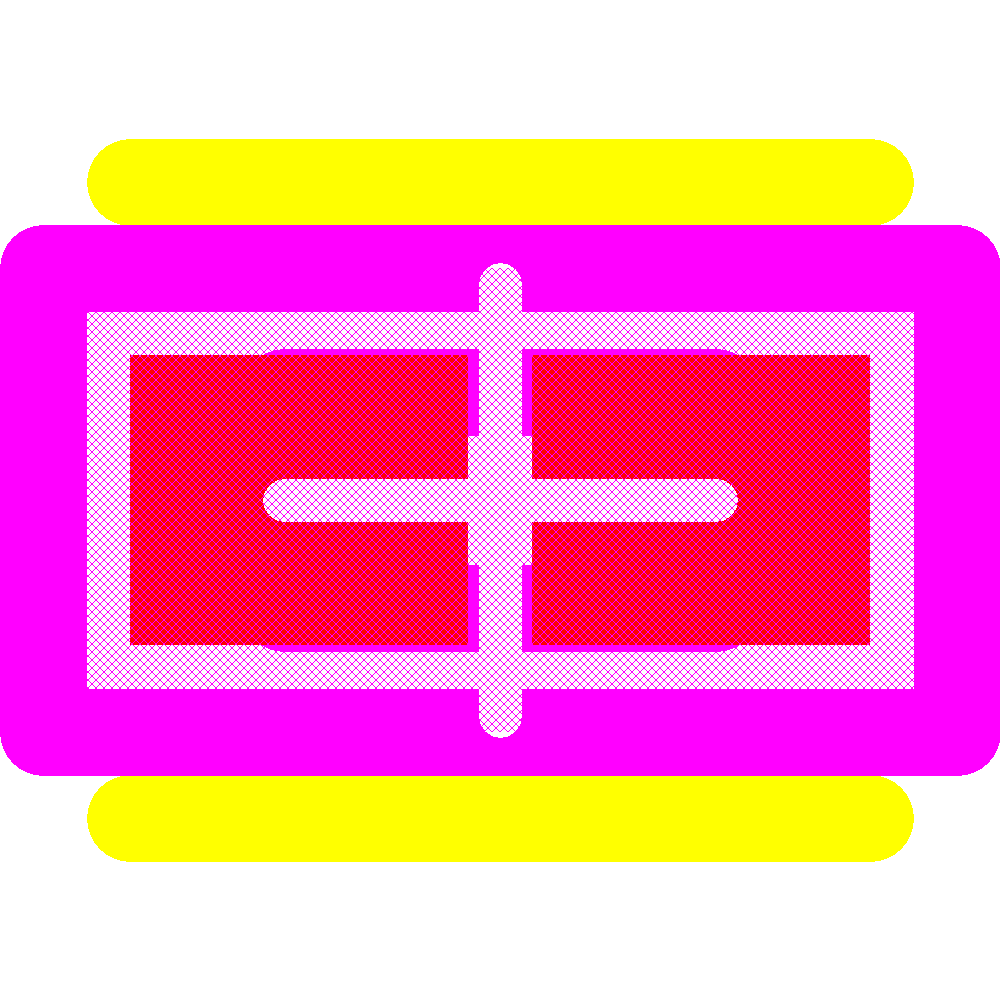

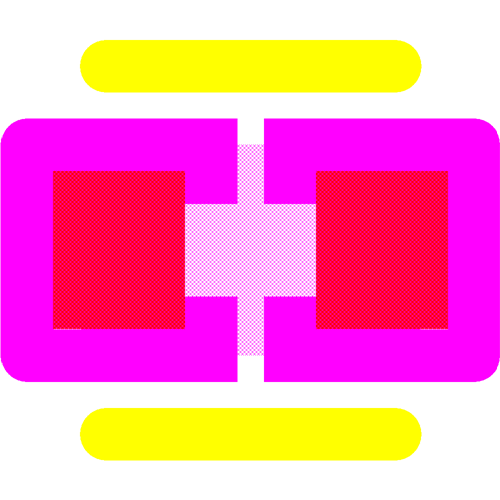

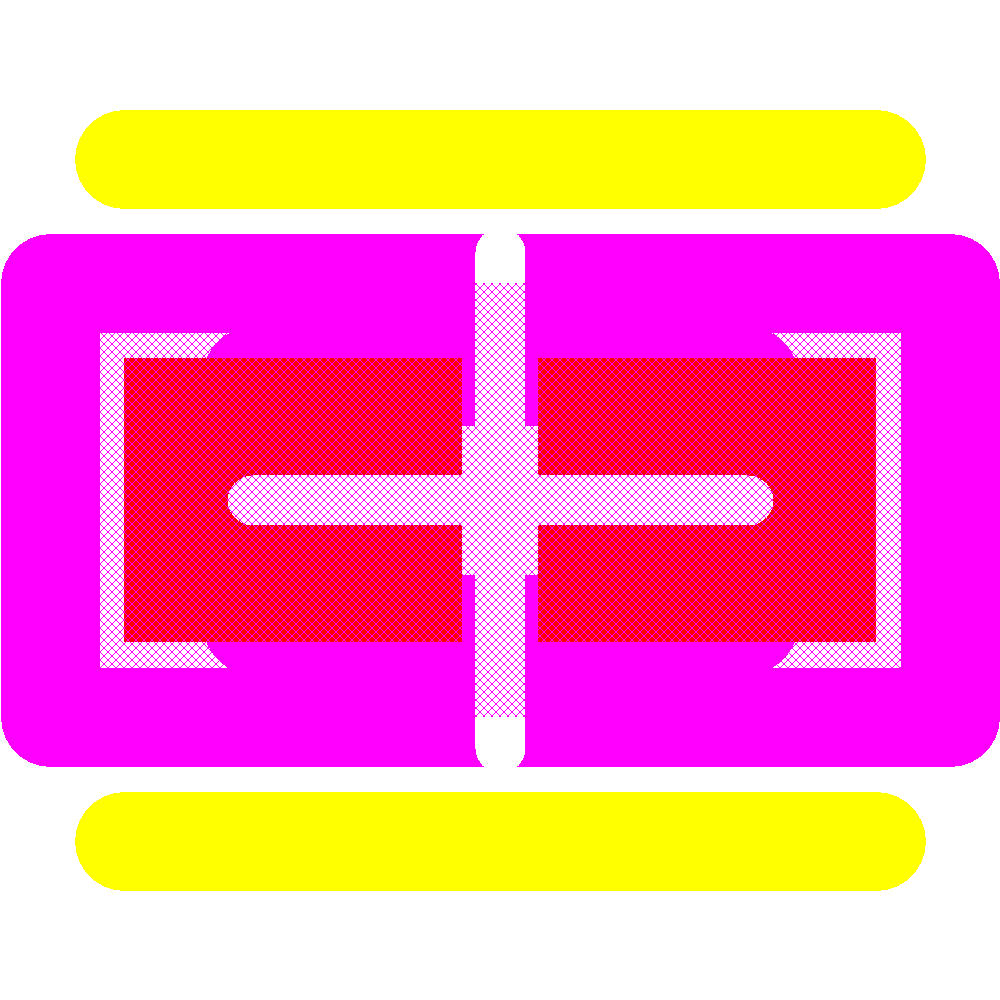

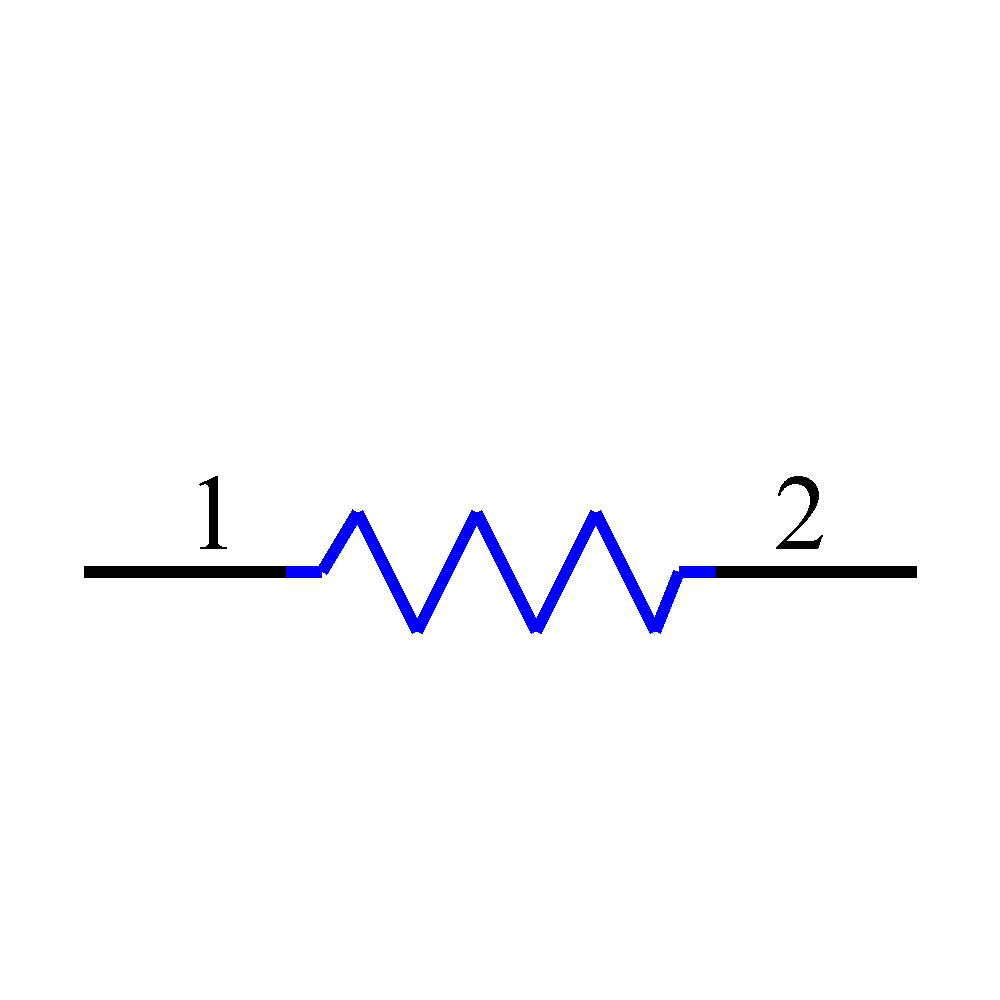

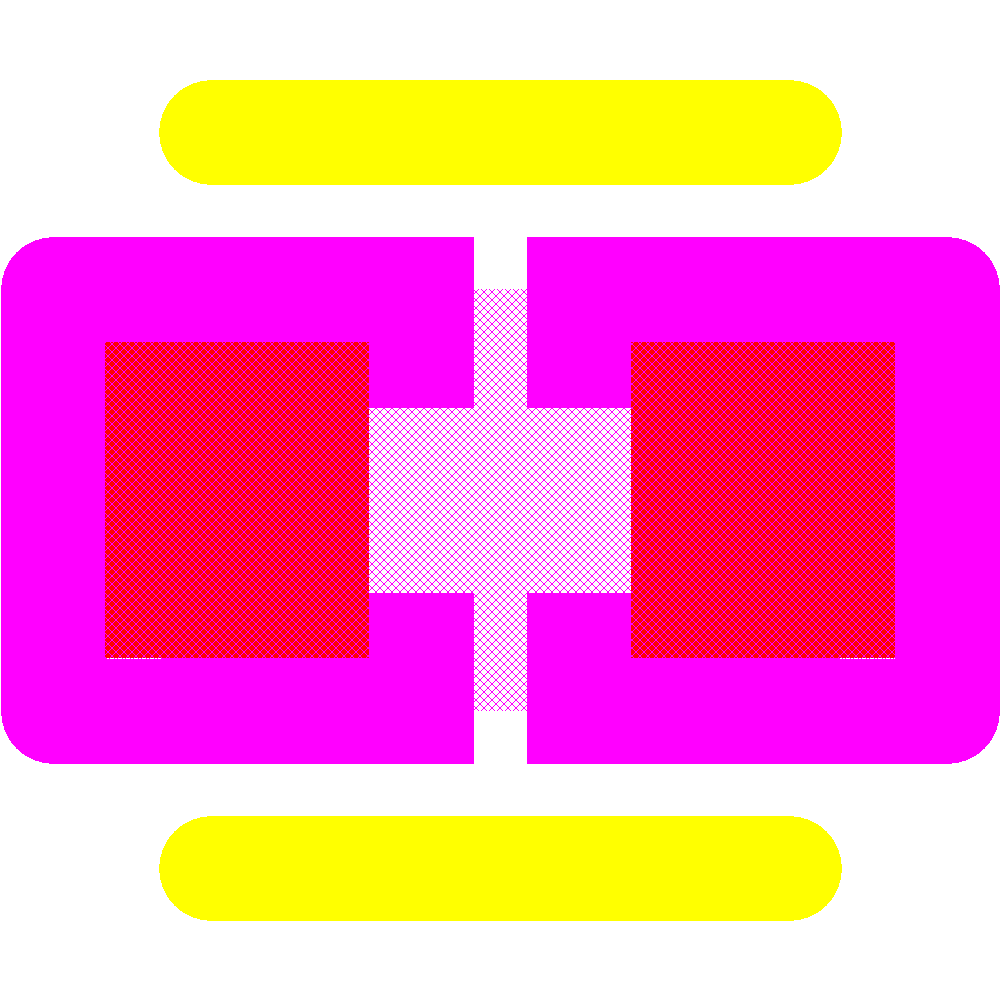

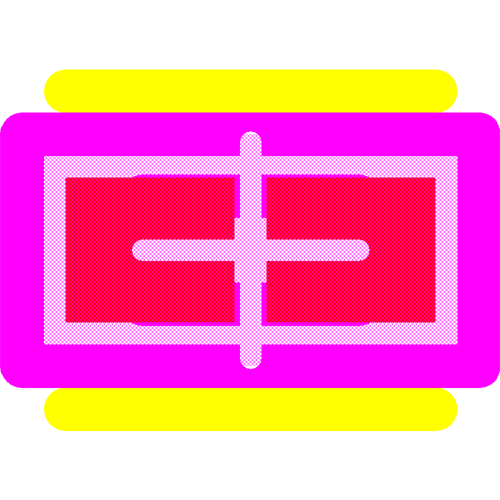

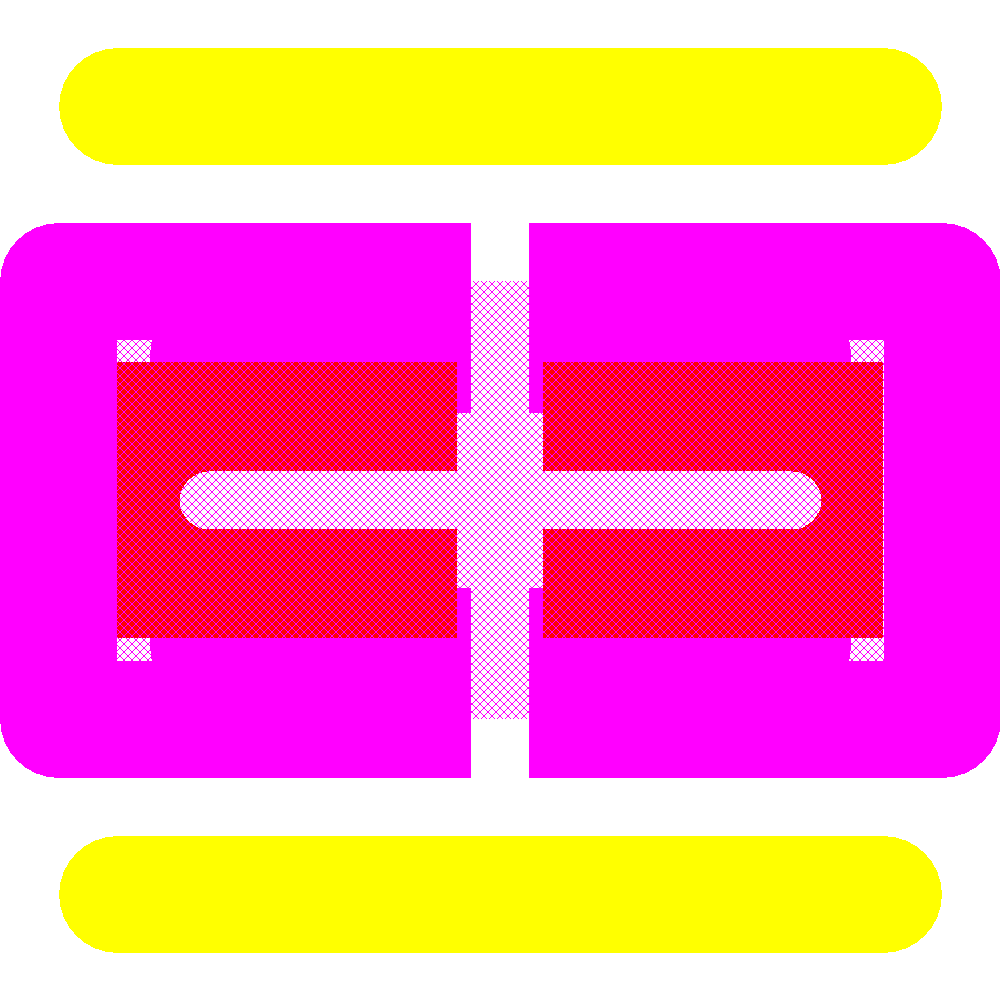

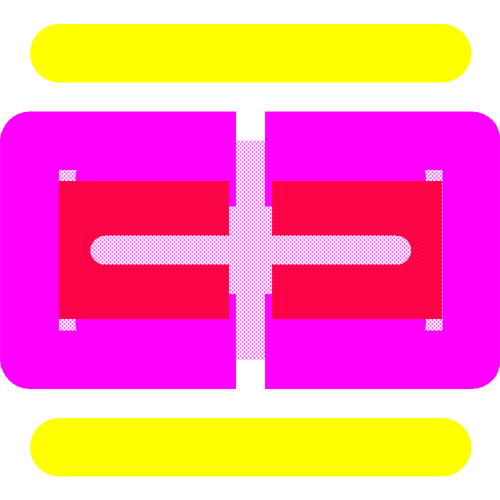

Images
