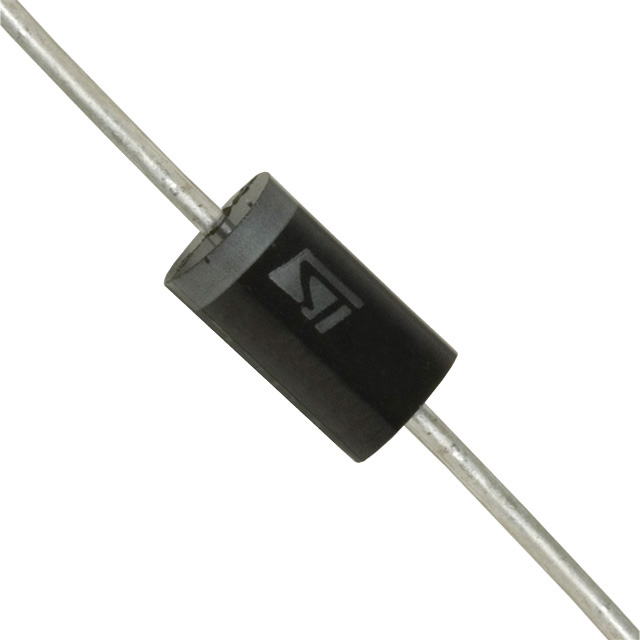

1.5KE350CARL - STMicroelectronics
Trans Voltage Suppressor Diode, 1500W, 299V V(RWM), Bidirectional, 1 Element, Silicon, DO-201
Technical Details
| Breakdown Voltage | 350V |
| Capacitance | 430pF |
| China RoHS | Non-Compliant |
| Clamping Voltage | 618V |
| Composition | Zener |
| Contact Plating | Tin |
| Diameter | 5.3mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | No |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 9.5mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 368V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 1mA |
| Min Breakdown Voltage | 332V |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 299V |
| Peak Pulse Current | 16A |
| Peak Pulse Power | 1.5kW |
| Peak Reverse Current | 5µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Power Rating | 1.5kW |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 332V |
| Reverse Standoff Voltage | 299V |
| RoHS | Compliant |
| Test Current | 1mA |
| Voltage Rating (DC) | 350V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Littelfuse | Production | ||
| onsemi | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Diotec | Production | ||
| STMicroelectronics | Obsolete | ||
| MCC | Production | ||
| Diodes Inc. | Obsolete | ||
| Rectron | Production | ||
| Central Semiconductor | Unknown |
